11. ETHERNET

733

11.5.2 Fast data server operation screen

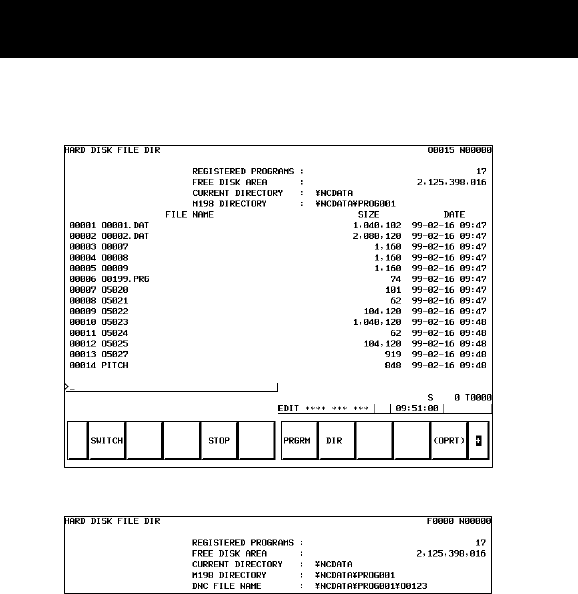

(1) Hard disk file directory screen

REGISTERED PROGRAMS

Displays the number of files stored in the current work directory.

FREE DISK AREA

Displays the amount of free space, in bytes, on the Fast data server

built–in ATA card.

CURRENT DIRECTORY

Displays the work directory of the Fast data server built–in ATA card.

M198 DIRECTORY

Displays the directory (folder) for a DNC operation by a subprogram call

(M198).

DNC FILE NAME

Displays the name of the file for which DNC operation is performed.

SIZE

Displays the file size, in bytes.

DATE

Displays the date and time at which the file was created.

[SWITCH]

Switches between normal display and detailed display.

[STOP]

Stops [F COPY], [F DEL], [PUT], [MPUT], [L–PUT], and [L–DEL]

operations.

[DISPLAY]

Updates the screen, using the file specified by the file number or name

as the first one.
