2.2.1 Initial setting (ZI01)

INPUT THE Z COORD WHICH DO NOT INTERFERE WITH WORKPIECE AND JIG.

ALLOY

STL

CARBON

STL

LOLED

STL

DCTIL

CAST

GRAY

CAST

INPUT

END

GUIDAN

SPE-

CIAL

ALMI-

NUM

STAINL

ESS

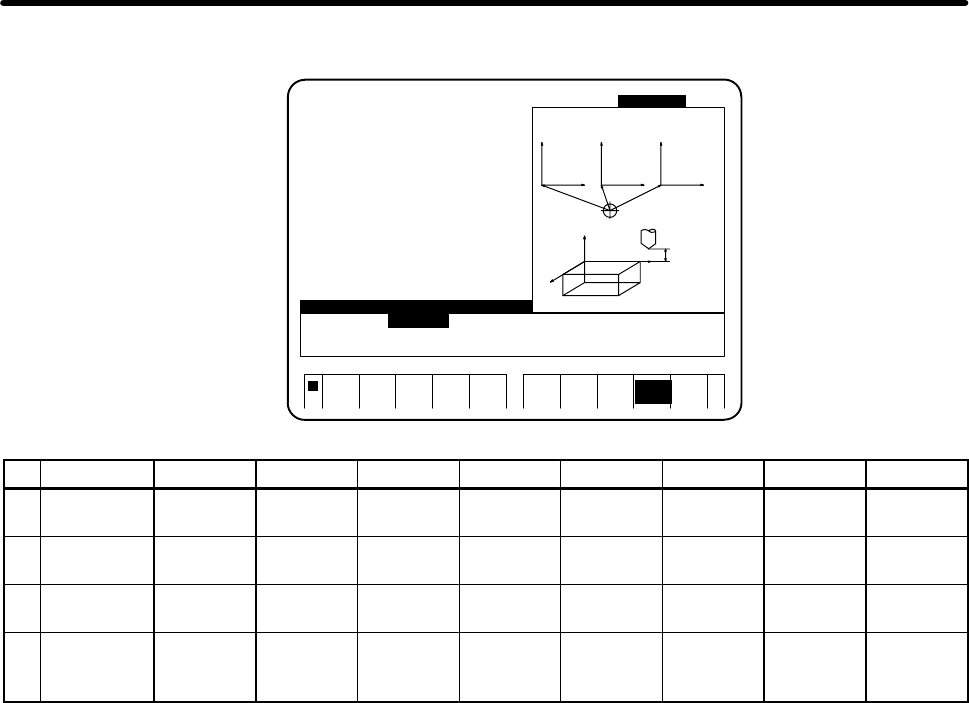

PROGRAM O1000(MANUAL–1) PAGE :01/ CREATING

MATERIAL : Q= X AXIS : X= * WORK SHAPE : C= *

COOLANT : M= Y AXIS : Y= * MAT X CO–ORD:YA= *

Z SAFTY LMT : I= Z AXIS : Z= * MAT Y CO–ORD :YB= *

COORDINATES : W= WORK CO 1 B AXIS : B= * MAT Z CO–ORD :YC= *

AUXILIARY :INITAL SETING 1/2

NO. CYCLE PROCESS TOOL NAME

MATERIAL,COOLANT AND Z SEFTY LMT

ARE SURE TO INPUT.

YY Y

MACHINE

ZERO

POINT

WORK COORDINATES

Z SAFETY LMT

WORK

CO 1

(G54)

WORK

CO 2

(G55)

WORK

CO 3

(G56)

...

1 2 3 4 5 6 7 8

Q MATERIAL GRAY

CAST

DCTIL

CAST

LOLEDSTL CARBON

STL

ALLOYA

STY

STAINL

ESS

ALMINUM SPECIAL

M COOLANT COOLNT

COOLNT

OFF M9

W COORDI-

NATE

WORK CO

SET

WORK

CO 1

WORK

CO 2

WORK

CO 3

WORK

CO 4

WWORK

CO 5

WORK

CO 6

Blank figure Rectangu-

lar paralle-

lepiped

Column

parallel to

Z–axis

1) Screen explanation

This screen is selected first within the program.

The data, which is common in the entire program, is set here.

2) Input item explanation

Q : MATERIAL

Input the material of the workpiece is input. The spindle speed of the tool in each machining and

the cutting feed rate are automatically decided here based on the input value.

Be sure to input.

M : COOLANT

Input the coolant used throughout the program. The value input here is used to decide automatical-

ly the coolant in each machining menu screen. Be sure to input.

I : Z SAFETY LMT

Input the Z coordinates which do not interfere with the workpiece and jig even when the tool moves

anywhere on the X and Y planes, using the reference work coordinates system. Be sure to input.

W : COORDINATE

Input the standard coordinate system for machining. As for the common safety point Z of the tool

exchange, (I), the coordinate system input here is used as a standard work coordinate system.

Work coordinate 1 (G54) is specified if there is no setting.

Do not specify work coordinate setting G92 when you use ”All Copy” in the program.

X : X AXIS, Y : Y AXIS, Z : Z AXIS, B : B AXIS

Input only at the time you specify work coordinate setting G92 using the coordinate system setting

(W). The process considers that the coordinate values of the position of the tool immediately before

the program is executed is the one that has been input.
