SUPER CAPi M Operators manual Page 155

Operators manual
B–63294EN/02 2. MACHINING MENU DESCRIPTIONS
– 145 –

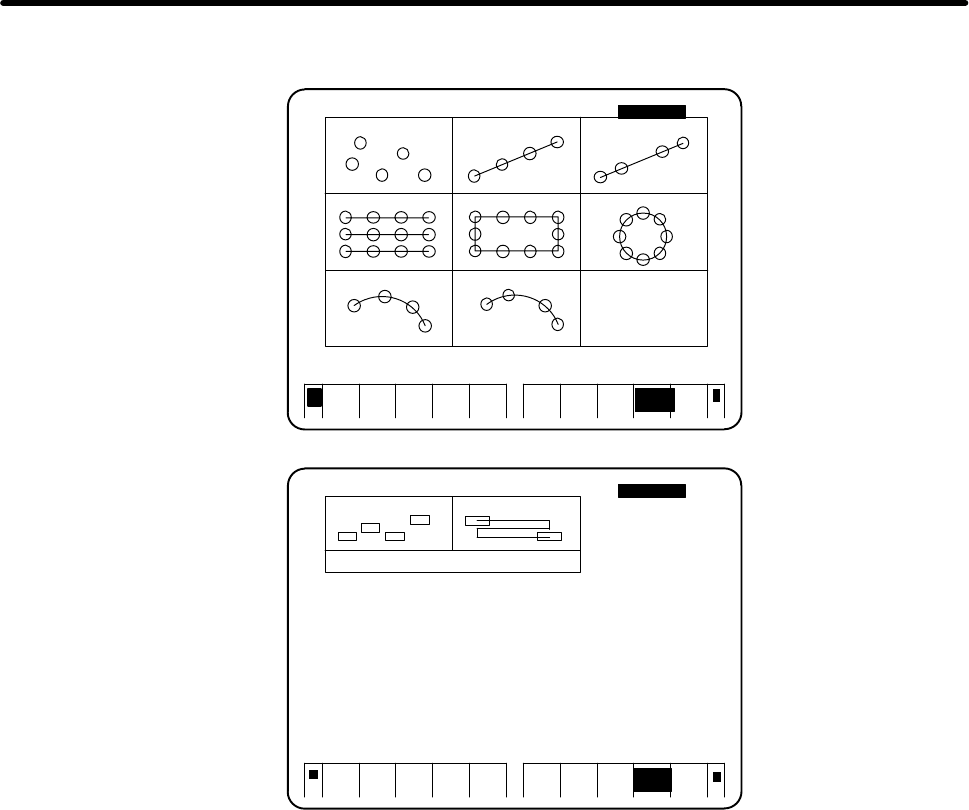

2.4 Hole Pattern
0807
SELECT SOFTKEY.
0504030201
<
PROCES
END
PROGRAM O1000 PAGE :01/ EDITING
GUIDAN
CE
06
01 POINTS 02 LINE SAM.SP
04 GRID
03 LINE DIF.SP
05 PARALLELOGRM
08 ARC DIFF SP
06 BOLT HOL CIR
TO BE CONTINE
NEXT PAGE.
07 ARC SAME SP
+
WHEN COPYING EACH MENU,SELECT EITHER ONE
IN ADVANCE.
SELECT FROM SOFT–KEYS.
1009
+
INSERT
END
PROGRAM O0030(MANUAL–1) PAGE :01/ EDITING
GUIDAN
CE
09 COPY RANDOM 10 COPY PATTRN
<
After data for hole machining menu ared input, this screen appears automatically.
1) POINTS
If hole position data are input one by one, X and Y coordinates of hole positions are input on this menu.
Up to 8 points can be input.
2) LINE–SAME SPACE
This is a menu for commanding the pattern of hole positions at same spaces on an arbitrary line.
3) LINE–DIFFER SPC
This is a menu for commanding the pattern of hole positions at different spaces on an arbitrary line.
4) GRID
This is a menu for commanding the pattern of hole positions at same spaces on a grid.
5) PARALLELOGRAM
This is a menu for commanding the pattern of hole positions on a parallelogram.
6) BOLT HOLE CIRCLE
This is a menu for commanding the pattern of hole positions at same spaces on an arbitrary circumference.
7) ARC–SAME SPACE
This is a menu for commanding the pattern of hole positions at same spaces on an arbitrary circular arc.
8) ARC–DIFFER SPACE
This is a menu for commanding the pattern of hole positions at different spaces on an arbitrary circular
arc.
