2. MACHINING MENU DESCRIPTIONS
– 298 –
(2) Explanation of input items
Q: ISLAND REQUIRED?
Following the specification of the pocket, select between the [YES] and [NO] soft keys to specify
whether island figures are to be specified.
When the [NO] soft key is pressed, followed by the [INPUT END] soft key, the data for the created con-
tour figure is stored in the program memory.
When the [YES] soft key is pressed, followed by the [INPUT END] soft key, the system switches to the
island outer wall preparation screen.
This item must always be specified.
4. Island outer wall preparation
1 2 3 4 5 6 7 8
H CUTTER
COMPENSA-
TION DIREC-
TION
LEFT
COM-
PENSA-
TION
RIGHT
COM-
PENSA-
TION
(1) Screen explanation

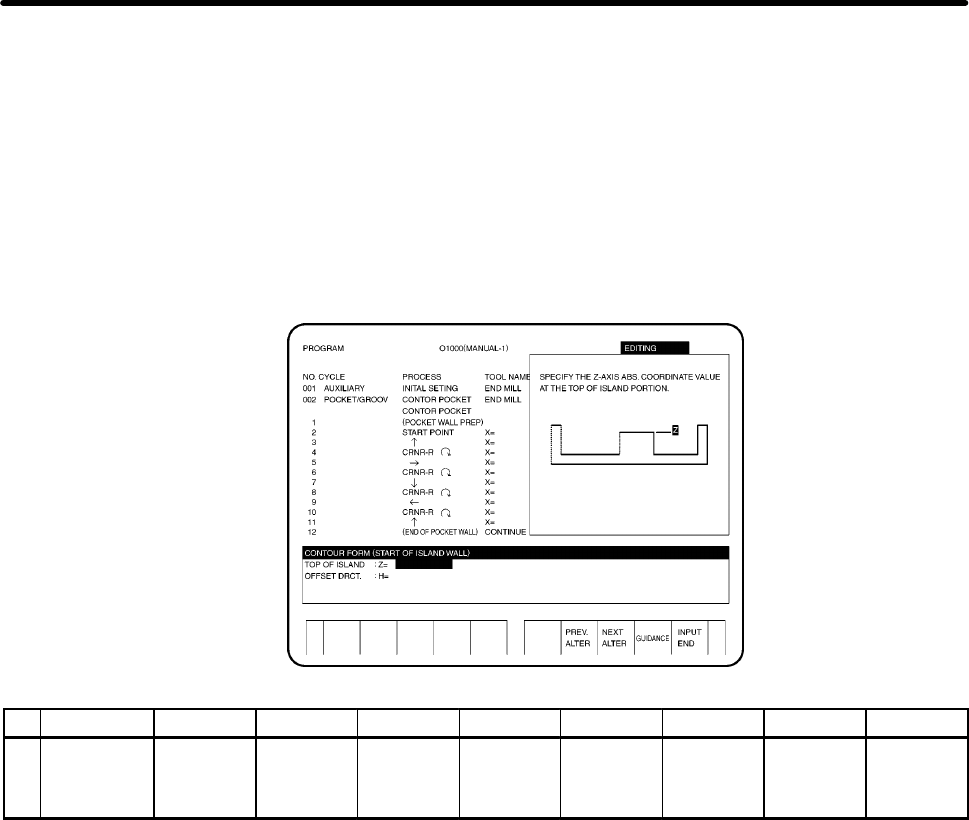

When the [YES] soft key is pressed on the pocket outer wall end screen, this screen appears.
On this screen, enter the common data necessary for island outer wall machining.
(2) Explanation of input items
Z: ISLAND TOP Z AXIS COORDINATE
Enter the coordinate of the Z point at the top of the island figure. If it is not entered, it is assumed to
be at the same height as the pocket outer wall.
For an explanation of other input items, refer to ”(2) Explanation of input items” of ”Pocket outer wall
preparation.”
