SUPER CAPi M Operators manual Page 36

Operators manual
B–63294EN/021. OVERVIEW OF Super CAPi M
– 26 –

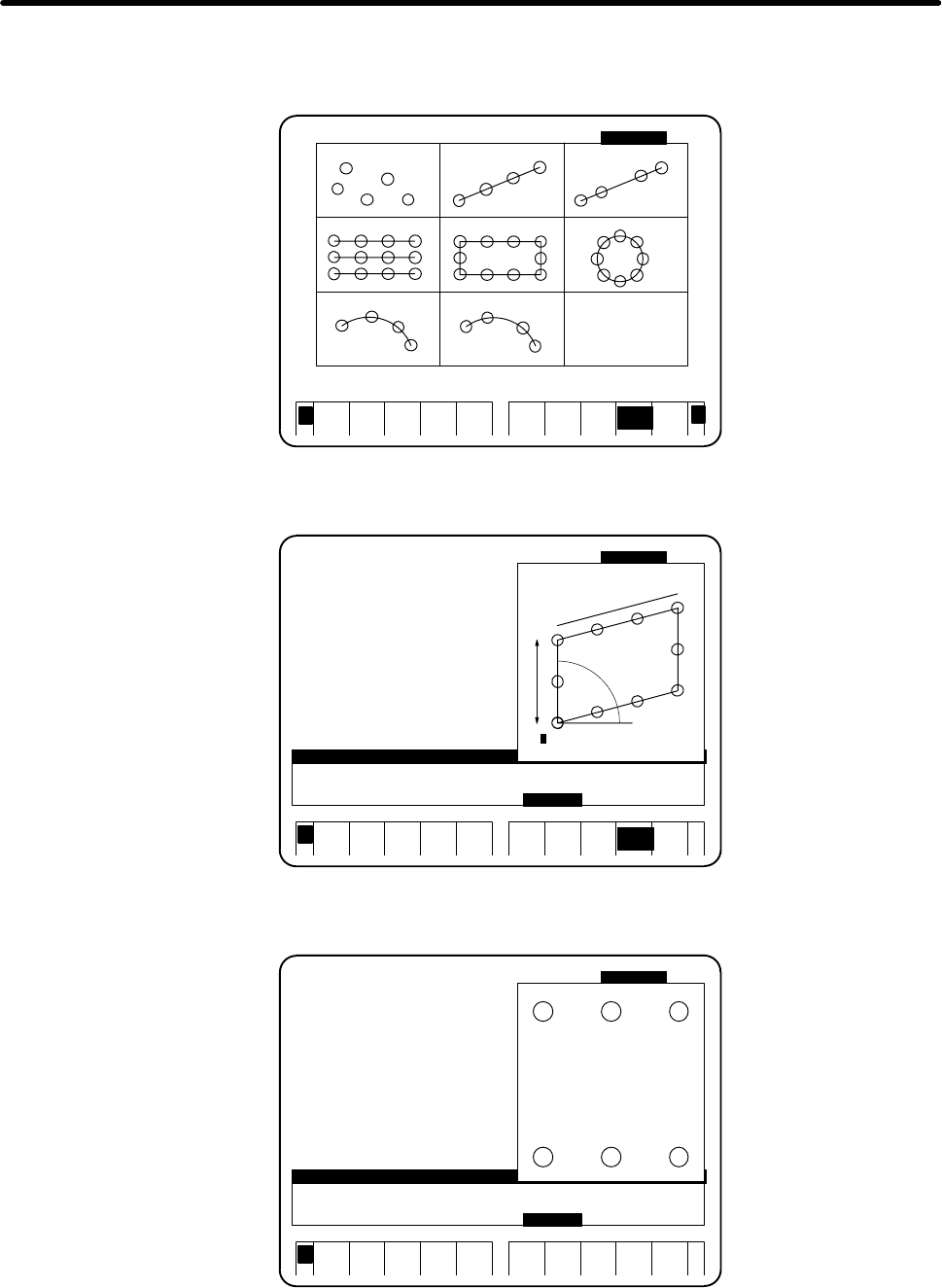

6. After checking that all data is correctly entered, press the soft key [INPUT END]. The system automati-
cally checks all the input data. When all the input data is correct, the drilling process is incorporated
into the program, and the hole position menu is automatically displayed on the screen.
0807
SELECT SOFTKEY.
0504030201
<
PROCES
END
PROGRAM O1000 PAGE :01/ CREATING
GUIDAN
CE
06
01 POINTS 02 LINE SAM.SP
04 GRID
03 LINE DIF.SP
05 PARALLELOGRM
08 ARC DIFF SP
06 BOLT HOL CIR
07 ARC SAME SP
TO BE CONTINUE
NEXT PAGE.
+
7. Press the soft key [PARALLEL DGRM], for example. The following screen is displayed. Enter the de-
sired data. (The data of the point to be omitted can also be specified.)
INPUT THE Z COORD WHICH DO NOT INTERFERE WITH WORKPIEOE AND JIG.
CHECK< INPUT
END
GUIDAN
CE
PROGRAM O1000 PAGE :01/ CREATING
COORDINATES : W= * V LENGTH : V= 75. O–V ANGLE : C= 90.
X CO–ORD : X= 0. U NUMBER : D= 3. OMIT POINT 1:YF= *
Y CO–ORD : Y= 0. V NUNBER : E= 2. OMIT–POINT 2 :YG= *
U LENGTH : U= 75. X–U ANGLE : A= OMIT=POINT 3 :YH= *
HOLE PATERN :PARALLELOGRM
NO. CYCLE PROCESS TOOL NAME
001 AUXILIARY INITAL SETING
002 FACING FACING PREP. FACE MILL
FACING PREP. FACE MILL
FACING SQUARE BIDIR
PROCESS END
003 HOLE TAPPING CENTER DRILL
TAPPING DRILL
TAPPING DRILL
TAPPING TAP
0.
U
V2
1
1
2
C
3
D
E
,Y
X
8. After entering all the desired data, press the soft key [CHECK]. According to the input data, the hole
position is drawn in the right window. The input data can be easily checked in the window.
RETURN<
PROGRAM O1000 PAGE :01/ CREATING
COORDINATES : W= * V LENGTH : V= 75. O–V ANGLE : C= 90.
X CO–ORD : X= 0. U NUMBER : D= 3. OMIT POINT 1:YF= *
Y CO–ORD : Y= 0. V NUNBER : E= 2. OMIT–POINT 2 :YG= *
U LENGTH : U= 75. X–U ANGLE : A= OMIT=POINT 3 :YH= *
HOLE PATERN :PARALLELOGRM
NO. CYCLE PROCESS TOOL NAME
001 AUXILIARY INITAL SETING
002 FACING FACING PREP. FACE MILL
FACING PREP. FACE MILL
FACING SQUARE BIDIR
PROCESS END
003 HOLE TAPPING CENTER DRILL
TAPPING DRILL
TAPPING DRILL
TAPPING TAP
0.
