SUPER CAPi M Operators manual Page 410

Operators manual

Page of 462

/ 462

B–63294EN/02

2. MACHINING MENU DESCRIPTIONS

– 400 –

2.14 Direct Operation of C.A.P. Program

2.14.1 General

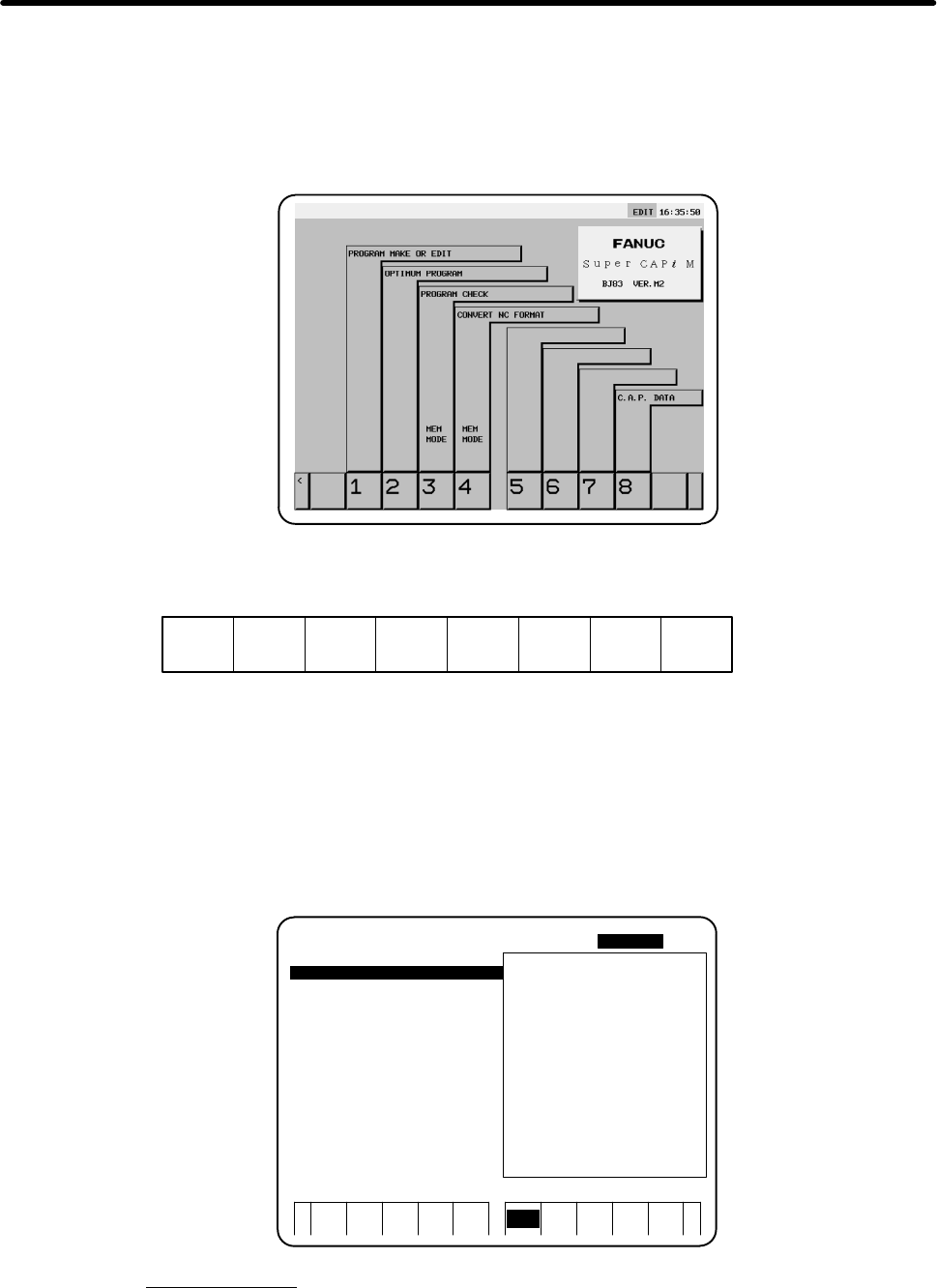

The menu called ”6 PROGRAM EXEC” is added to the basic menu screen.

Created machining program can be executed directly from the conversational screen of this menu.

To add ”PROGRAM EXEC” to the basic menu screen, the following parameter must be set:

#7 #6 #5 #4 #3 #2 #1 #0

9120 EXM

The PROGRAM EXEC menu is:

EXM = 0: Not displayed.

= 1: Displayed.

2.14.2 Screen configuration

(1) ABSOLUTE POSITION DISPLAY

When the [ABS COOD] soft key is pressed on the PROGRAM EXEC screen, the following screen is dis-

played.

PROGRAM O1000 N00001 (TEST PROGRAM)

EXECUTION

BOLT HOL CIR

PROCESS END

MEM STOP ***** ***** *****

DEST

TO GO

MODALNC

FORMAT

BLOCK

< ABS

COOD

NO. CYCLE PROCESS TOOL NAME TOOL NO N–DIA FEED SPINDL

001 AUXILIARY INITIAL SETTING

002 FACING FACING PREP. FACE MILL 73

FACING PREP. FACE MILL 71

FACING SQUARE BIDIR

PROCESS END

003 HOLE TAPPING CENTER DRILL 3

TAPPING TAP 25

HOLE PATERN PARALLELOGRAM

PROCESS END

REL

COOD

ALL

COOD

004 HOLE DRILLING CENTER 73

DRILLING DRILL 71

HOLE PATRON ARC SAME SP

005 SIDE CUTTING SIDE PREP. END MI 3

SIDE PREP. END MI 15

SIDE CUTTING SQUARE O–SIDE

PROCESS END

(ABS–COOD)

X– 12345. 678

Y 0. 000

Z 0. 000

U 0. 000

M46

D0 H0

F0(MM/MIN)

Screen Explanation

(a) Program Number Display

A program number, a sequence number, and a comment data are displayed.
