SUPER CAPi M Operators manual Page 320

Operators manual
B–63294EN/02
2. MACHINING MENU DESCRIPTIONS
– 310 –
4. When (B), (Q), and (Y) are programmed

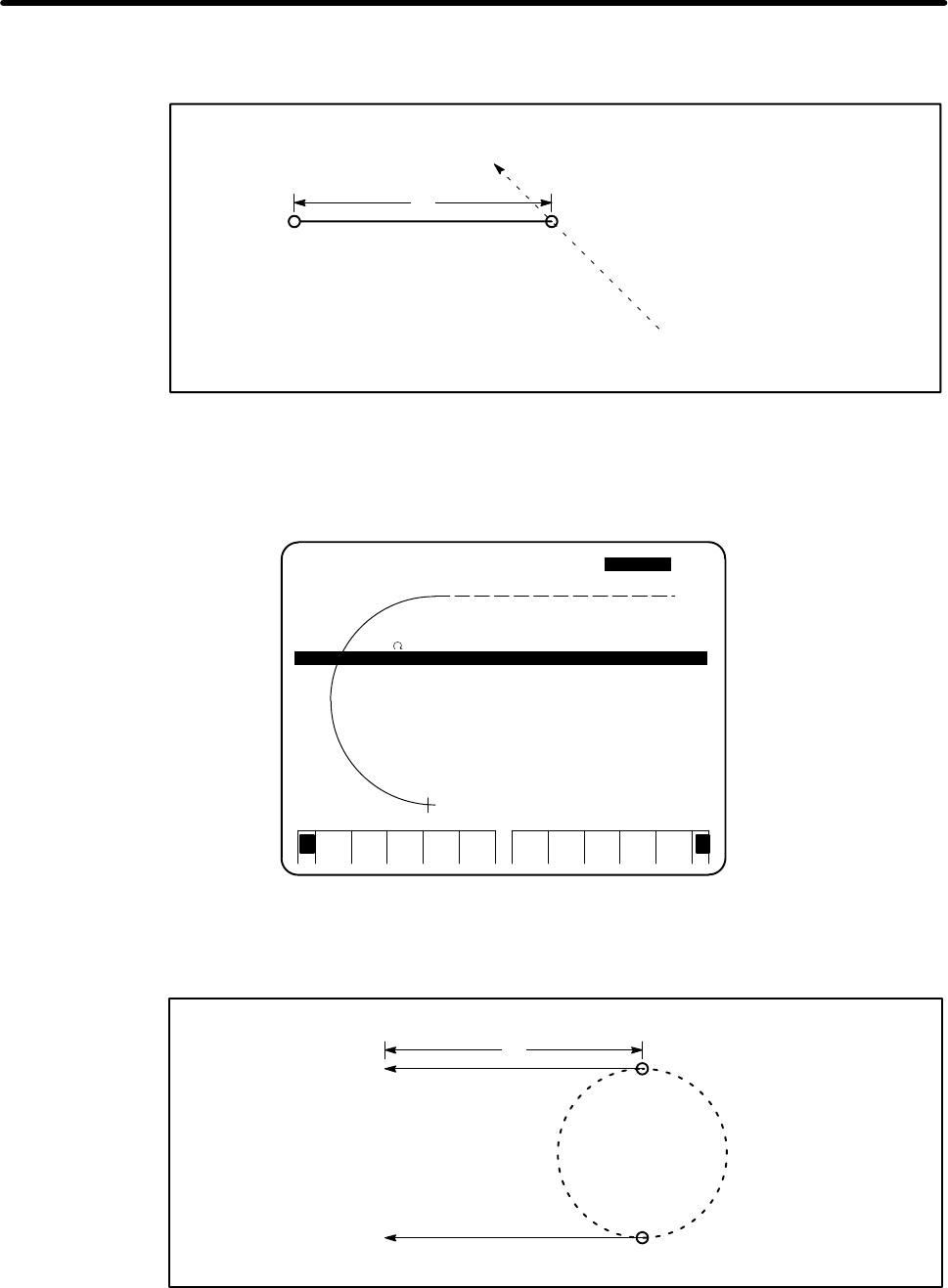

⇒ The intersection between the current and preceding figure blocks is calculated.
Q
1.
2.
(End point of 2.)
(End point of 1., start point of 2.)
(c) When the preceding figure block is pending and the contact point is specified, only an arc can be speci-
fied as the preceding figure block.
1. When (B) is programmed
⇒ The intersection between the current and preceding figure blocks is calculated.
5
INSERT
DEPRESS THE SOFTKEY,SELECT EDITTING (INSERT,DELETE OR ALTER
DELETE
<
PROGRAM O6000 PAGE :01/ CREATING
NO. CYCLE PROCESS TOOL NAME TOOL NO N–DAI FEED SPINDL
4 → X= Y=
ALTER
002 POCKETTING CONTOR POCKETEND MILL 62. 4.000 57. 3180.
1 (START OF POCKET WALL)
2 START PT. X= 0. Y= 0.
3 X= 0. Y= 100. R= –50.
001 AUXILIARY INITAL SETING
2. When (B) and (Q) are programmed
⇒ As with 1. above, the contact point selection request screen is displayed. Select a desired
contact point on the screen.
Q
1
2
Previous page
Next page
