SUPER CAPi M Operators manual Page 71

Operators manual
B–63294EN/02 1. OVERVIEW OF Super CAPi M
– 61 –

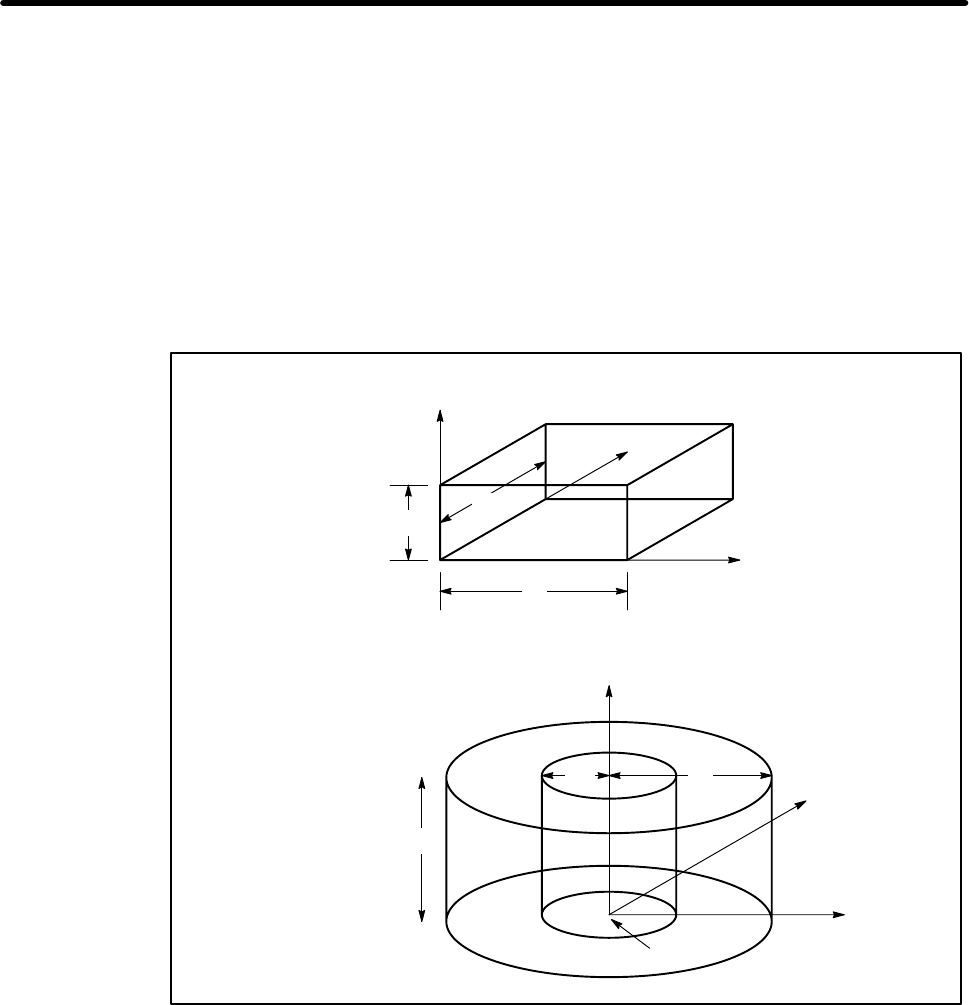

(1) Blank figures
Up to two types of blank figures can be set:
– Rectangular parallelepiped
– Column/cylinder (parallel to the Z axis)
(2) Blank origin (X,Y,Z)
This parameter sets the coordinates (X,Y,Z) of the reference position of a blank in the workpiece coor-
dinate system. When the blank is a rectangular parallelepiped, its reference position is the corner fac-
ing the negative direction along each axis. When the blank is a column or cylinder, its reference posi-
tion is the center of the base.
(3) Blank dimensions (I,J,K)
This parameter sets the dimensions of a blank.
Z
Y
X
(X,Y,Z)
J
I
K
Z
Y
X
IJ
K
(X,Y,Z)
Rectangular parallelepiped
Column/cylinder (parallel to the Z axis)
(4) Tool radius
This parameter sets the tool radius. Usually, this parameter is determined automatically and need not
be set for a machining program created in the conversational mode. Note that this parameter applies
only when the tool figure is a cylinder.
(5) Tool tip distance
This parameter sets the distance (usually 0) between the programmed point and the tool tip. Usually,
this parameter is determined automatically and need not be set for a machining program created in
the conversational mode.
