2.12.2.7 Outer thread (ZU07)

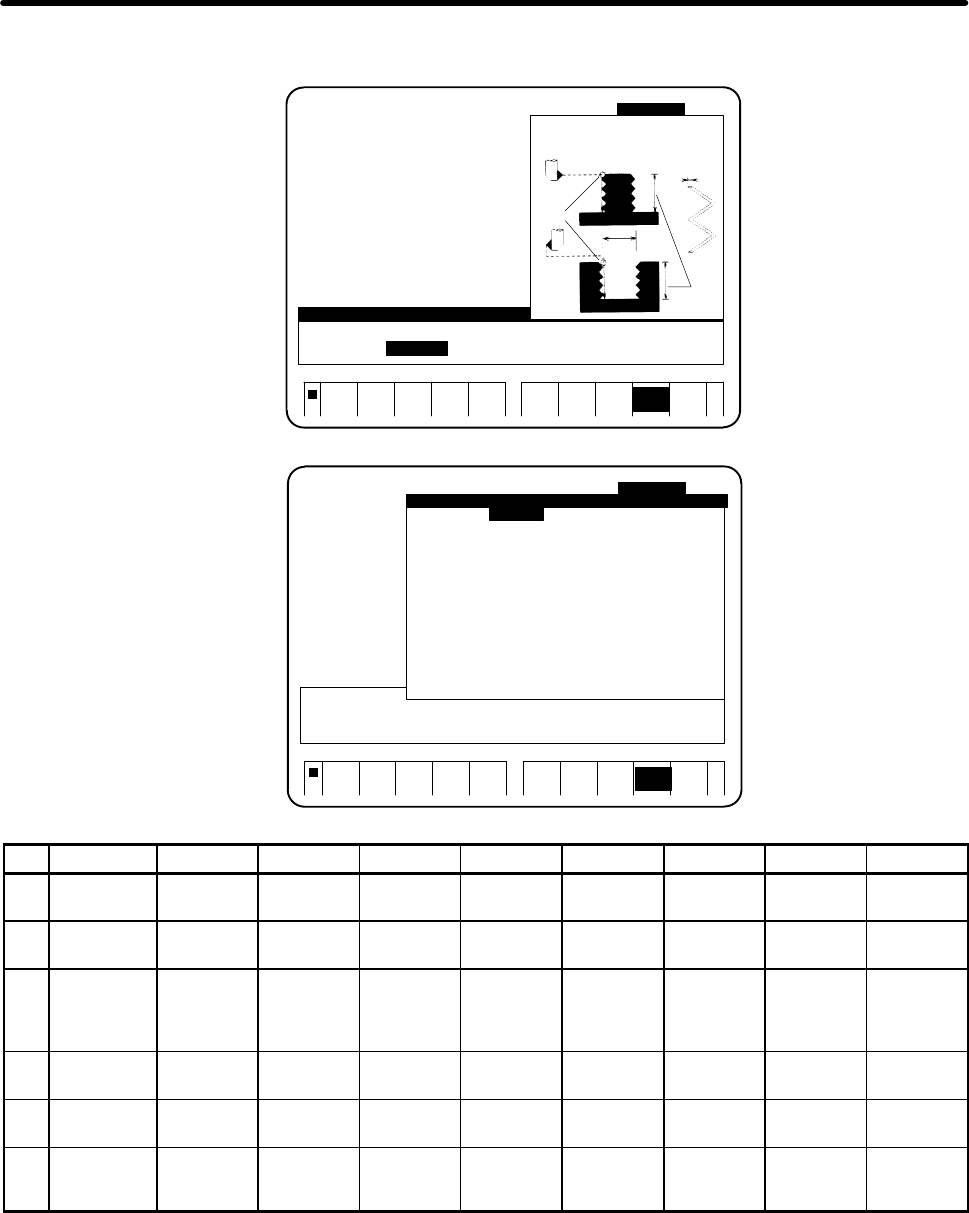

INPUT THE Z COORD OF THE UPPER SURFACE OF THE WORKPIECE.
PROCES
WINDOW
F.S.
AUTO
INPUT
END
GUIDAN
CE
TOOL
INFORM
PROGRAM O0010(U–AXIS DEND) PAGE :01/ CREATING
U–AXS MACHIN :THREAD PREP.
NO. CYCLE PROCESS TOOL NAME
001 AUXILIARY INITAL SETING
MAX NUM.OF TOOLS–10
GROUP COPY :YB= UNUSED U–DIRC.DIA. : X= TOOL ID NO. : T=
COORDINATES : W= * FINISHU : U= 0.
WK SURFACE :YA= LEAD : I=
CUT DEPTH : V= CUT–SPIN–SPD:YF= CUT SPEED
T
X
V
(R,Z)
U
<
GUIDAN
CE
U–AXS MACHIN :THREAD
GROUP COPY :YB= UNUSED U–DIRC.DIA. : X= 100. TOOL ID NO. : T= 151.
COORDIANTES : W= * FINISHU : U= 0.
WK SURFACE :YA= 0. FINISHZ : Y= 5.
CUT DEPTH : V= 30. CUT/SPIN–SPD:YF= CUT SPEED
001 AUXILIARY INI
NO. CYCLE PRO
INPUT THE TOOL ID NUMBER OF THE TOOL TO BE USED.
WINDOW
CHANGE
F.S.
AUTO
INPUT
END
TOOL
INFORM
PROGRAM O0010(U–AXIS DEMO) PAGE :01/ CREATING
CUTTING DATA1/1 PROCESS1
TOOL ID NO. T=
TOOL NAME Q=OUT–THREAD
PROCESS B= *
H OFFSET NO. H= 151.
D OFS./DIA. D= 151.
CUT PT. U/R R= *
CUT PT. Z/Z Z= *
DWELL E= *
COOLANT M= COOLNT M7
CUT/SPIN–SPD S= 100.
FEED RATE F= *
CUT–DPTH K= 4.
S–DRCT. YD= NORMAL
151.
<
1 2 3 4 5 6 7 8
YB GROUP
COPY
UNUSED A–GROUP B–GROUP C–GROUP
W COORDI-
NATES
UNUSED WORK CO
1
WORK CO
2
WORK CO
3
WORK CO
4
WORK CO
5
WORK CO
6
YF SURFACE
SPEED/
ROTATION-
AL SPEED
SURFACE
SPEED
ROTA-
TIONAL
SPEED
B PROCESS HOLE MA-
CHINING
M COOLANT COOLANT
M7
COOLANT
M8
NONE
YD DIRECTION
OF ROTA-
TION
FORWARD REVERSE
(1) Screen explanation
This menu is always selected first when outer threading of an arbitrary figure is to be performed using the
contour function.
Input the Z–direction position data necessary for the contour program and the data related to the tool.
When a tool ID No. (T) is input, the machining process is automatically determined with the previous tool.
There is one machining process, that is, hole machining. Do not, however, specify hole machining be-
cause a hole tool cannot be specified.
