2.7.8 Cont pocket prep (ZP08)
POCKETTING :CONTOR POCKET
INPUT THE Z COORD OF CUTTING FEED STARTING POINT FOR MACHINING.
PROCES
WINDOW
F.S.
AUTO
< INPUT
END
GUIDAN
CE
TOOL
INFORM

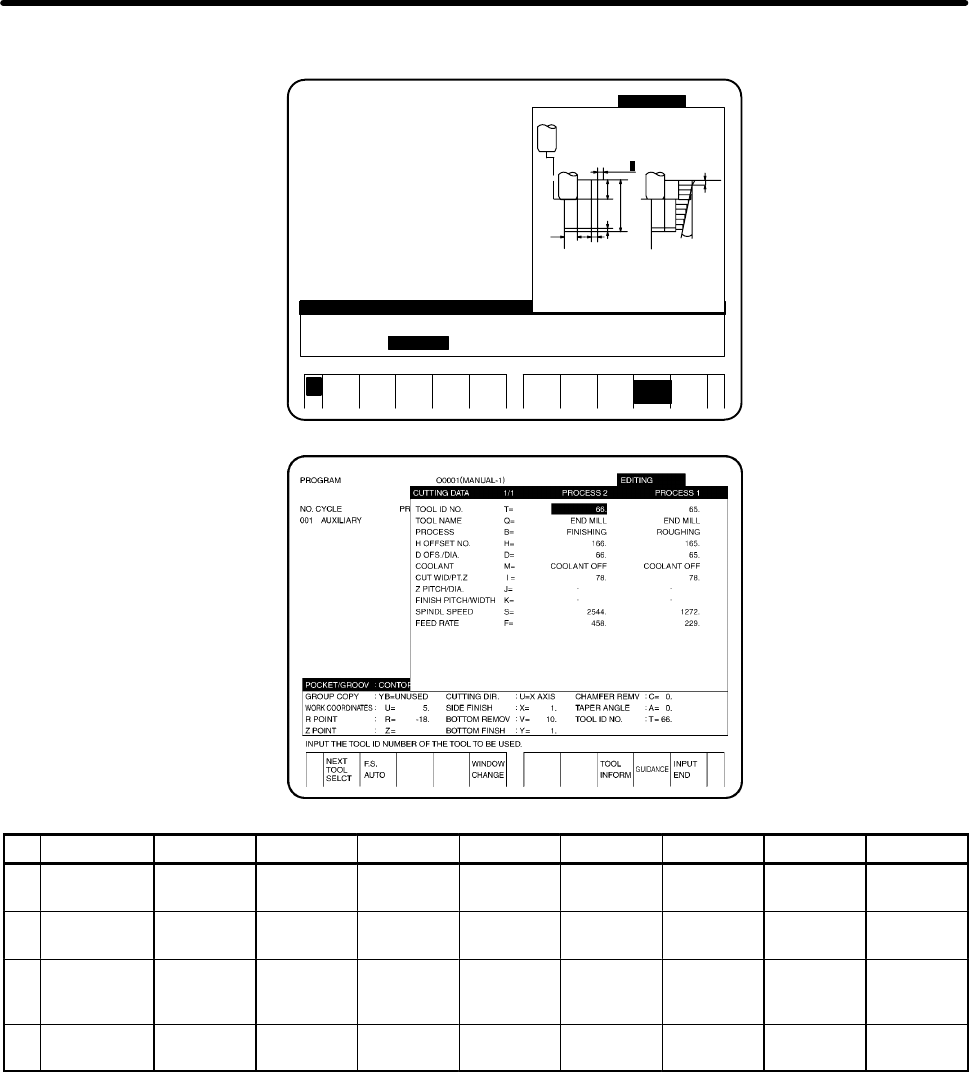

PROGRAM O1000 PAGE :01/ EDITING
GROUP COPY :YB= UNUSED CUTTING DIR. : U= X AXIS BOTTOM PITCH : J=
COORDINATES : W= * CUT WID.<70%: I= 70. BOTTOM FINSH : Y= 0.
R POINT : R= SIDE FINISH : X= 0. FINISH PITCH : K= *
Z POINT : Z= BOTTOM REMOV : V= CHAMFER REMV : C= 0.
NO. CYCLE PROCESS TOOL NAME
001 AUXILIARY INITAL SETING
X
Y
T
Z
J
A
C
MAX NUM.OF TOOLS–3
70%
V
K
R
1 2 3 4 5 6 7 8
YB GROUP
COPY
UNUSED A–GROUP B–GROUP C–GROUP
U CUTTING
DIR.
X–AXIS Y–AXIS SPIRAL
B PROCESS ROUGH-
ING
FINISH CHAMFER-
ING
HOLE MA-
CHINING
HOLE
(PECK)
SPIRAL
BOTTOM
FINISH
SPIRAL
SIDE FIN-
ISH
M COOLANT COOLANT
M7
COOLANT
M8
NONE
1) Screen description
When performing pocketing of arbitrary figure, always select this menu first of all. (No ”Pocketting prep.”
is selected in the case of contour function.)
Input the position data needed for contour program in Z direction and data related to tools. The pre–tool
and machining process are set automatically by ”TOOL ID NO.”. The machining process consists of a
There are a maximum of seven machining processes, namely, the ”ROUGHING”, ”FINISHING”, ”Chamfer-
ing,” HOLE PREPARATION, HOLE (PECK), SPIRAL BOTTOM FINISH, and SPIRAL SIDE FINISH. SPI-
RAL BOTTOM FINISH, SPIRAL SIDE FINISH, and FINISHING cannot be specified at the same time. The
machining methods that can be specified differ depending on the cutting direction.
It is possible to perform taper cutting if the cutting direction is the X or Y direction.
