B–63294EN/02

2. MACHINING MENU DESCRIPTIONS

– 138 –

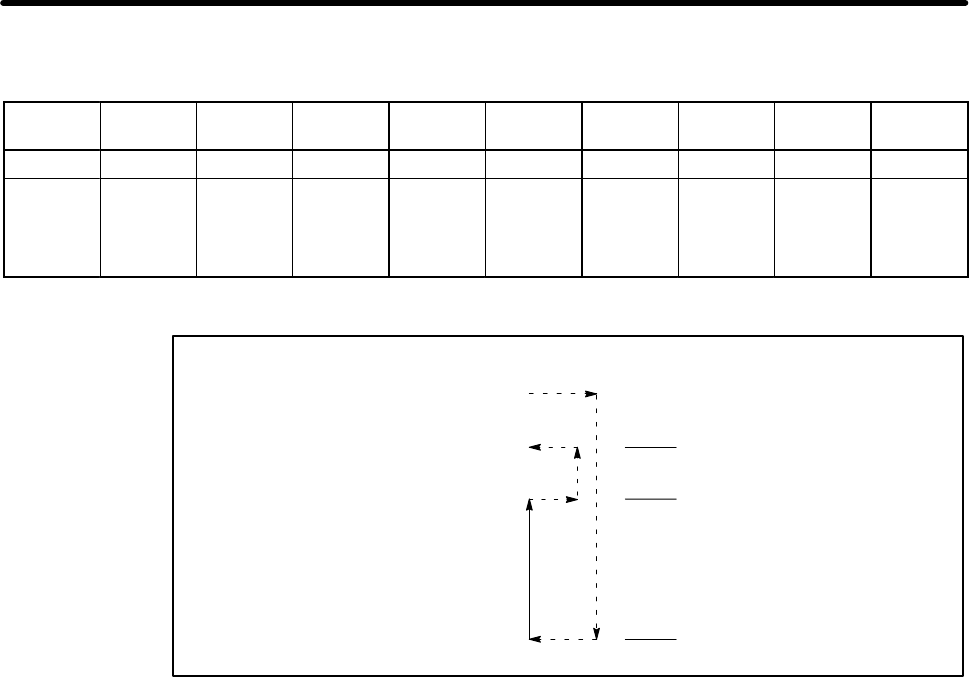

3) Movement explanation

The following machining cycle is executed using the tool that has been set.

Machining

cycle

Center drill Drill Ta p Reamer Bore Back bore End mill Face mill Chamfer

Modal D D Impossible D BR BB D Impossible D

Canned

cycle

G81 G73

G81

G82

G83

Impossible Impossible G73

G76

G81

G85

G86

G87 Impossible Impossible G81

a) Movement of the backboring (BB) cycle

Dwell

M03

M19

M03

1. The fixed–position spindle stop (M19) is executed after the excape in XY direction.

2. Rapid traverse up to point R

3. Movement to a specified position returning to the XY direction and rotating the spindle

4. Cutting feed up to point Z

5. Dwell at point Z

6. Escape the XY direction after the fixed–position spindle stop (M19)

7. Rapid traverse from point Z to point I

8. Rotation of the spindle at point I

b) Movement of the drilling (D) cycle

Refer to 2.3.1 3).

c) Movement of the boring (BR) cycle

Refer to 2.3.3 3).

d) Canned cycle operation

For canned cycle operation, refer to the operator’s manual of the NC.
