2. MACHINING MENU DESCRIPTIONS
– 296 –
F : Z AXIS FEEDRATE
Feedrate assumed up to the machining Z point. This item must always be specified.
The initial value can be set for parameter No. 9406.
9406 Initial value of the Z axis feedrate
Unit of setting : 1/1000 mm
1/10000 inch
2. Specification of the machining start point
(1) Screen explanation
When the [INPUT END] soft key is pressed on the contour pocketing outer wall preparation screen, this
screen is always selected.

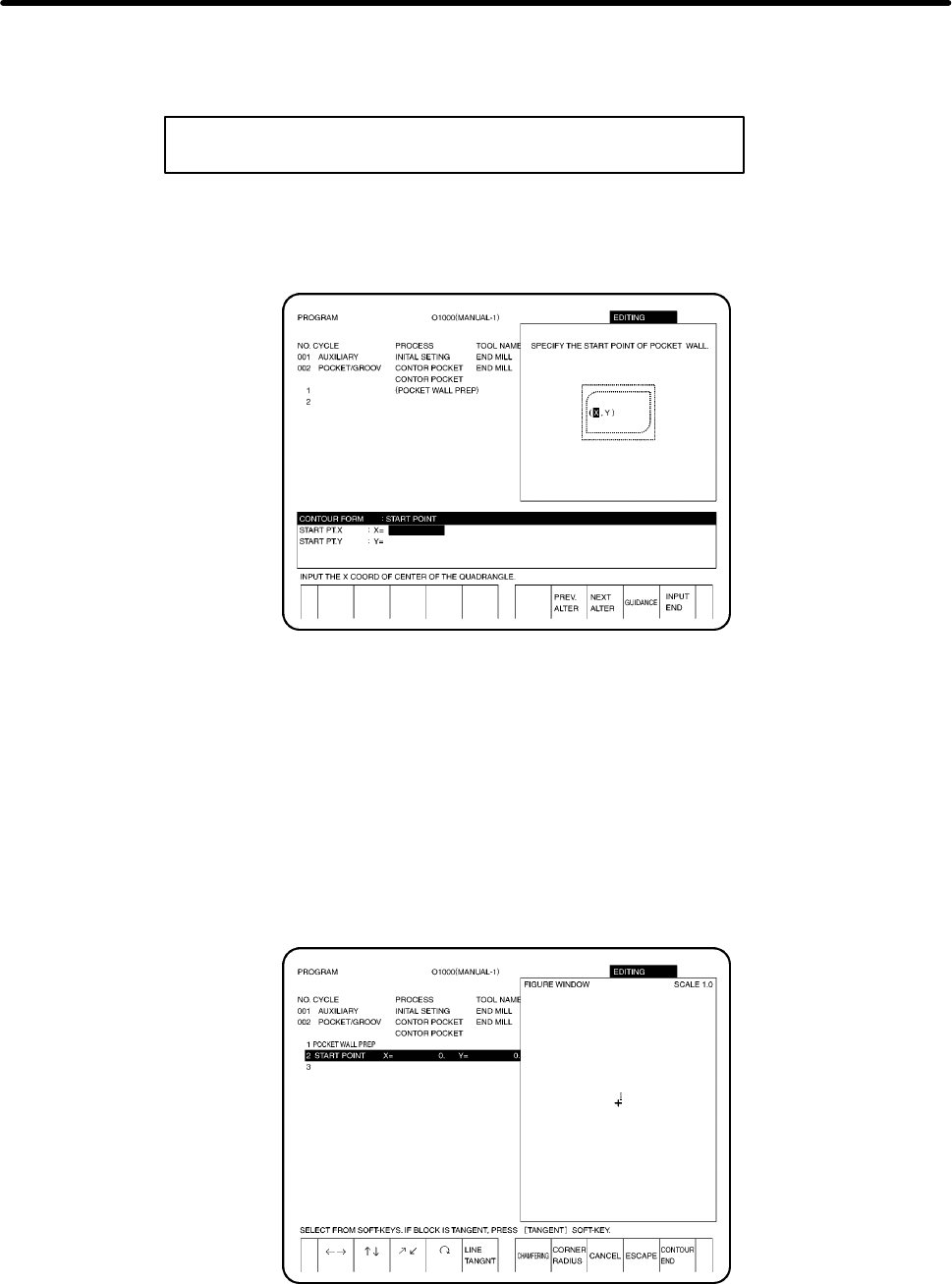

On this screen, enter the machining start point of a contour pocketing figure.
(2) Explanation of input items
X : START POINT X COORDINATE
Y : START POINT Y COORDINATE
Enter the absolute X and Y coordinates of the machining start point of a contour pocketing figure.
After all the necessary data for the machining start point has been entered, pressing the [INPUT END]
soft key causes the system to switch to the figure selection screen shown in the figure below.
When the rightmost soft key [+] is pressed on the screen shown in the figure above, the soft key display
changes to that shown in the figure below.
