2. MACHINING MENU DESCRIPTIONS
– 391 –
2.13.2.3 Data Setting

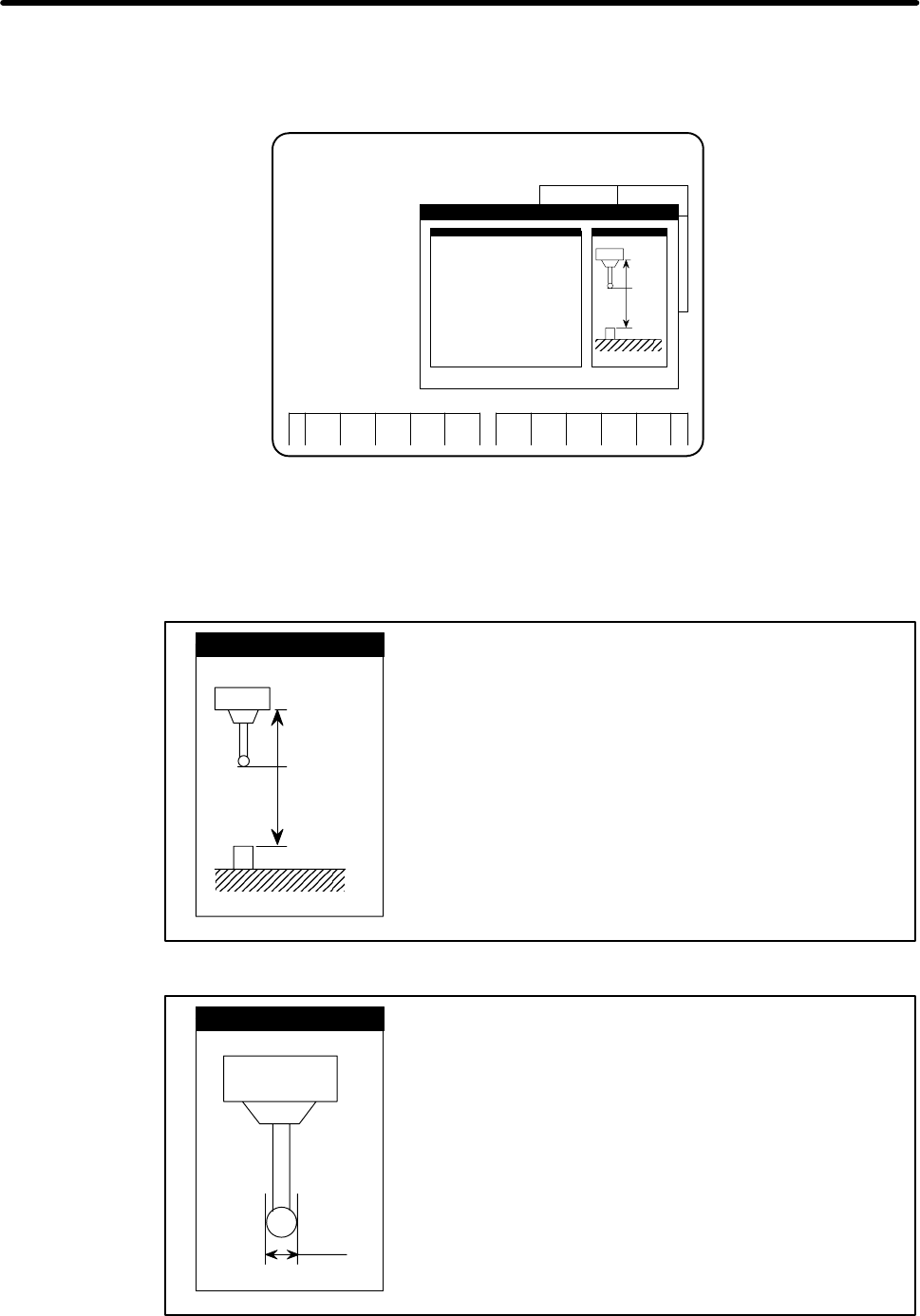

When the softkey [DATA SETING] is pressed at the setup guidance main menu, the screen shown
below is displayed.
CENTERING
WORK COORDI-
NATE
INPUT TOUCH SENSOR COMPENSATION. >
< END
PROGRAM O5002 (TEST2) PAGE: 01/ SETUP
NO. CYCLE PROCESS TOOL NAME TOOL NO N–DIA FEED SPINDL
001 AUXILIARY INITAL SETING
002 FACING FACING PREP. FACE MILL 73
CONTOR PREP. FACE MILL 71
FACING SQUARE BIDIR
PROCESS END
003 HOLE TAPPING CENTER DRILL 3
TAPPING DRILL 15
TAPPING TAP 25
HOLE PATERN PARALLELOGRM
PROCESS END
004 AUXILIARY END OF PROG.
TOOL MEASURE
TOOL OFFSET
SETTING ITEM 1/2
PREPARE DATA 1/2
GUIDANCE
H COMPENSATION = __ 35.000
DIAMETER = 5.000
SHIFT X = 0.001
Y = 0.002
RETURN AMOUNT = 3.000
MIN. MOVEMENT = 5.000
OVER RUN X = 2.502
Y = 2.503
Z = 0.501
ADDITIONAL MOVE = 30.000
MEASURING FEED = 10.000
–COMP.
+COMP.
Operation
(1) Select setting item with the cursor key. Change page with page up/ down key.
(2) Set items with softkey, or numerical input data and [INPUT] key.
(3) By pressing softkey [END] or [<] , the setup function returns to the main menu.
1) TOUCH LENGTH COMPENSATION
+COMP.
GUIDANCE
-COMP.
Contents
Touch sensor length compensation setting.
2) TOUCH SENSOR DIAMETER
GUIDANCE
Diam.
Contents
Touch sen sordiame tersetting.
Previous page
Next page
