2. MACHINING MENU DESCRIPTIONS

– 280 –

(3) Explanation of operation

(a) For CIRCUMSCRIBED CIRCLE CLOCKWISE/CIRCUMSCRIBED CIRCLE COUNTERCLOCKWISE

Registration in memory

ZY10 (start point) X_Y_

X: Machining start point coordinate X

Y: Machining start point coordinate Y

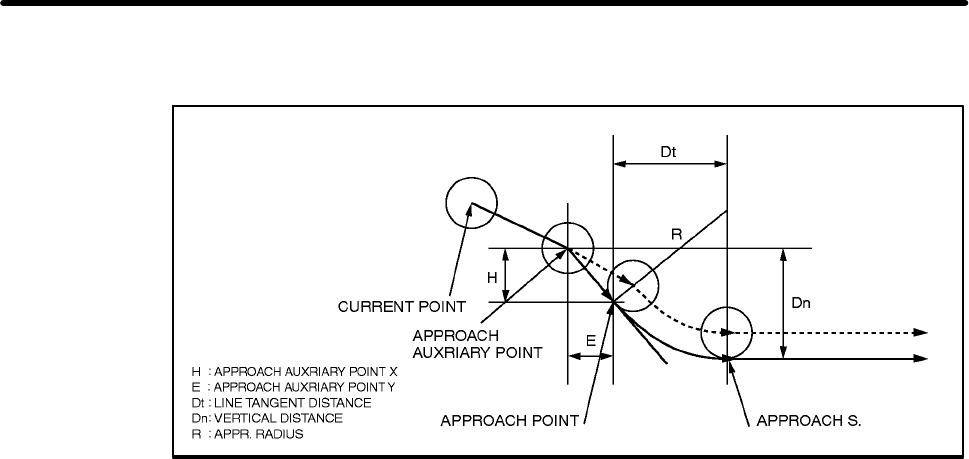

ZY14 (approach) X_Y_R_E_H_A_D_F_

X: Approach point coordinate X

Y: Approach point coordinate Y

R: Approach radius

E: Auxiliary approach point coordinate X

H: Auxiliary approach point coordinate Y

A: Approach type

D: Cutter compensation

F: Approach rate Z

Results of outputting NC statements

G00G17G90X***Y***; Rapid traverse to the auxiliary approach point

Z#6993; Rapid traverse to the Z axis approach point

G41/G42X***Y***D***; Rapid traverse to the approach point with compensation per-

formed

G01Z#6994F***; Cutting feed to the Z axis cutting point

G02/G03***Y***R***F***; Cutting feed to the machining start point
