B–63294EN/021. OVERVIEW OF Super CAPi M

– 60 –

6. Cross–Sectional View

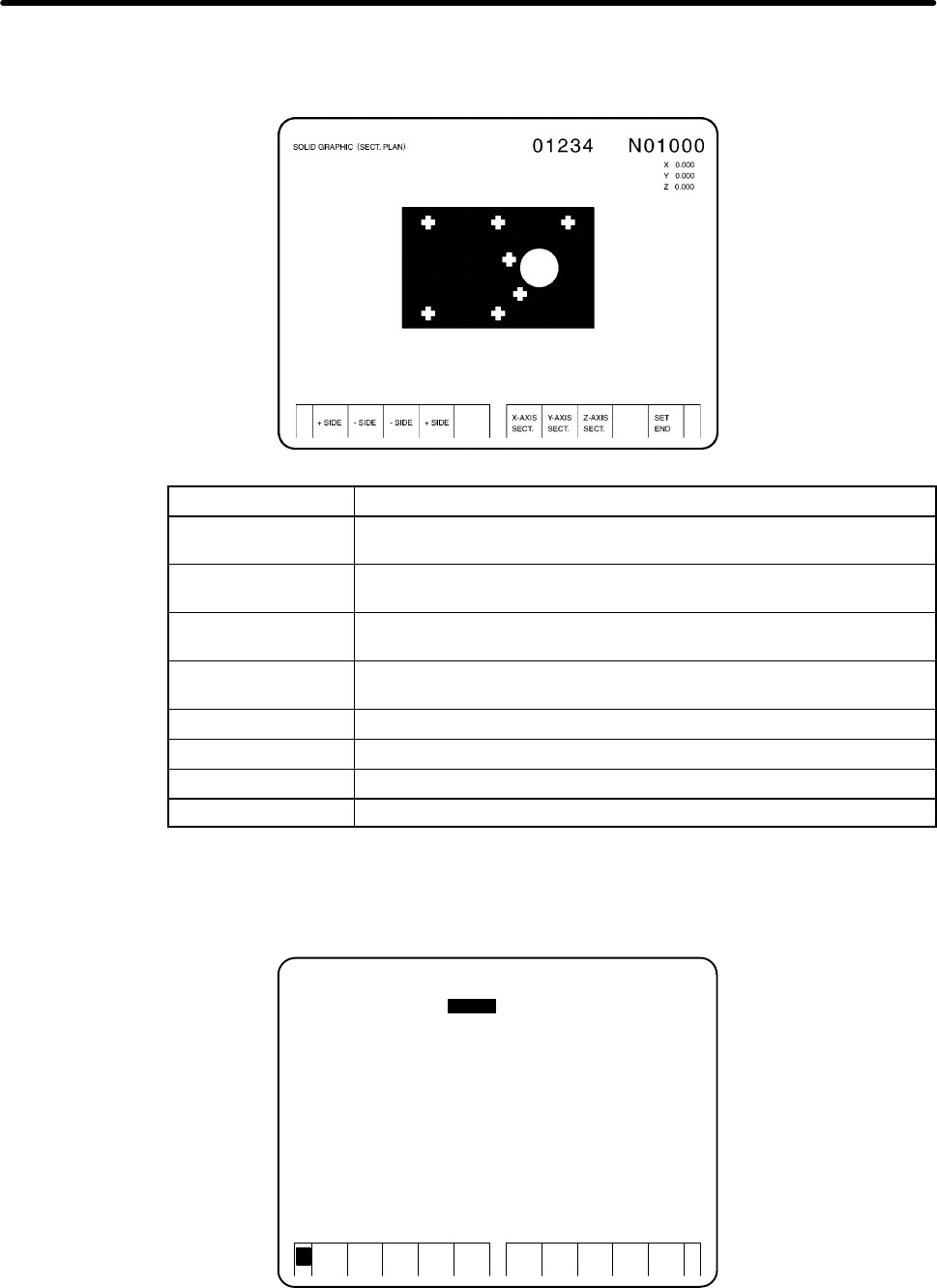

To display a cross–sectional view of a workpiece, press the [SECT.PLAN] soft key on the animated simula-

tion screen. The following soft keys appear:

Soft key Meaning

+SIDE+ Moves a plane in the positive direction when it is on the positive side of

the selected plane.

+SIDE– Moves a plane in the negative direction when it is on the positive side of

the selected plane.

–SIDE+ Moves a plane in the positive direction when it is on the negative side of

the selected plane.

–SIDE– Moves a plane in the negative direction when it is on the negative side of

the selected plane.

X–AXIS SECT. Selects a plane perpendicular to the X–axis (YZ plane).

Y–AXIS SECT. Selects a plane perpendicular to the Y–axis (ZX plane).

Z–AXIS SECT. Selects a plane perpendicular to the Z–axis (XY plane).

SET END Returns to the original screen.

The units in which the cross section is moved can be specified with parameter No. 6515.

7. Animated simulation drawing parameters

Press [GRAPH PARAM] to change the animated simulation drawing parameters.The following drawing

parameter screen appears:

COLUM

Y–PARA

COLUM

X–PARA

COLUM

Z–PARA

RECT.

PARA.

SET

END

SOLID GRAPHIC PARAMETER

BLANK FORM = COLOR VERTICAL = BLUE

BLANK POSITION X= SIDE = SKY BLUE

Y= RIDGE = YELLOW

Z= START SEQ. NO. = 0

BLANK DIMENSION I= END SEQ. NO. = 0

J= ANIME SPEED = 0

K= VERTCAL AXIS = 2 AXIS

TOOL ATTACHMENT =

TOOL RADIUS =

TOOL LENGTH =

–75.000

–50.000

150.000

100.000

53.000

5.000

0.000

–30.000

After setting required parameters, press [SET END]. The screen display returns to the original execution

screen.

Each parameter has the meaning described below.
