SUPER CAPi M Operators manual Page 127

Operators manual
B–63294EN/02
2. MACHINING MENU DESCRIPTIONS
– 117 –

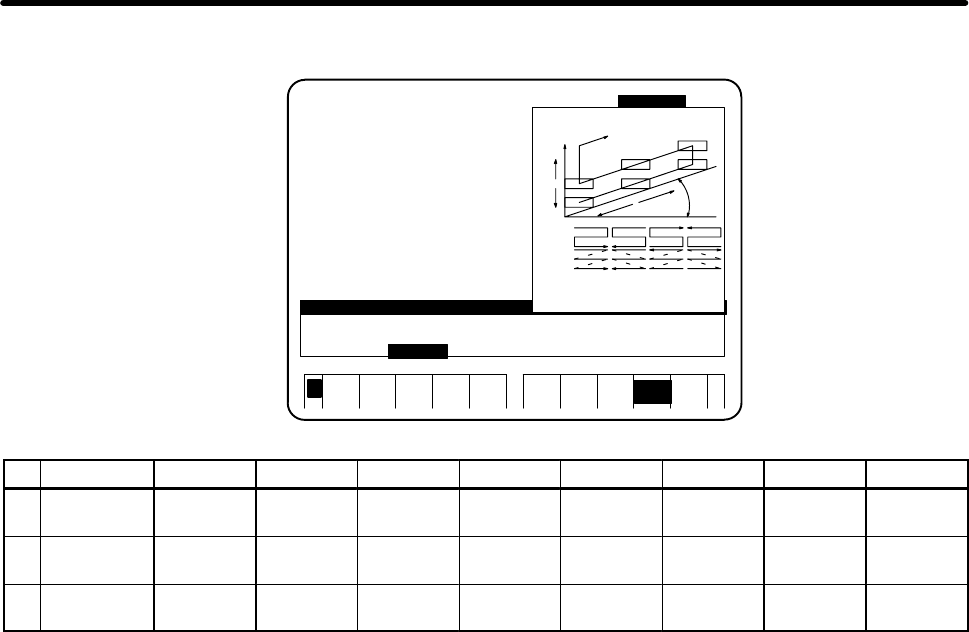

2.2.8 Group copy (Pattern) (ZI08)
INPUT THE TOTAL NO.OF PARTS TO BE MADE FROM A SINGLE SHEET.
<
INPUT
END
GUIDAN
CE
PROGRAM O1000 PAGE :01/ EDITING
GROUP SELECT :YB= A–GROUP U PITCH : I=
COPY PATH :YA= BI–DIREC. V PITCH : J=
COPY START : B= (3) U NUMBER : D=
COPY TOTAL : E= ANGEL : A= 0.
AUXILIARY :GRP CP PATTRN
NO. CYCLE PROCESS TOOL NAME
001 AUXILIARY INITAL SETING
J
I
U
A
(1) (3)(2) (4)
BI DE–
RECTION
UNI DE–
RECTION
G52 LOCAL COORD SYSTEM IS USED.
1 2 3 4 5 6 7 8
YB GROUP
COPY
A–GROUP B–GROUP C–GROUP
YA COPY PATH UNI–DI
REC.
BI–DIREC.
B COPY
START
(1) (2) (3) (4)
1) Screen explanation
Select this screen when multiple machining patterns of a part of the program are copied on the XY plane
at regular intervals. Select this menu just after ”All Copy” or, when ”All Copy” is not selected, just after the
initial setting (ZI01).
There is no limit in number. Multiple parts can be made from a single sheet based on the shift amount fixed
in the X and Y directions. Machine altering the offset amount at the origin of the local coordinate system
of G52.
2) Input item explanation
YB : GROUP COPY
It is possible to designate 3 group copies ”A Group”, ”B Group” and ”C Group”.
Only the machining menu designated by the group copy that should be performed for each machin-
ing menu becomes the object of ”Group Copy.”
”A Group” is specified if there is no setting.
YA : COPY PATH
Input either BI–DIREC. or UNI–DIREC.
BI–DIREC. is specified if there is no setting.
B : COPY START
Input a number from ”1)” to ”4)”.
”3)” is specified if there is no setting.
E : COPY TOTAL
Input the total No. of parts to be made from a single sheet. Be sure to input.
I : U PITCH
Input the shift amount in the U direction. Be sure to input.
J : V PITCH
Input the shift amount in the V direction. Be sure to input.
D : U NUMBER
Input the number of parts to be made from a single sheet in the U direction. Be sure to input.
