TURN MATE i Operators manual Page 106

Operators manual
3.FACE CORNER CYCLE CYCLE MACHINING B-64254EN/02
- 94 -

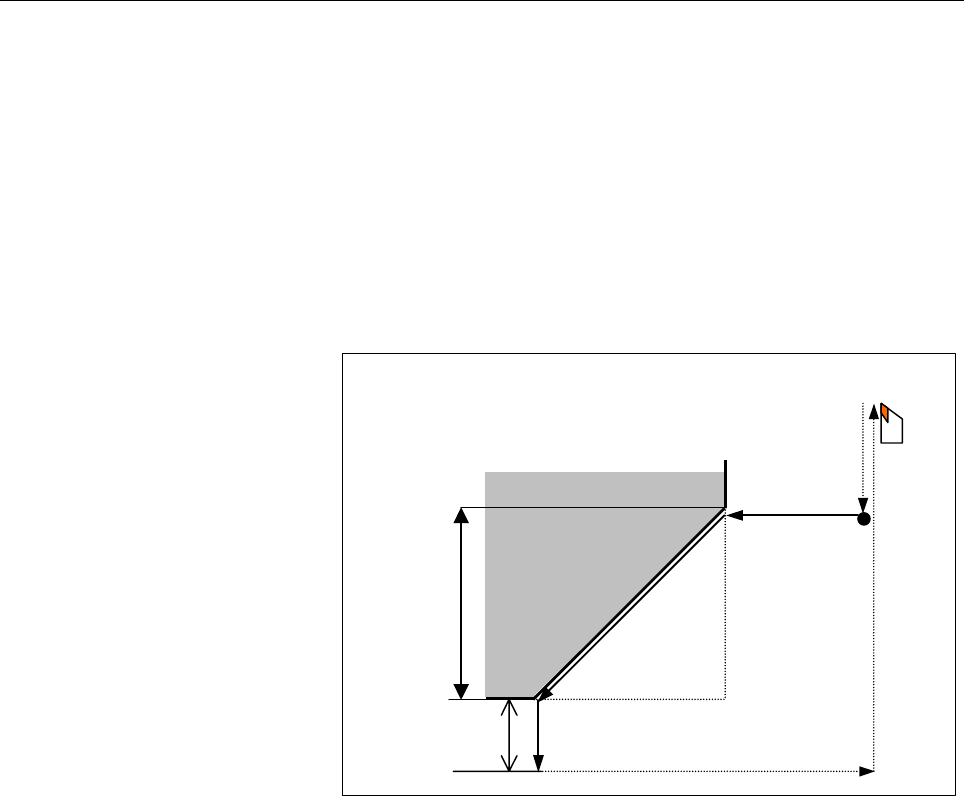

2. Chamfer, Depth of Cut D-CUT=0, Tool in [C]
(1) The tool moves from the initial position (XS, ZS), somewhere in
[C], along the X axis in rapid traverse until (X_min, ZS).
(2) The tool moves in cutting feed along the Z axis until (X_min, Z).
(3) The tool moves along the programmed figure, in cutting feedrate
until position (X, Z_min).
(4) The tool moves along the X axis, in cutting feedrate, covering a
distance equal to the clearance X.
(5) The tool return to the initial position in rapid traverse, moving
first along Z and then along X.
C
(XS, ZS)
(X_min, Z)
(X, Z)
(X, Z_min)
Clearance X
1
2
3
4
5
