TURN MATE i Operators manual Page 147

Operators manual
B-64254EN/02 CYCLE MACHINING 8.THREAD CYCLE
- 135 -
8.2 INPUT DATA
8.2.1 Input Data Thread Cycle
In the following the input data for outer thread cycle is explained in
detail. As the meaning of the data input for thread cycles is the same
other thread cycles are not explained in this document.

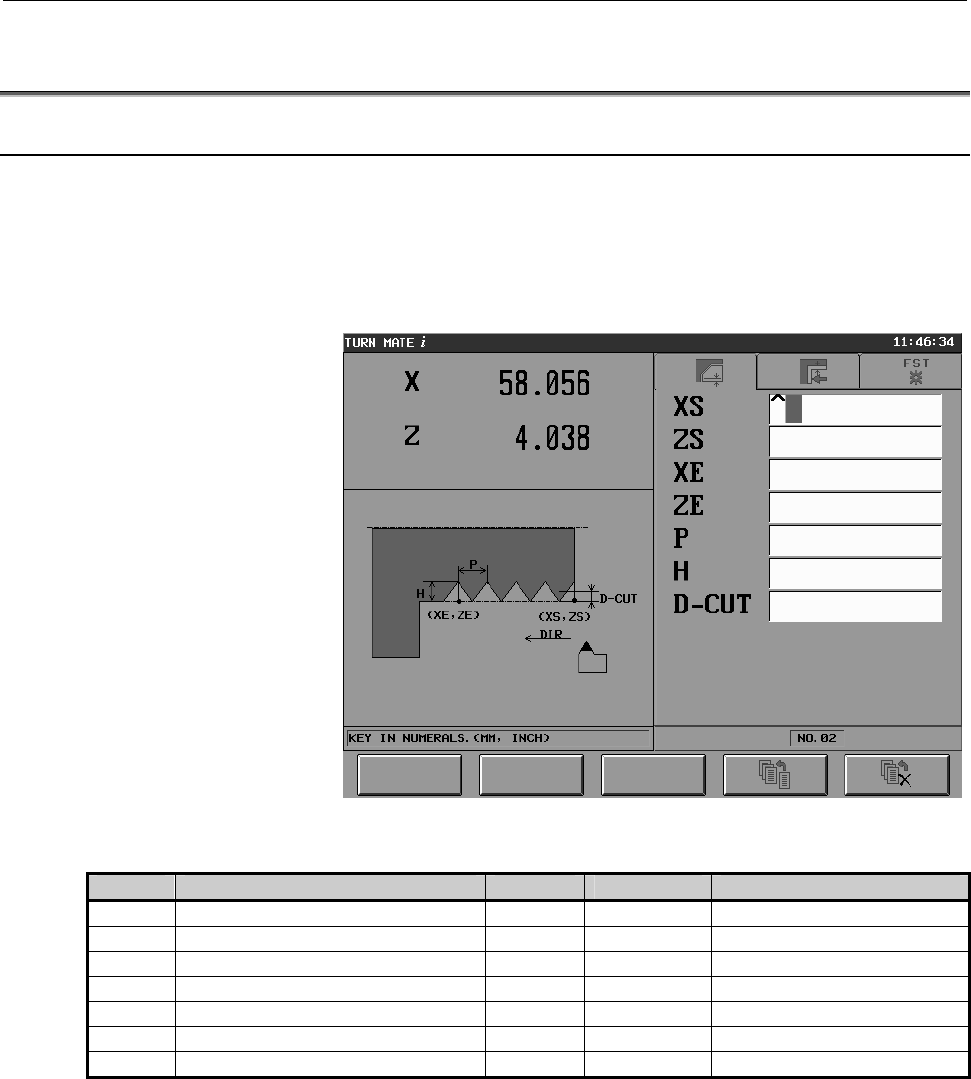

The picture below shows the guidance drawing of thread cycle.
Input data for thread cycle
Item Meaning Tab Mandatory Note
XS X coordinate start point of threading FIG
○
Absolute coordinate
ZS Z coordinate start point of threading FIG
○
Absolute coordinate
XE X coordinate end point of threading FIG
○
Absolute coordinate
ZE Z coordinate end point of threading FIG
○
Absolute coordinate
P Pitch of thread (lead) FIG
○
Equal or bigger than zero
H Depth of thread FIG
○
Equal or bigger than zero
D-CUT Depth of cut FIG
○
Equal or bigger than zero
