TURN MATE i Operators manual Page 41

Operators manual
B-64254EN/02 OPERATION 3.TOOL
- 29 -

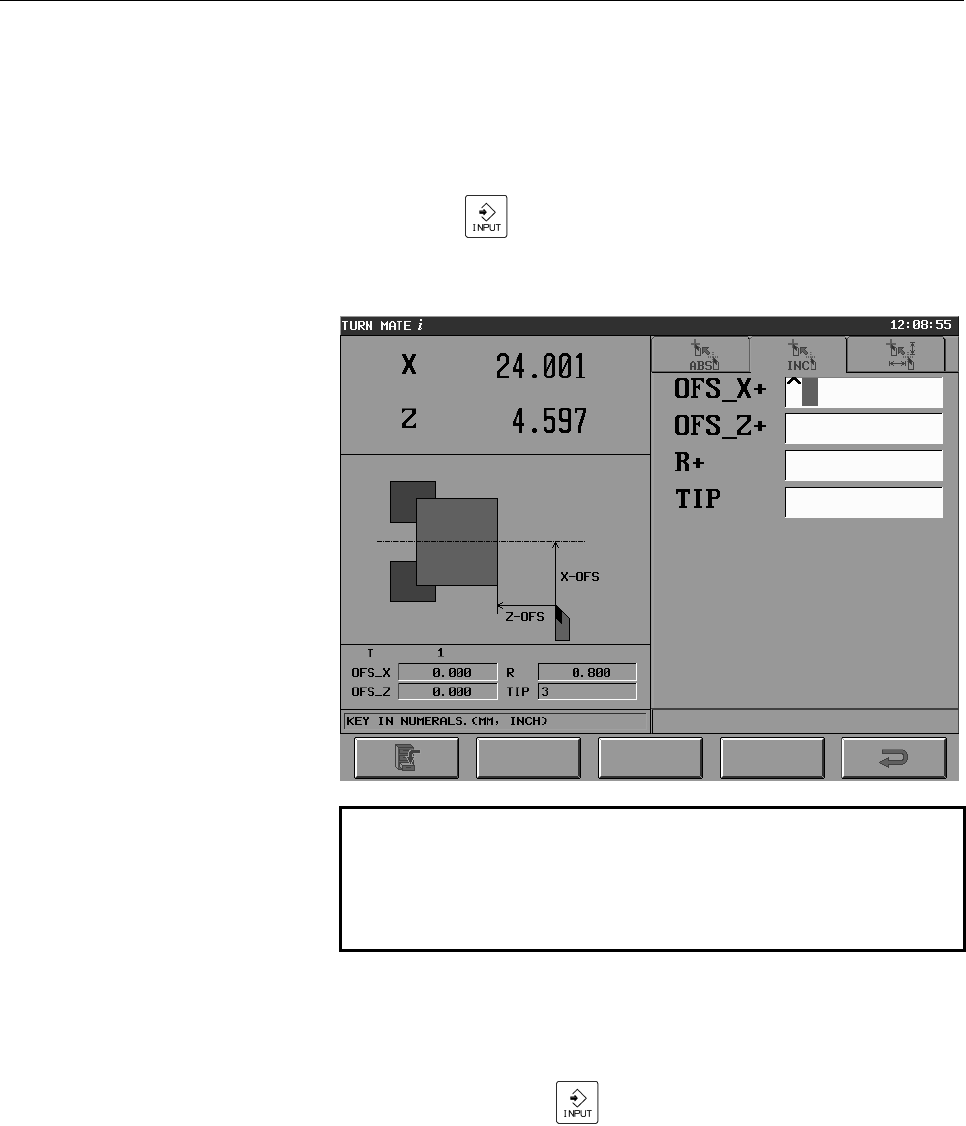

<Setting of tool offset in incremental value>
Move to Incremental tab.
It is possible to add or to subtract a certain amount from the
actual offset value and tool nose radius by inputting a value into
the data area OFS_X+ , OFS_Z+, and R+ and then pushing
INPUT (
) key.
Push SET key to store the newly input tool offset values into the
corresponding System Variables of the selected tool.
NOTE
Tool offset value is set to Geometric offset only.
TURN MATE i does not used to Wear offset.
Therefore, please clear Wear offset value before
measure tool offset.
<Setting of tool nose radius>
Move to Absolute tab or Incremental tab.
Input the tool nose radius value into the data area R or R+, and
then push INPUT (
) key.
To store the newly input tool nose radius value into the
corresponding System Variables of the selected tool push SET
key.
The actual tool nose radius value is displayed at the bottom left
side of the screen.
