TURN MATE i Operators manual Page 177

Operators manual
B-64254EN/02 CYCLE MACHINING 10.HOLE CYCLE
- 165 -
10.2.2 Tap Cycle

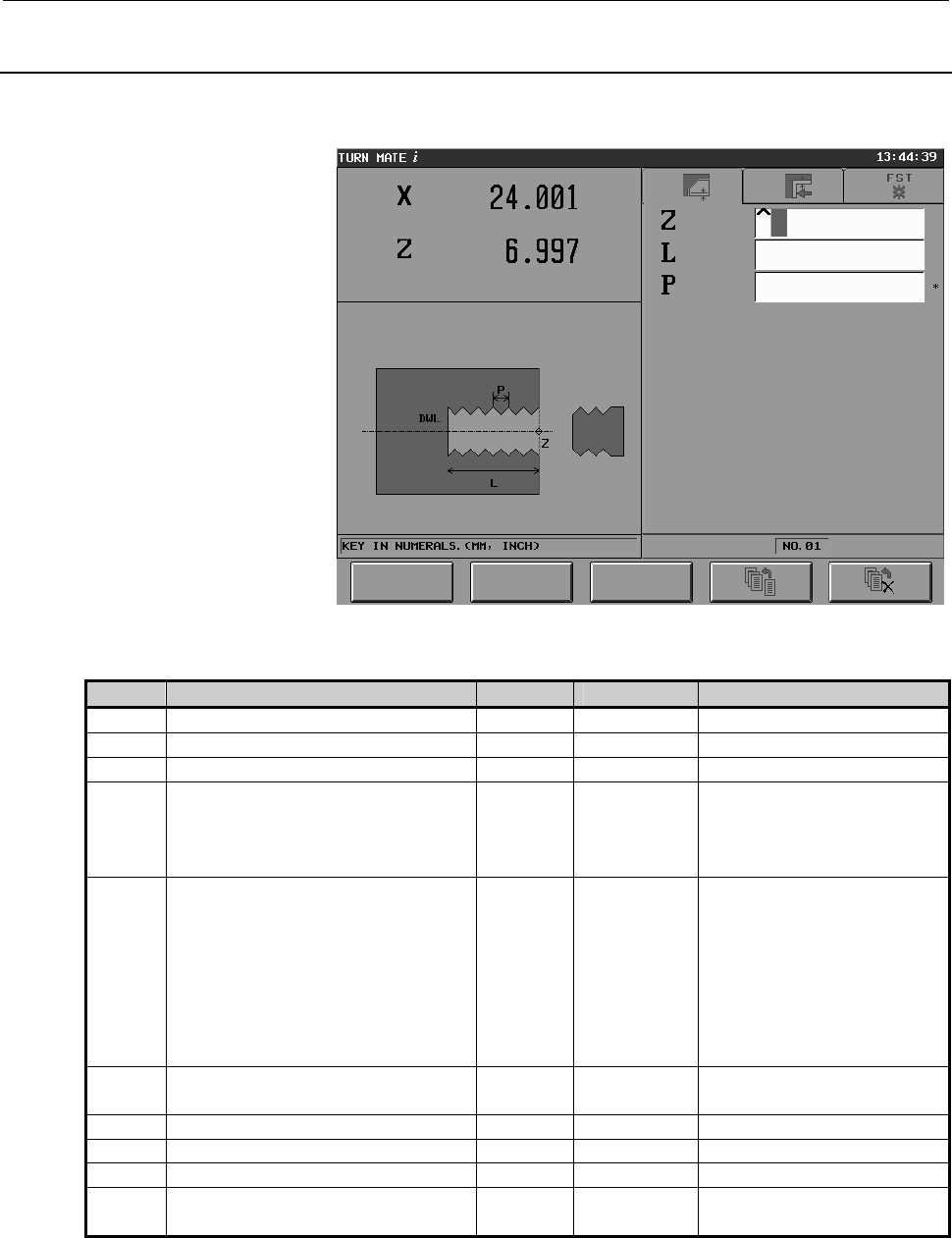

The picture below shows the guidance drawing of tap cycle.
Input data for tap cycle
Item Meaning Tab Mandatory Note
Z Start Coordinate Z of the hole FIG
○
Absolute coordinates
L Depth of hole FIG
○
Bigger than zero
P Pitch of thread (lead) FIG
○
Bigger than zero
DIR The direction of rotation is specified
with the button on touch screen.
CW: (1)
CCW: (2)
METH
×
CW is the default value
TYP Tapping type is specified with the
button on touch screen.
FLOAT: Float tapping (1)
RIGID: Rigid tapping (2)
METH
×
RIGID is the default value
FLOAT when empty.
TYP is displayed only at
No.9101#5=0 and
No.5200#0=0.
( TYP is not displayed at
No.9101#5=1 or
No.5200#0=1. )
DWL Dwell time when the tool reaches the
bottom of groove
METH
×
0 when empty.
T Tool number COND
×
F Feedrate COND
×
S Spindle speed COND
×
G The gear number is specified with
the button on touch screen.
COND
×
1-4 is specified.
