TURN MATE i Operators manual Page 98

Operators manual
2.STANDARD CORNER CYCLE CYCLE MACHINING B-64254EN/02
- 86 -

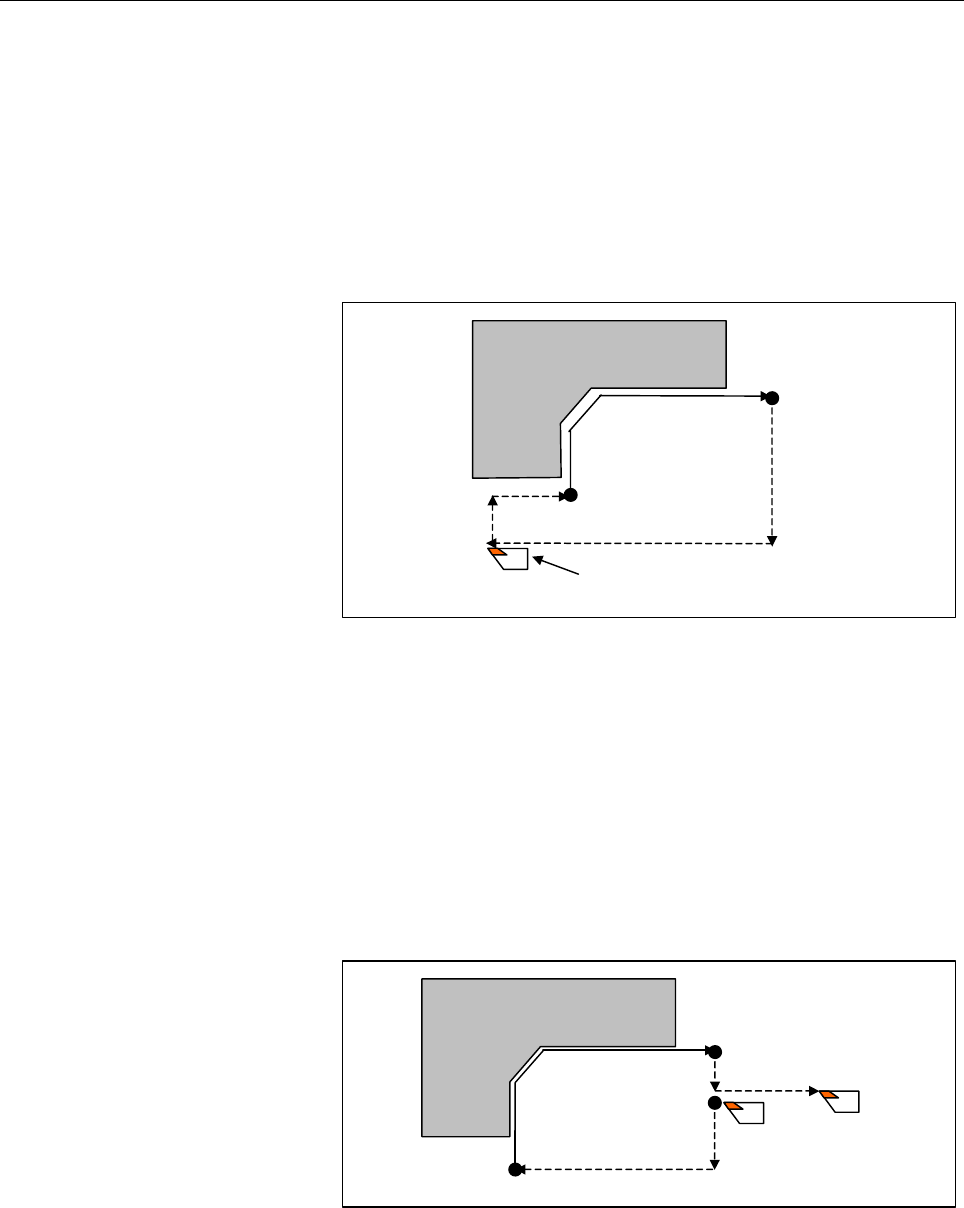

3. Finishing only, cutting direction DIR=X, tool in [B]
(1) The tool moves from the initial position, somewhere in [B], to P3
moving in rapid traverse first along the X axis and then along the
Z axis.
(2) From P3 the tools moves in cutting feed along the programmed
figure until P1.
(3) The tool return to the initial position in rapid traverse, moving
first along X and then along Z.
1
2
3
P3
P1
Tool Initial Position
Somewhere in [C]+[F]+[G]+[I]
4. Roughing + finishing, cutting direction DIR=X, tool in [B]
The following description refers to tool cutting motions described in
Subsections 7 and 8 of rough cutting motions.
(1) The tool moves from position Ez, to P1 moving in rapid traverse
first along the X axis and then along the Z axis.
(2) From P1 the tools moves in cutting feed along the programmed
figure until P3.
(3) The tool return to the initial position in rapid traverse, moving
first along X axis and then along Z axis.
Tool Initial Position
Somewhere in [B]
P1
P3
Ez
1
2
3
