5.RADIUS CYCLE CYCLE MACHINING B-64254EN/02
- 120 -
5.2 INPUT DATA
In the following description the input data for convex outer radius
cycle is explained in detail. As the meaning of the data input for the
other radius cycles is the same other radius cycles are not explained in
this document.

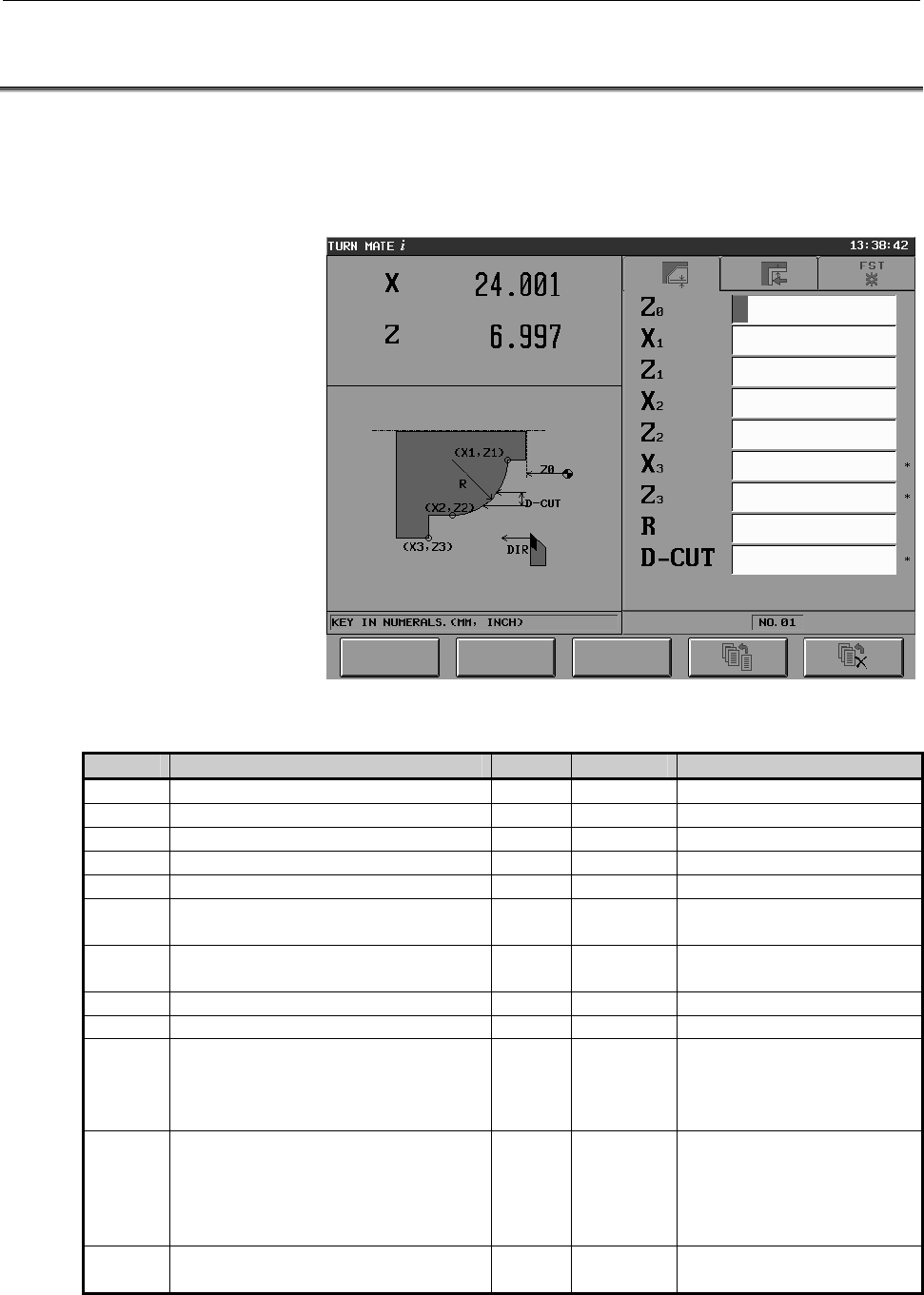

Input data for convex outer radius circle
Item Meaning Tab Mandatory Note
Z0 Z coordinate of the start point FIG
×
X1 X coordinate of the start point of the arc FIG
○
Absolute coordinate
Z1 Z coordinate of the start point of the arc FIG
○
Absolute coordinate
X2 X coordinate of the end point of the arc FIG
○
Absolute coordinate
Z2 Z coordinate of the end point of the arc FIG
○
Absolute coordinate
X3 X coordinate of the end point FIG
×
Absolute coordinate
If X3=blank then X3=X2
Z3 Z coordinate of the end point FIG
×
Absolute coordinate
If Z3=blank then Z3=Z2
R Radius of the arc FIG
○
Bigger than zero
D-CUT Depth of cut FIG
×
Equal or bigger than zero
DIR The direction of cutting is specified with
the button on touch screen.
[Z]: Direction along Z (1)
[X]: Direction along X (2)
METH.
×
As default cutting direction
along Z is selected.
R+F The cutting method is specified with the
button on touch screen.
[R+F]: Rough + Finishing cutting (1)
[R]: Rough cutting (2)
[F]: Finish cutting (3)
METH.
×
As default Rough + Finishing
cutting is selected.
FIN-X Finishing amount X METH.
×
The default value of FIN-X is
specified in the set screen.
