TURN MATE i Operators manual Page 59

Operators manual
B-64254EN/02 OPERATION 7.FREE FIGURE
- 47 -

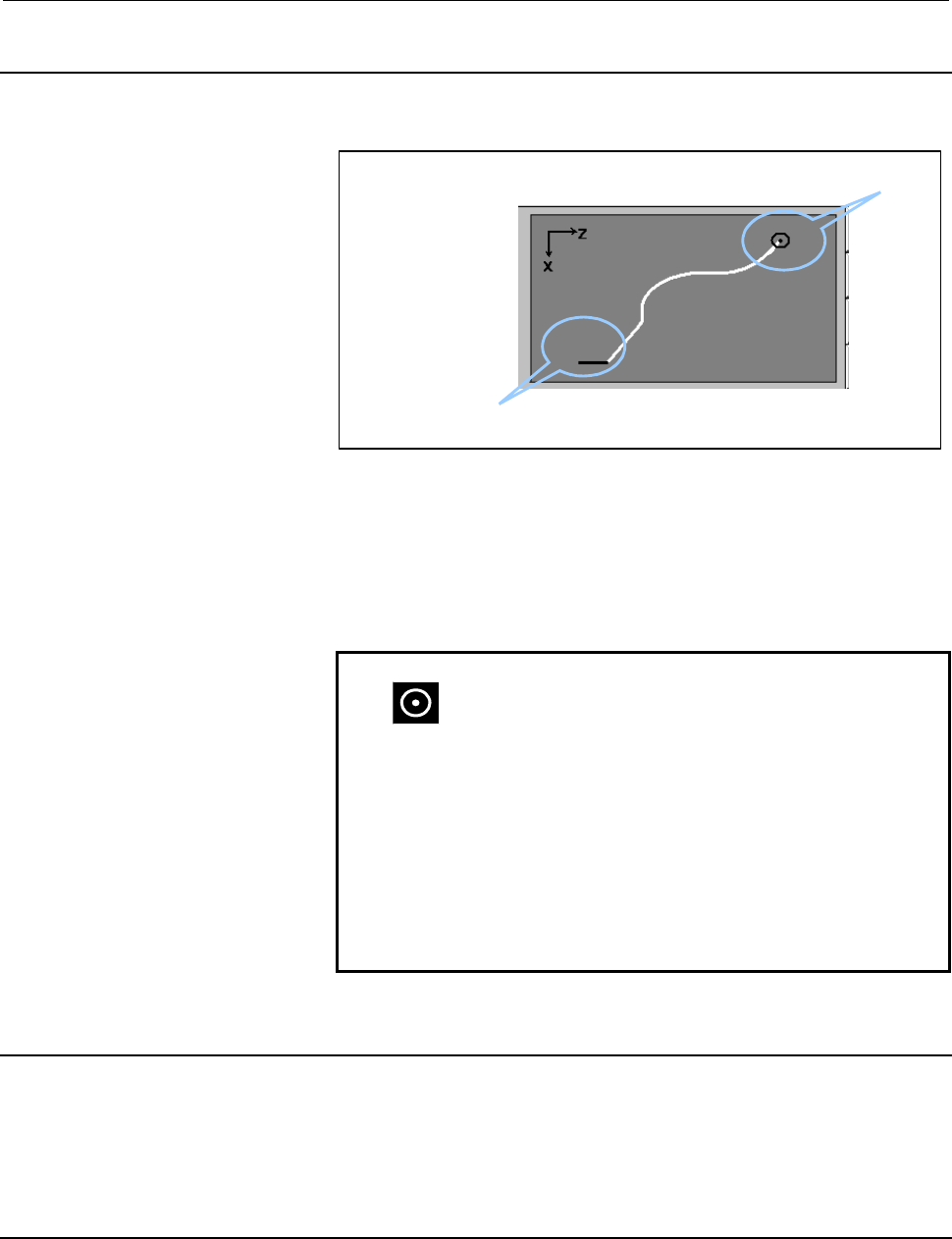

7.1.3 Drawing Area
The figure being edited is displayed.
Figure element where the cursor is located
Start Point
The figure is updated in the following cases.
(1) When a new graphic element is inserted at the bottom of the
figure element list.
(2) When CAL soft key is pushed.
(3) When the RET soft key is pushed.
NOTE
1
: This icon represents the start point of the
figure.
2 The figure is always automatically scaled in order
to fit in the drawing area.
3 The selected figure element is highlighted in the
drawing area with the corresponding line in a
different color than the rest of the figure.
4 If there is a wrongly defined figure element, only
the preceding defined figure elements are drawn in
the drawing area, the rest are discarded.
7.1.4 Message Display Area
The NC alarm message or the error message is displayed.
If there is an undefined figure element then an error message is
displayed.
7.1.5 Processing Data Number of Cycle
The cycle number being edited is displayed.
