TURN MATE i Operators manual Page 121

Operators manual
B-64254EN/02 CYCLE MACHINING 4.TAPER CYCLE
- 109 -

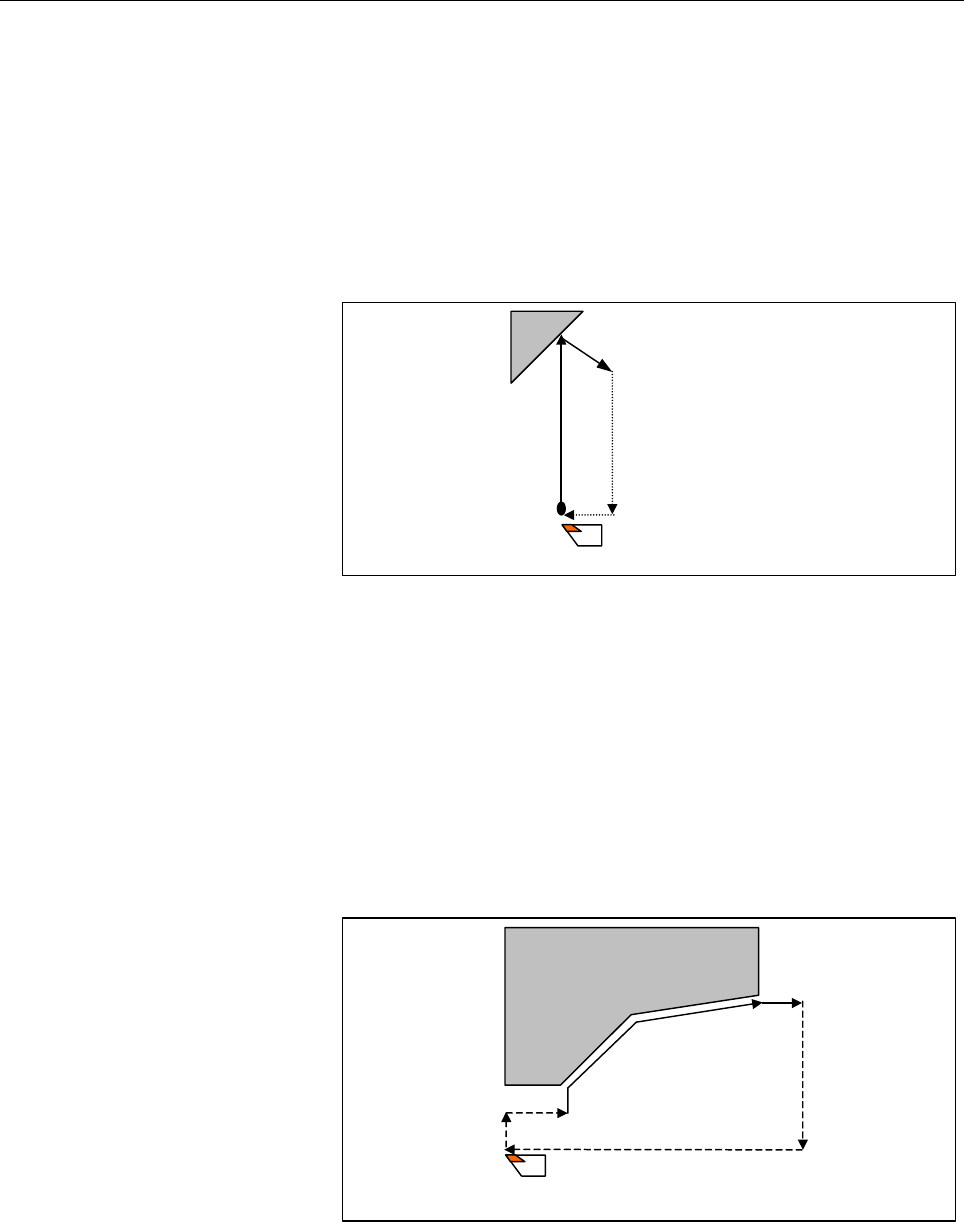

5. Depth of cut D-CUT=0, cutting direction DIR=X, tool in [E]+[H]
(1) The tool moves from the initial position, somewhere in [E]+[H],
in cutting feedrate until the edge of the programmed figure is
reached.
(2) The tool retracts by the escape amount (ESCPAMT) specified in
parameter No. 9212.
(3) The tool return to the initial position in rapid traverse, moving
first along X and then along Z.
Tool Initial Position
Somewhere in [E]+[F]
1
2
3
6. Depth of cut D-CUT=0, cutting direction DIR=X, tool in [C]+[F]+[G]+[I]
(1) The tool moves from the initial position, somewhere in
[C]+[F]+[G]+[I], to P3 moving in rapid traverse first along the X
axis and then along the Z axis.
(2) From P3 the tools moves in cutting feed along the programmed
figure until P1.
(3) From P1 the tool moves along the Z axis in cutting feed covering
a distance equal to the clearance Z.
(4) The tool return to the initial position in rapid traverse, moving
first along X and then along Z.
Tool Initial Position
Somewhere in [C]+[F]+[G]+[I]
1
2
3
4
