B-64254EN/02 CYCLE MACHINING 4.TAPER CYCLE
- 101 -
4.2 INPUT DATA

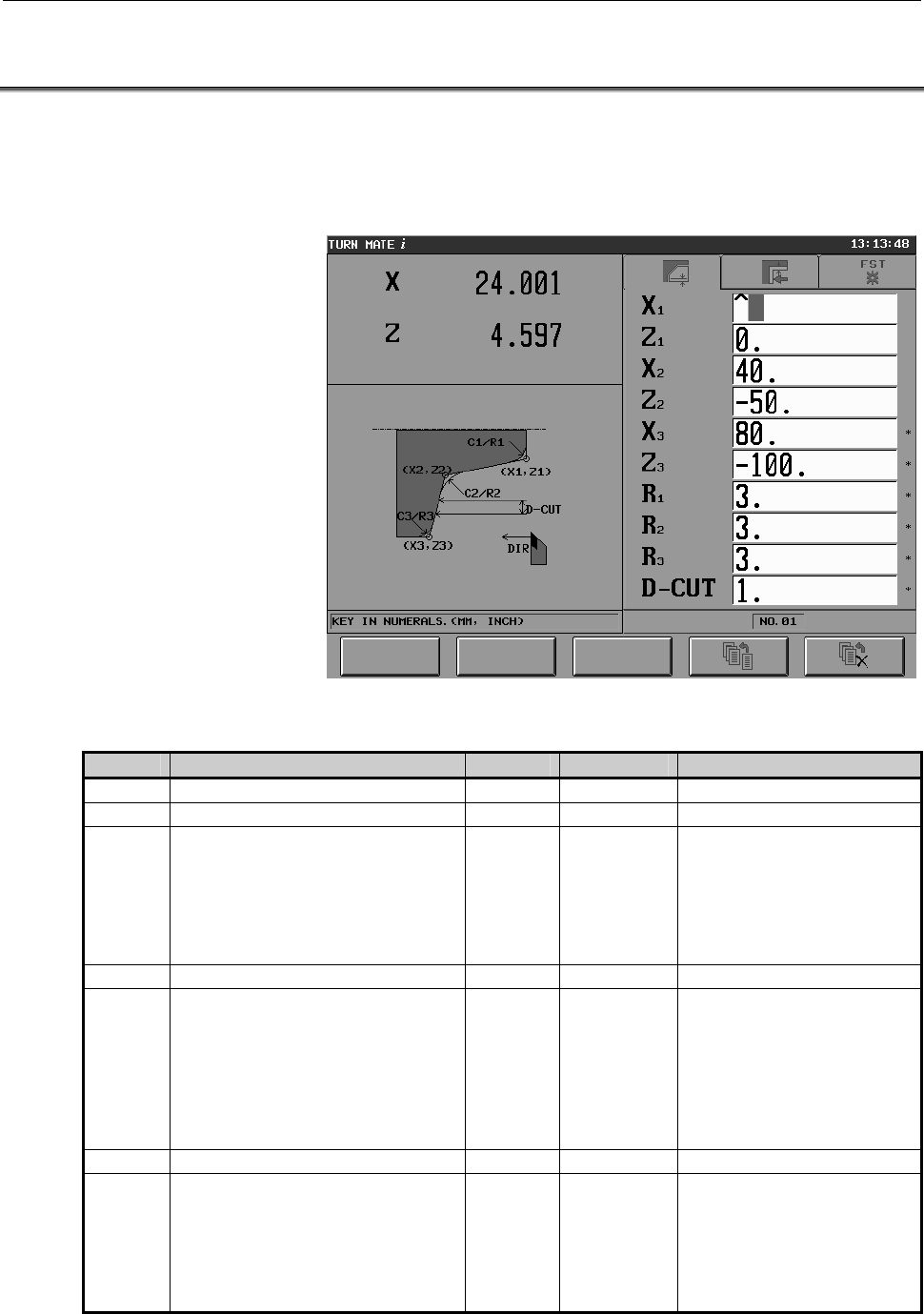

In the following description the input data for outer taper cycle is
explained in detail. As the meaning of the data input for the other for
taper cutting cycles is the same other taper cycles are not explained in
this document.
Input data for outer taper cycle
Item Meaning Tab Mandatory Note
X1 X coordinate of intersection point 1 FIG
○
Absolute coordinate
Z1 Z coordinate of intersection point 1 FIG
○
Absolute coordinate
X2/A1 X coordinate of intersection point
2/angle at intersection point 1
(Note)
FIG
○
The selection between angle
and coordinate is done via
touch screen button.
The guidance drawing
changes according to the
selection.
Z2/A1 Z coordinate of intersection point 2 FIG
○
Absolute coordinate
X3/A2 X coordinate of intersection point 3/
angle at intersection point 2
(Note)
FIG
×
If X3 is blank then X3=X2
The selection between angle
and coordinate is done via
touch screen button.
The guidance drawing
changes according to the
selection.
Z3/A2 Z coordinate of intersection point 3 FIG
×
If Z3 is blank then Z3=Z2
R1/C1 Corner radius R/chamfering C at
intersection point 1
FIG
×
The selection between corner
and chamfer is done via
touch screen button.
The guidance drawing
changes according to the
selection.
