10.CALCULATOR FUNCTION OPERATION B-64254EN/02
- 58 -
10 CALCULATOR FUNCTION
When numeric data is input, expressions for arithmetic operations,
trigonometric functions, square root calculations, and so forth can be
input for calculation.
1) Applications
The calculator function can be used for cycle data input, free
figure data input, setting of various data items. (Workpiece
coordinate system etc.)
2) Calculation methods
• Arithmetic operations (addition, subtraction, multiplication,
and division)
Arithmetic operations are performed using the key
operations described below. The result of a calculation is
displayed at the cursor position for input data.
(1) Addition : 100.+200. [INPUT]
(2) Subtraction : 100.-200. [INPUT]
(3) Multiplication : 100.*200. [INPUT]
(4) Division : 100./200. [INPUT]

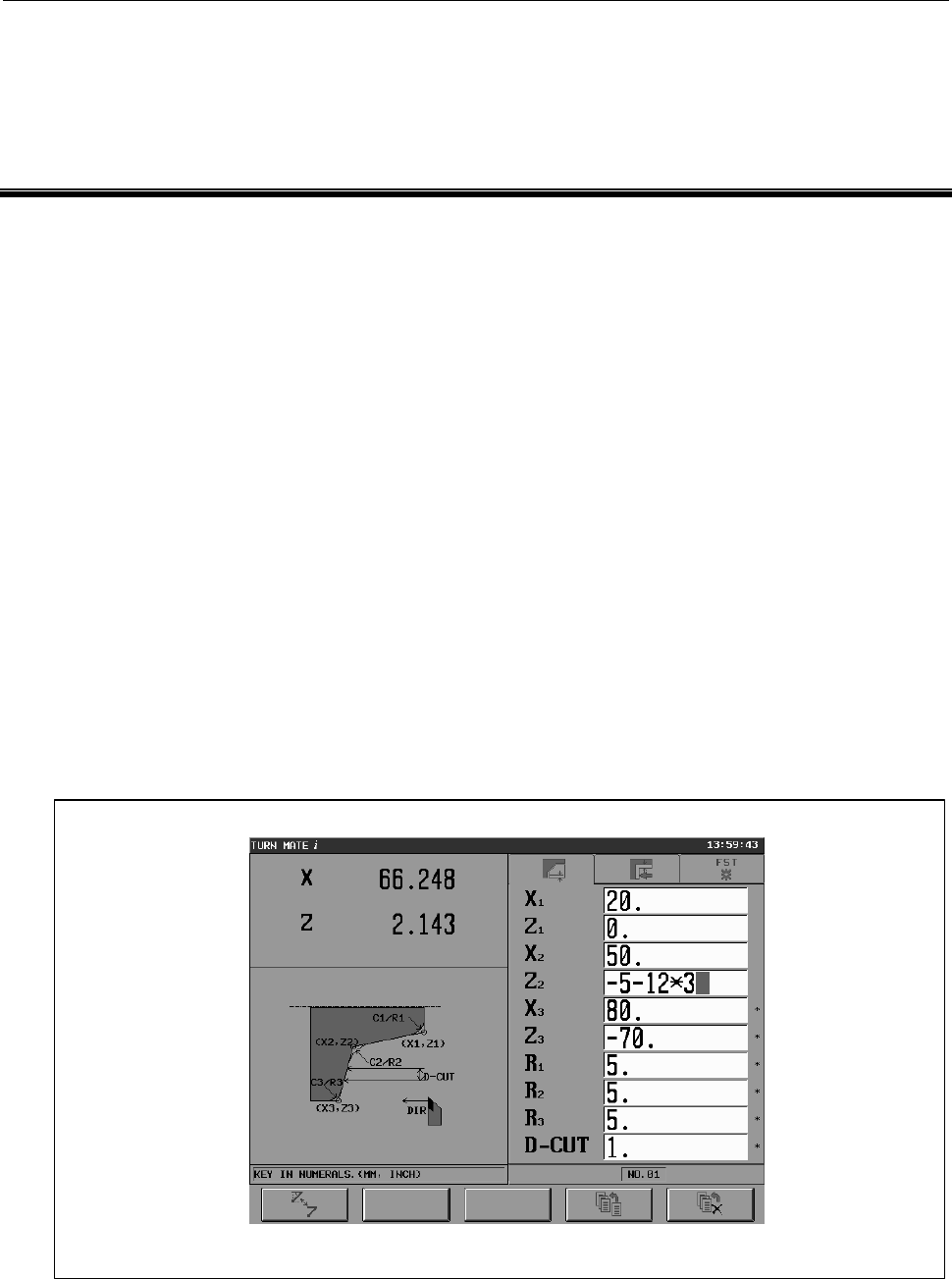

Example of input
