B-64254EN/02 CYCLE MACHINING 2.STANDARD CORNER CYCLE
- 73 -
2.2 INPUT DATA
In the following description the input data for standard outer corner
chamfer C cycle is explained in detail. As the meaning of the data
input for the other standard corner cycles is the same they are not
explained in this document.

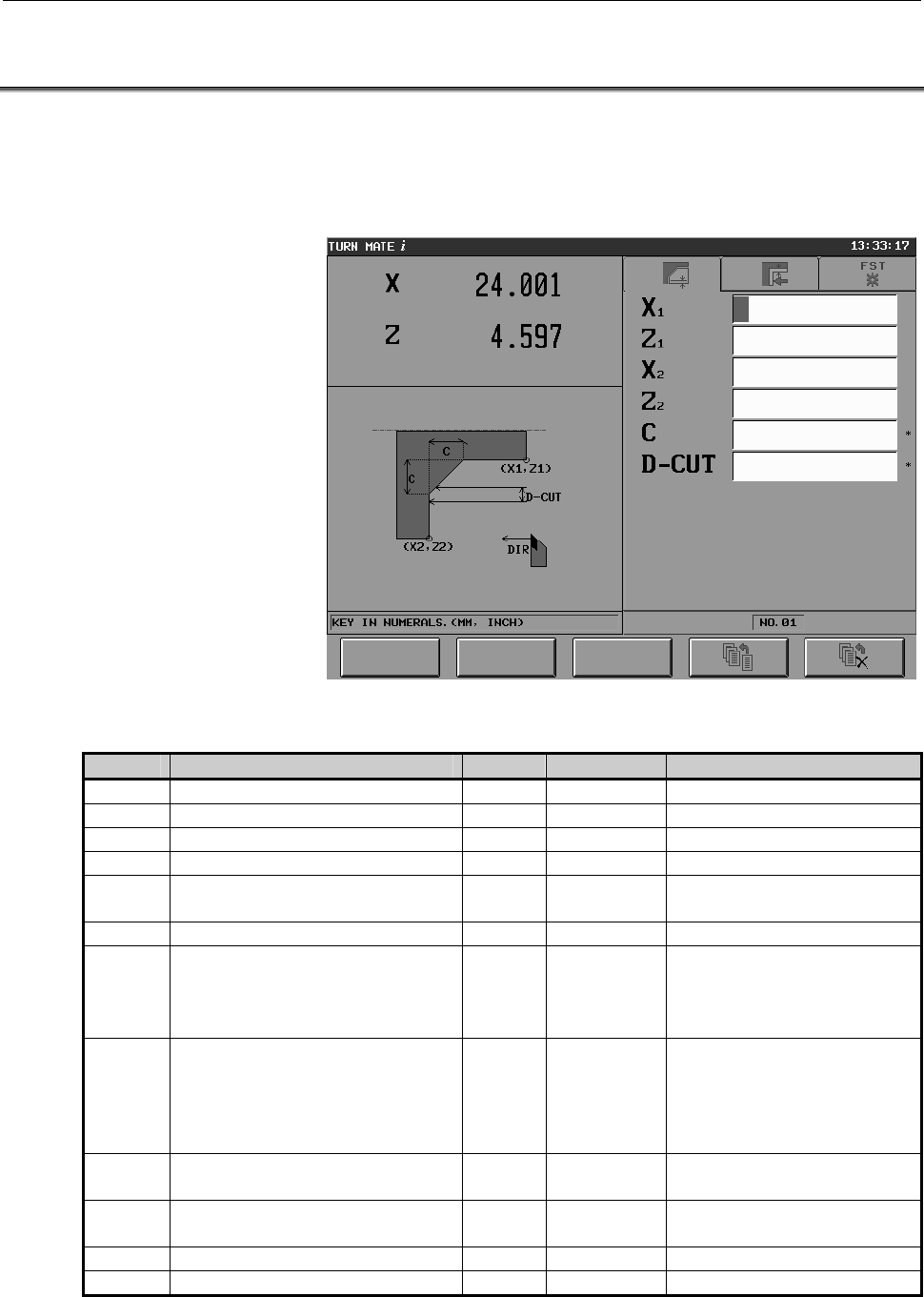

Input data for standard outer corner chamfer C cycle
Item Meaning Tab Mandatory Note
X1 Start X coordinate of the shape FIG
○
Absolute coordinate
Z1 Start Z coordinate of the shape FIG
○
Absolute coordinate
X2 End X coordinate of the shape FIG
○
Absolute coordinate
Z2 End Z coordinate of the shape FIG
○
Absolute coordinate
R/C Corner radius R / amount of
chamfering C
FIG
×
Bigger than zero
D-CUT Depth of cut FIG
×
Equal or bigger than zero
DIR The direction of cutting is specified
with the button on touch screen.
[Z]: Direction along Z (1)
[X]: Direction along X (2)
METH.
×
As default cutting direction is
along Z is selected.
R+F The cutting method is specified with
the button on touch screen.
[R+F]: Rough + Finishing cutting (1)
[R]: Rough cutting (2)
[F]: Finish cutting (3)
METH.
×
As default Rough + Finishing
cutting is selected
FIN-X Finishing amount X METH.
×
The default value of FIN-X is
specified in the set screen.
FIN-Z Finishing amount Z METH.
×
The default value of FIN-Z is
specified in the set screen.
T Tool number COND.
×
F Feedrate COND.
×
