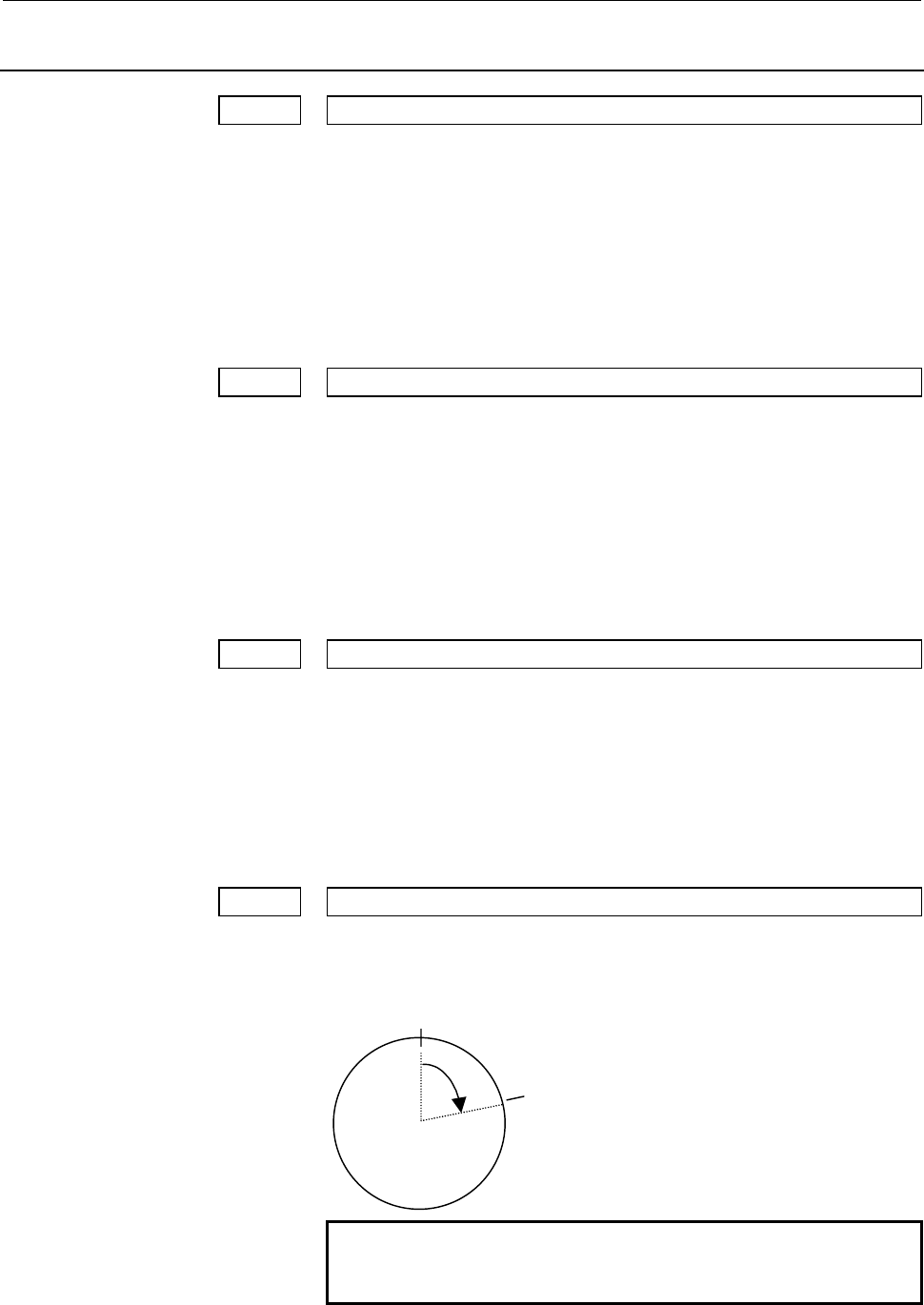

TURN MATE i Operators manual Page 199

Operators manual
B-64254EN/02 APPENDIX B.PARAMETERS
- 187 -
B.5.2 Thread Cycle
9220 SCLEARF
SCLEARF Clearance value along X axis (radius value, positive value,
incremental value)
Distance from thread start point, along the X axis, to machining start
point (approach point).
The default value is 2 mm (0.08 inch) if parameter is set to 0.
[Unit of data] For metric system: 0.001 mm
For inch system: 0.0001 inch
9221 ECLEARF
ECLEARF Clearance value along Z axis (radius value, positive value, incremental
value)
Distance from thread start point, along the Z axis, to machining start
point (approach point).
The default value is 2 mm (0.08 inch) if parameter is set to 0.
[Unit of data] For metric system: 0.001 mm
For inch system: 0.0001 inch
9223 TMINAMT
TMINAMT Minimum cutting depth (radius value and positive value).
If the cutting depth value calculated by the cycle is smaller than the
value of this parameter then the cutting depth applied will be the value
specified for this parameter.
[Unit of data] For metric system: 0.001 mm
For inch system: 0.0001 inch
9224 SPLANGQ
QZ Qz is the gap angle between P0 and P1. measured from P0 in
clockwise direction.
If P0=P1 then set QZ=0.
P0: Spindle position after commanding
spindle orientation. It represents the
zero position on spindle position coder.
P1: It represents the spindle zero position
on the spindle chuck. MTB is
responsible to prepare spindle zero
position on the spindle chuck.
P1
QZ
Spindle
P0
NOTE
It is mandatory to set this parameter to execute
thread repair
