B-64254EN/02 CYCLE MACHINING 2.STANDARD CORNER CYCLE
- 85 -

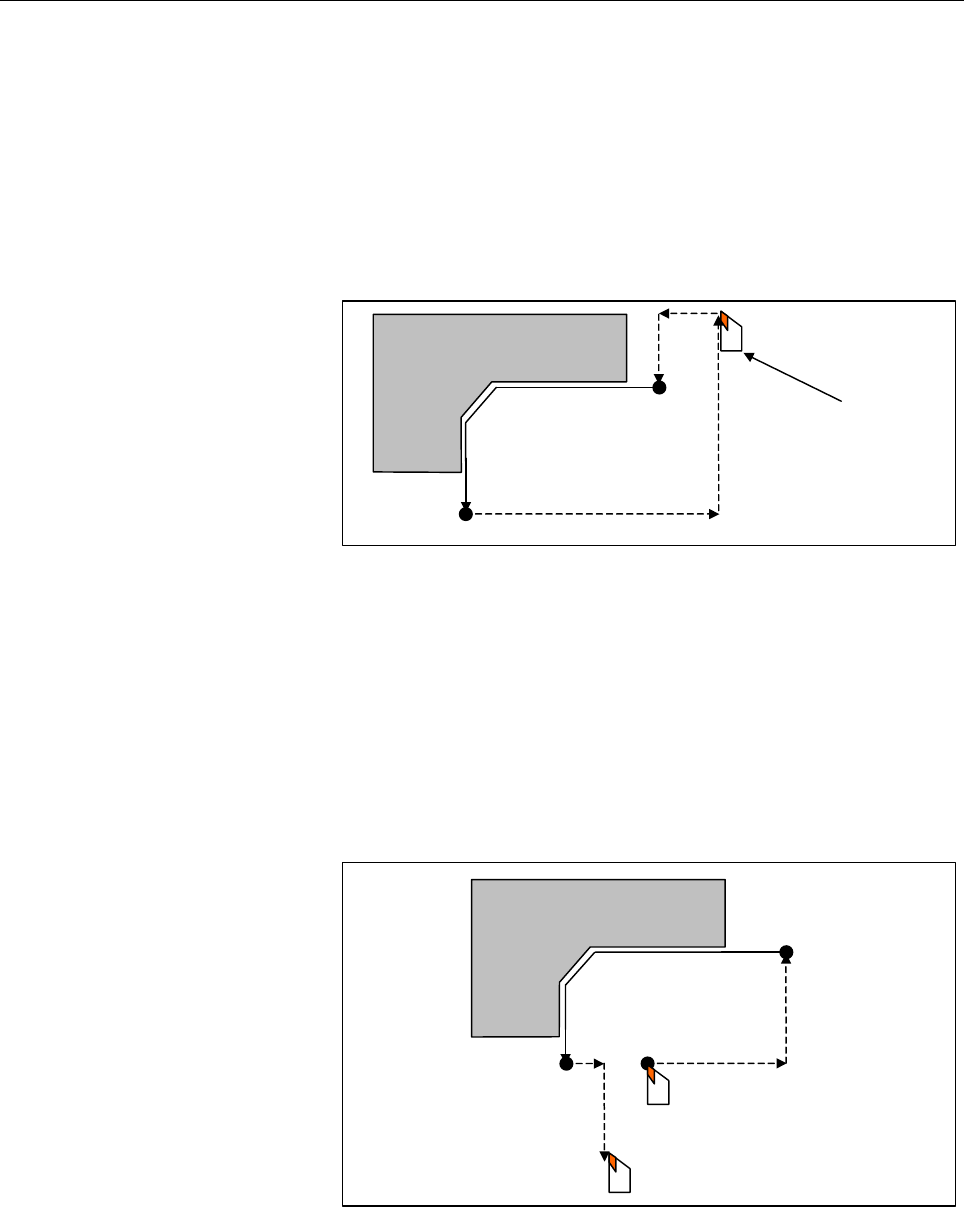

1. Finishing only, cutting direction DIR=Z, tool in [B]
(1) The tool moves from the initial position, somewhere in [B], to P1
moving in rapid traverse first along the Z axis and then along the
X axis.
(2) From P1 the tools moves in cutting feed along the programmed
figure until P3.
(3) The tool return to the initial position in rapid traverse, moving
first along Z axis and then along X axis.
Tool Initial Position
Somewhere in [B]
P1
P3
1
2
3
2. Roughing + finishing, cutting direction DIR=Z, tool in [B]
The following description refers to tool cutting motions described in
Subsections 3 and 4 of rough cutting motions.
(1) The tool moves from position Ex, to P1 moving in rapid traverse
first along the Z axis and then along the X axis.
(2) From P1 the tools moves in cutting feed along the programmed
figure until P3.
(3) The tool return to the initial position in rapid traverse, moving
first along Z axis and then along X axis.
Ex
Tool Initial Position
Somewhere in [B]
1
2
3
P1
P3
