B-64254EN/02 CYCLE MACHINING 10.HOLE CYCLE
- 163 -
10.1 OUTLINE
In holing the open processing,there is the following features.
(1) Drill shape is defined specifying the base position of the hole
along Z and the depth of the drill.
(2) Tap geometry is defined specifying the base position of the
tapping along Z, the depth of the tapping and the pitch of the
tapping.
(3) Drill cycle can be machined with pecking movements.
(4) Tapping can be specified as clockwise and counterclockwise.
(5) Tap machining can be specified as float and rigid.
(6) The tool number, feedrate, and spindle speed can be specified as
cycle data.
NOTE
Manual feed is not available. Only automatic feed
is available.

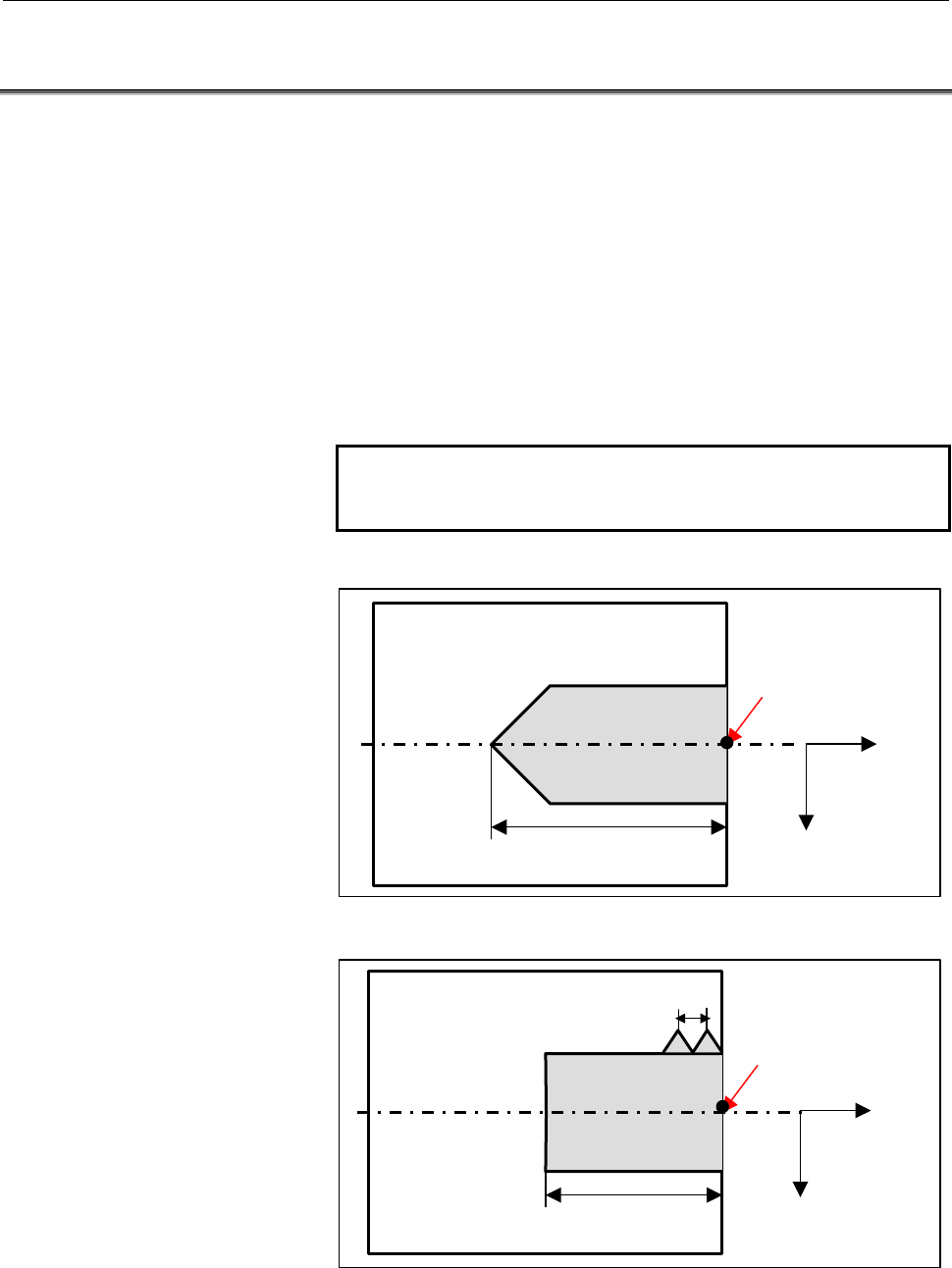

Drill cycle
Start coordinates Z
Depth of hole
+X
+Z
Tap cycle
Pitch
+X
+Z
Depth of hole
Start coordinates Z
