TURN MATE i Operators manual Page 37

Operators manual
B-64254EN/02 OPERATION 2.FEEDRATE
- 25 -
2 FEEDRATE
It is necessary to specify the feedrate before any cutting operation.

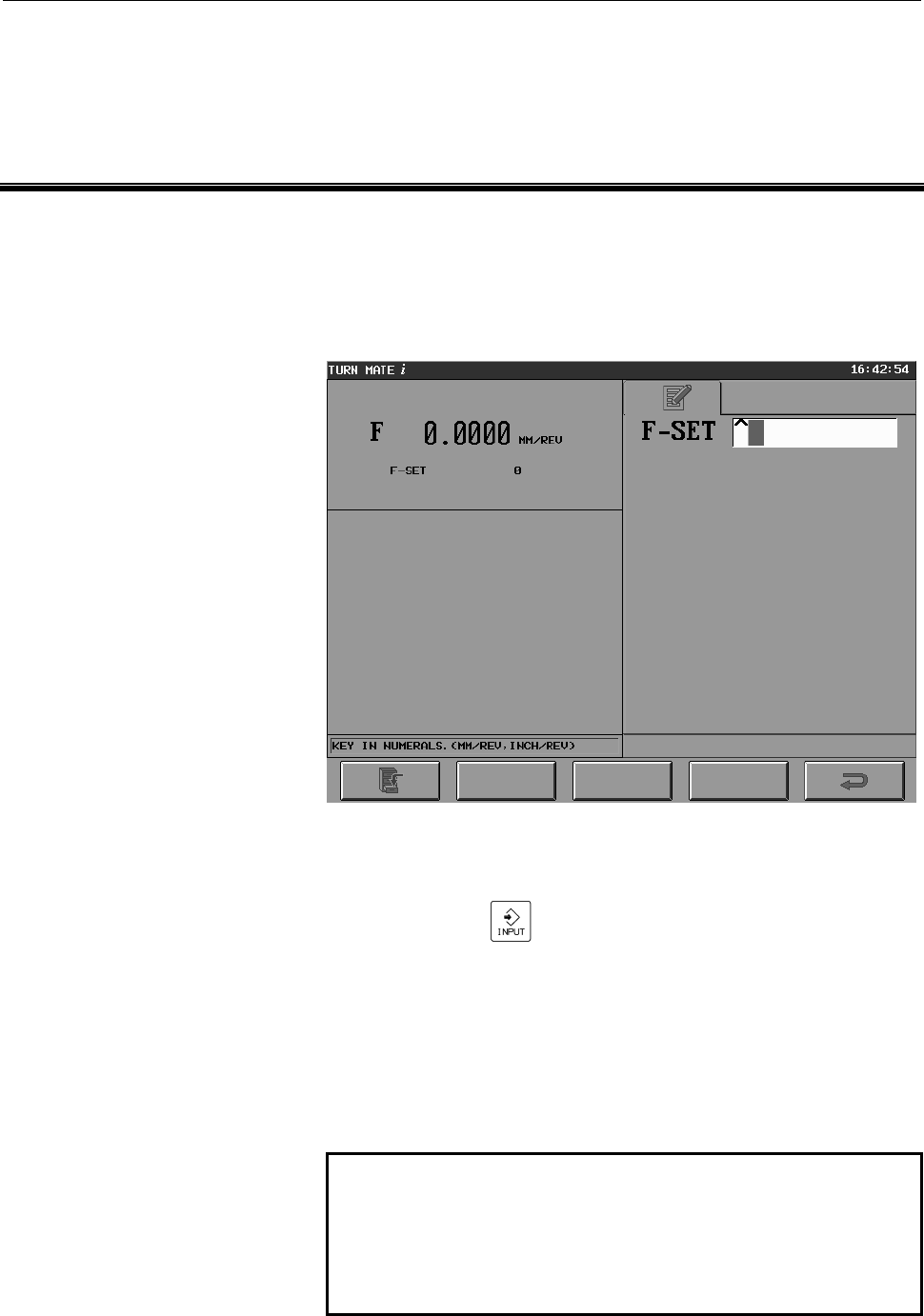

If the feedrate screen area on the Base Screen is pushed, then the
feedrate setting screen is displayed.
To return to the Base Screen push the RET button at the bottom right
of the screen.
The operation method is as follows.
(1) The desired federate is input into the data area of F-SET, then
push INPUT (
) key.
(The message “KEY IN NUMERALS. (MM/REV, INCH/REV)”
is displayed on the bottom left side of the screen).
(2) Then push SET button.
(3) The specified value of the feedrate is displayed next to string
F-SET on the left side of the screen.
The value displayed next to F represents actual feedrate read from the
CNC.
NOTE
1 The unit of the federate can be in mm/rev or
inch/rev.
2 If the feedrate is specified in the input data screen
of each cutting cycle, then it is not necessary to
specify the feedrate on the feedrate setting screen.
