TURN MATE i Operators manual Page 198

Operators manual
B.PARAMETERS APPENDIX B-64254EN/02
- 186 -

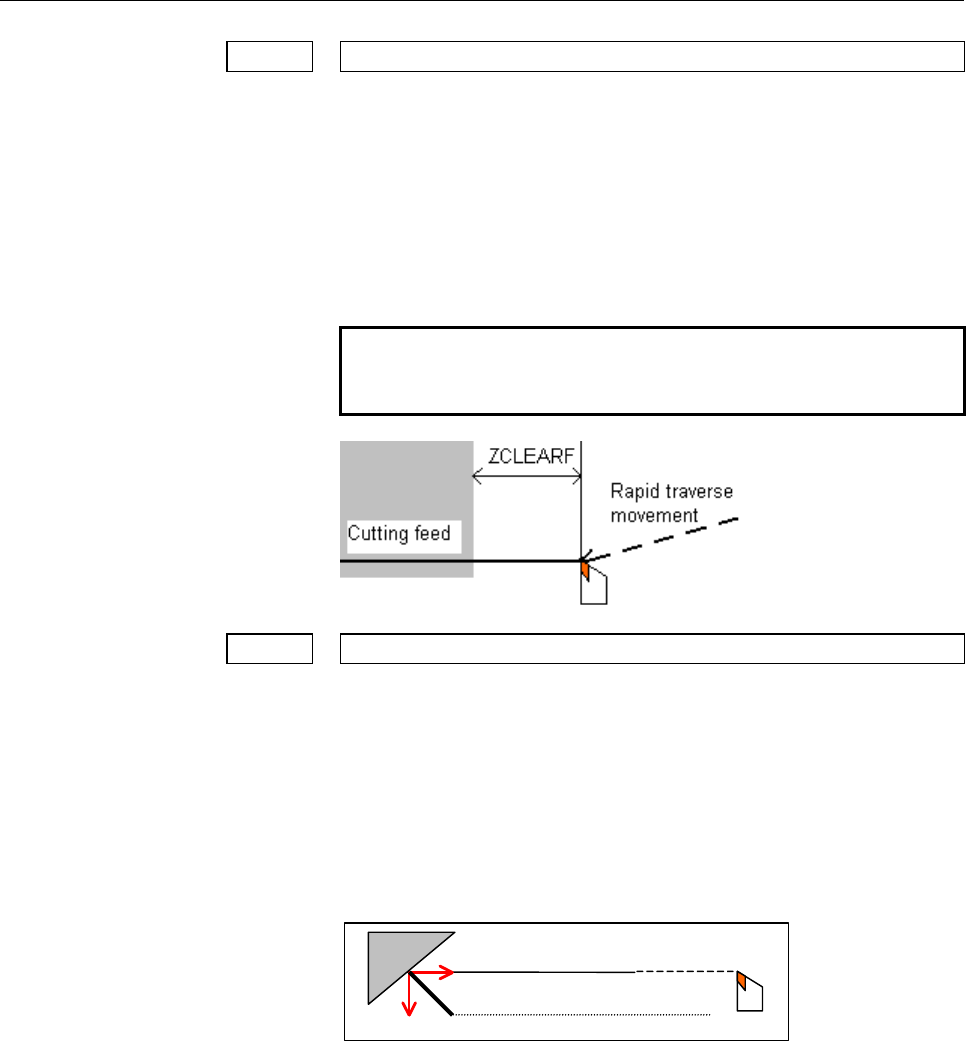

9211 ZCLEARF
ZCLEARF Clearance value along Z axis (radius value, positive value, incremental
value)
Distance from the stock removal, along the Z axis, to machining start
point (approach point).
The default value is 2 mm (0.08 inch) if parameter is set to 0.
[Unit of data] For metric system: 0.001 mm
For inch system: 0.0001 inch
NOTE
This parameter is used in, roughing, finishing,
roughing + finish cutting cycles.
9212 ESCPAMT
ESCPAMT Escape Amount (radius value, positive value, incremental value).
Distance by which the tool retracts from the cutting surface after each
cut
The escape amount value is the same along X and along Z.
The default value is 0.5 mm (0.02inch) if parameter is set to 0.
[Unit of data] For metric system: 0.001 mm
For inch system: 0.0001 inch
ESCPAMT
ESCPAMT
