TURN MATE i Operators manual Page 34

Operators manual
1.SPINDLE OPERATION B-64254EN/02
- 22 -
1.1 CONSTANT SURFACE SPEED OFF

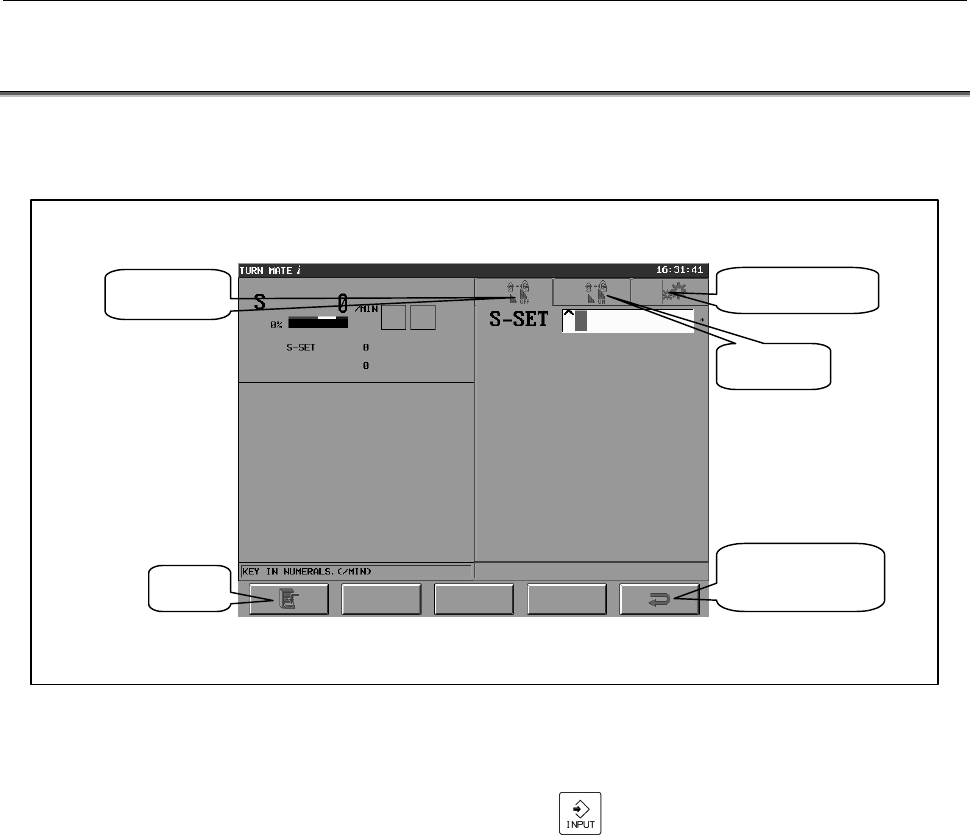

If tab CSS OFF is selected, then following screen is displayed. On this
screen the spindle speed is specified in rotations per minute.
Return to the
Base screen.
CSS OFF
Gear Number
CSS ON
SET
The workflow is as follows.
(1) Input into the data area named S-SET the desired spindle speed,
then push INPUT (
) key.
(The message “KEY IN NUMERALS. (/MIN)” is displayed on
the bottom left side of the screen).
(2) Then push soft key SET.
(3) The specified value in rotations per minutes is displayed next to
string S-SET on the upper left side of the screen.
(The value displayed next to S represents the actual spindle speed
read from the CNC).
