4.16i/18i DATA SERVER FUNCTIONS IV. OPERATION B-63354EN/04

- -116

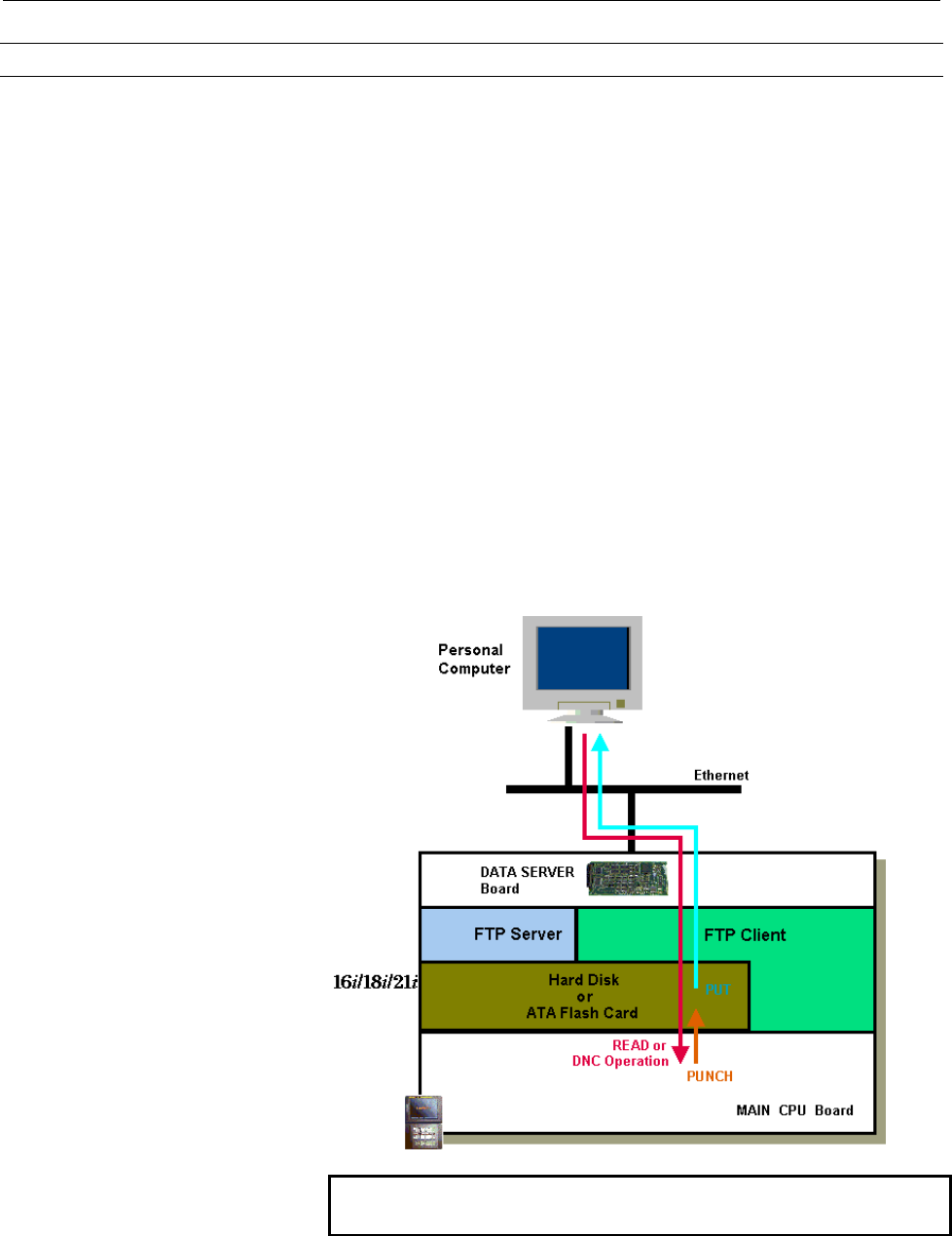

Buffer mode

In the buffer mode, an NC program that is larger than the capacity of

the data server board built-in hard disk can run more safely than in the

FTP mode. To be specific, if an NC program that is too large to fit on

the data server board built-in hard disk is to run in the buffer mode, the

NC program is previously divided to several files when it is on the host

computer (personal computer) built-in hard disk, and the resulting files

are listed. Each file is selected from the list and sent sequentially to the

data server board built-in hard disk for execution. In the FTP mode, a

communication failure can affect directly the machining controlled by

the CNC. In the buffer mode, to the contrary, the CNC operation can be

stopped between the files if a communication failure occurs, because

the data server board built-in hard disk functions as a buffer. When the

machine program is divided into several files, an operation such as tool

retracting can be inserted at the end of each of these files. Doing so

enables safer continuous operations.

See Subsection, 4.1.8, "Buffer Mode Specifications," for detailed

explanations about the buffer mode.

When an NC program is output in the buffer mode, the CNC behaves in

the same manner as in the storage mode.

NOTE

The Series 21i-A/B cannot use the buffer mode.
