i DATA SERVER FUNCTIONS IV. OPERATION B-63354EN/04
- -276

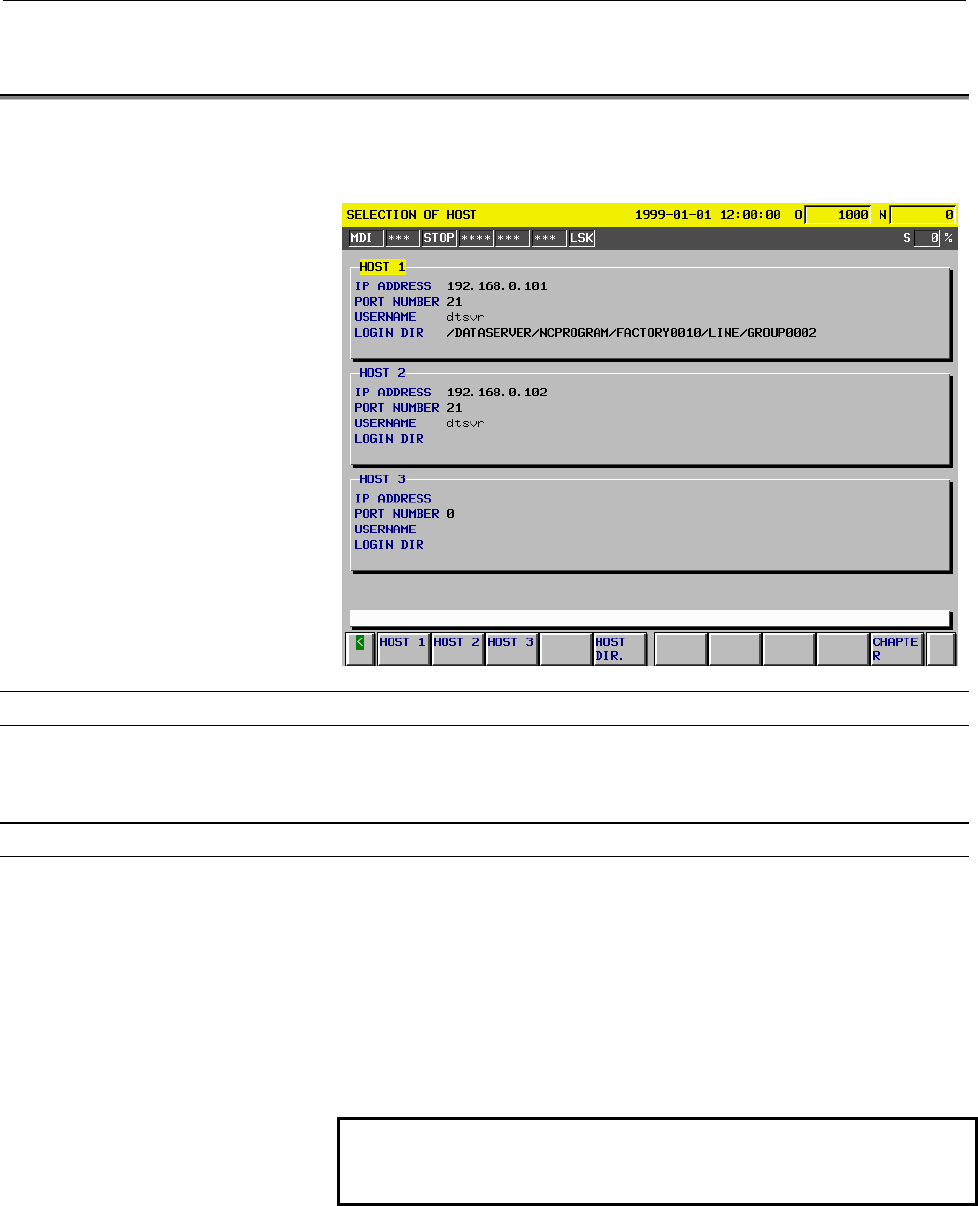

6.9 SELECTION OF HOST SCREEN
The Selection of Host screen is used to check or change the host
computer on which the FTP server is running.
Display items
•
••
• PORT NUMBER, IP ADDRESS, USERNAME, and LOGIN DIR
Display the values set on the Ethernet Parameter screen.
Operations
•
••
• HOST DIR.
Switches the current screen to the Host Directory screen.
•
••
• HOST 1
Changes the connection host to host 1.
•
••
• HOST 2
Changes the connection host to host 2.
•
••
• HOST 3
Changes the connection host to host 3.
NOTE
If the CNC software series is the F001 or F601, the
Selection of Host screen is not available.
