4.2.9 Executing Hard Disk File PUT
Using FTP, transfer files from the data server board built-in hard disk
to the host computer built-in hard disk.
Procedure
1 Display the Hard Disk File Dir screen.
2 Press soft key [(OPRT)].
3 Press the continuation menu key at the right end of the soft key
menu.
4 Press soft key [PUT].
5 Enter the following items using the MDI keys: number or name of
the file on the transfer source data server board built-in hard disk,
and name of the file on the transfer destination host computer
built-in hard disk.
[Input format]
Use one of the following:
<transfer-source-file-number>, <transfer-destination-file-
name> or
<transfer-source-file-name>, <transfer-destination-file-
name> or
<transfer-source-file-number> or
<transfer-source-file-name>
6 Press soft key [EXEC].
7 During PUT operation, "PUT" blinks in the lower-right part of the
screen.
8 To stop a PUT operation, press soft key [STOP].

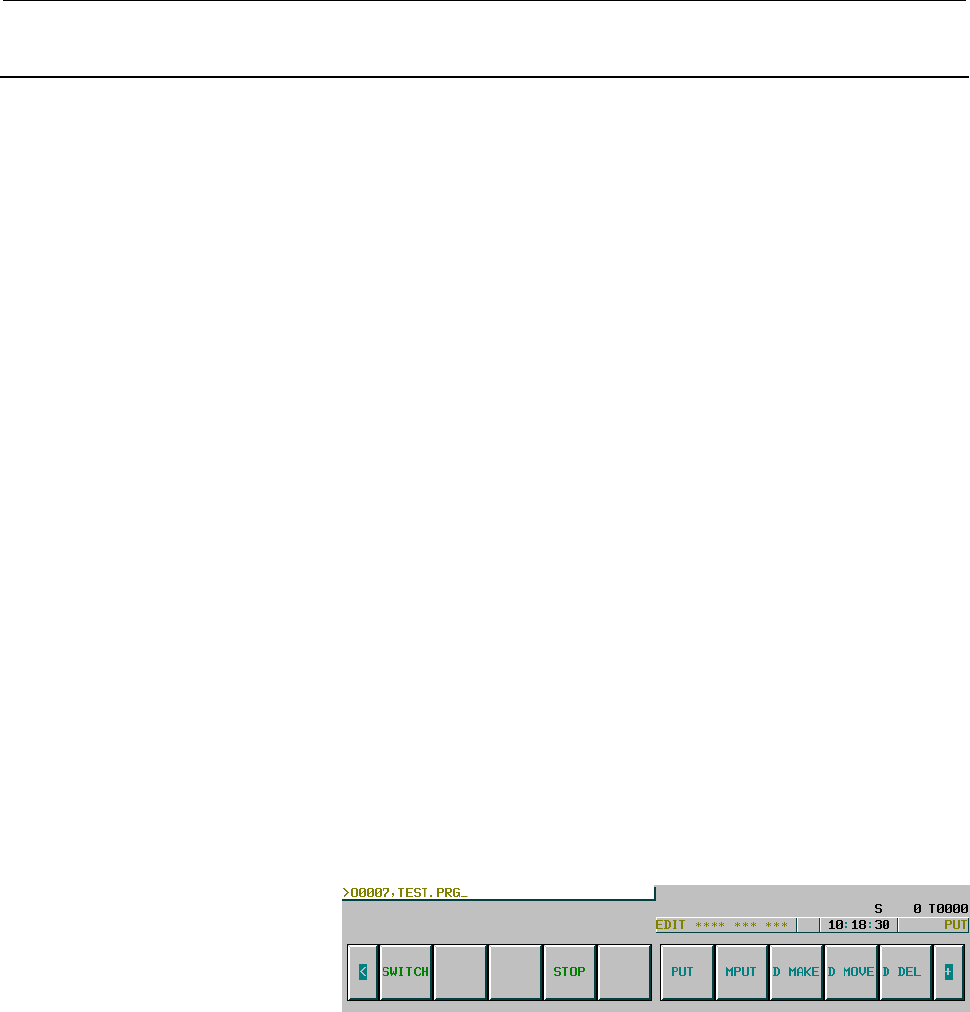

[Example]
Enter O0007,TEST.PRG to take file O0007, with file name
TEST.PRG, from the data server board built-in hard disk and put
in on the host computer built-in hard disk.
