A.TROUBLESHOOTING APPENDIX B-63354EN/04

- 376 -

• Checking IP addresses for duplication

IP addresses can be checked for duplication by the procedure

described below.

1) Disconnect the Ethernet cable from the CNC to isolate it

from the network.

2) Execute a ping command on another personal computer as

described in "Checking the communication path."

Since the CNC is disconnected from the network, no

response should be returned. If a response is returned, the IP

address is in use on another unit. Therefore, the IP address

cannot be used on the CNC from which the cable was

disconnected.

CAUTION

This procedure can be used to just check whether the

IP address duplicates any one already in use at that

time. It does not assure that the IP address is left

non-duplicated because a unit having the same IP

address may be turned on after the check or the

same address may be set later.

When setting an IP addressing, ask the network

manager about duplication.

• Checking for influence of electrical noise

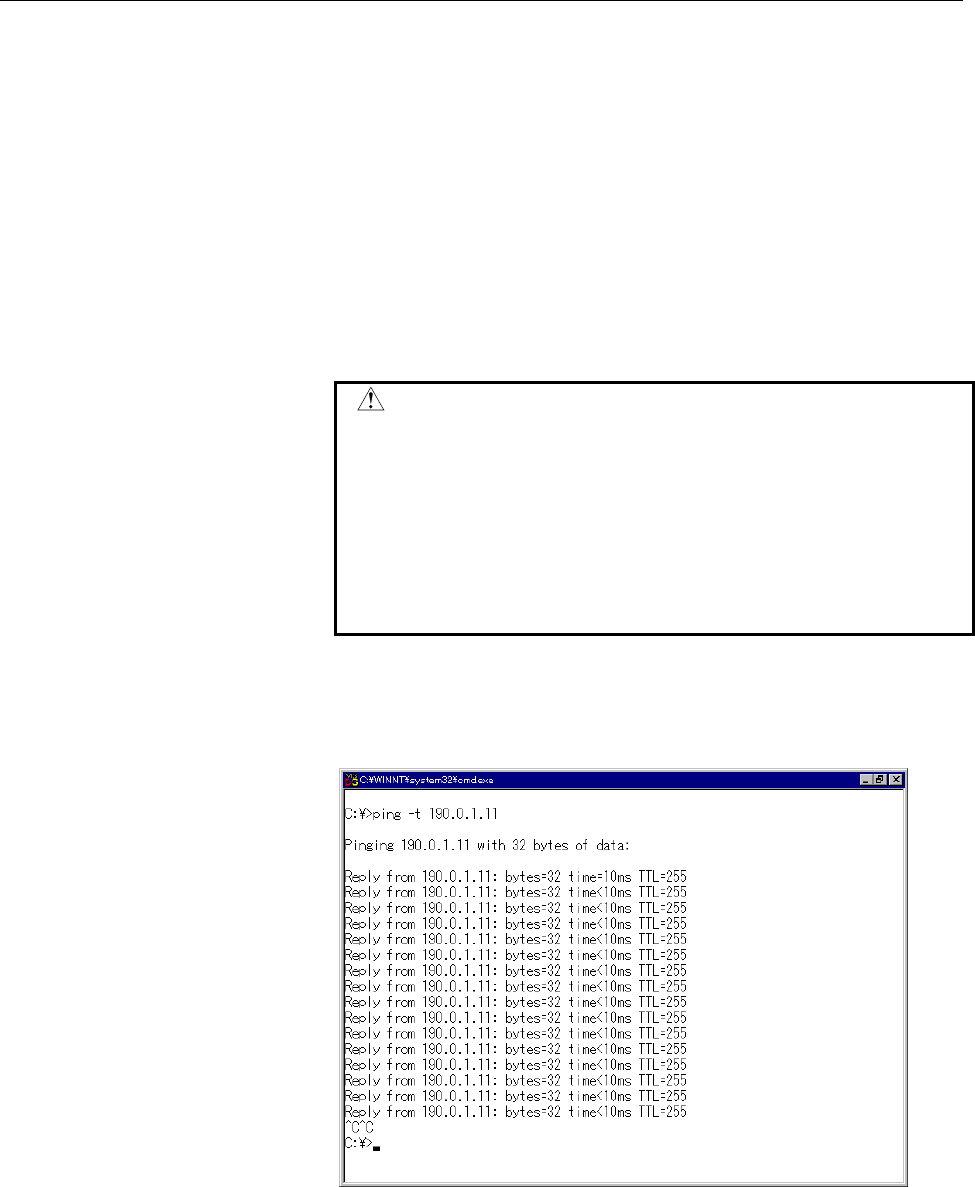

The "ping" command "-t" option is used for checking for the

influence of electrical noise. This option sends ping packets until

"Ctrl+C" is pressed.

1 About the influence of electrical noise from peripheral

machinery (devices)

1) Turn the machine in which the Ethernet board is

mounted ON to enable communications.
