Ethernet/Data Server Board Operators manual Page 176

Operators manual
4.16i/18i DATA SERVER FUNCTIONS IV. OPERATION B-63354EN/04
- -162

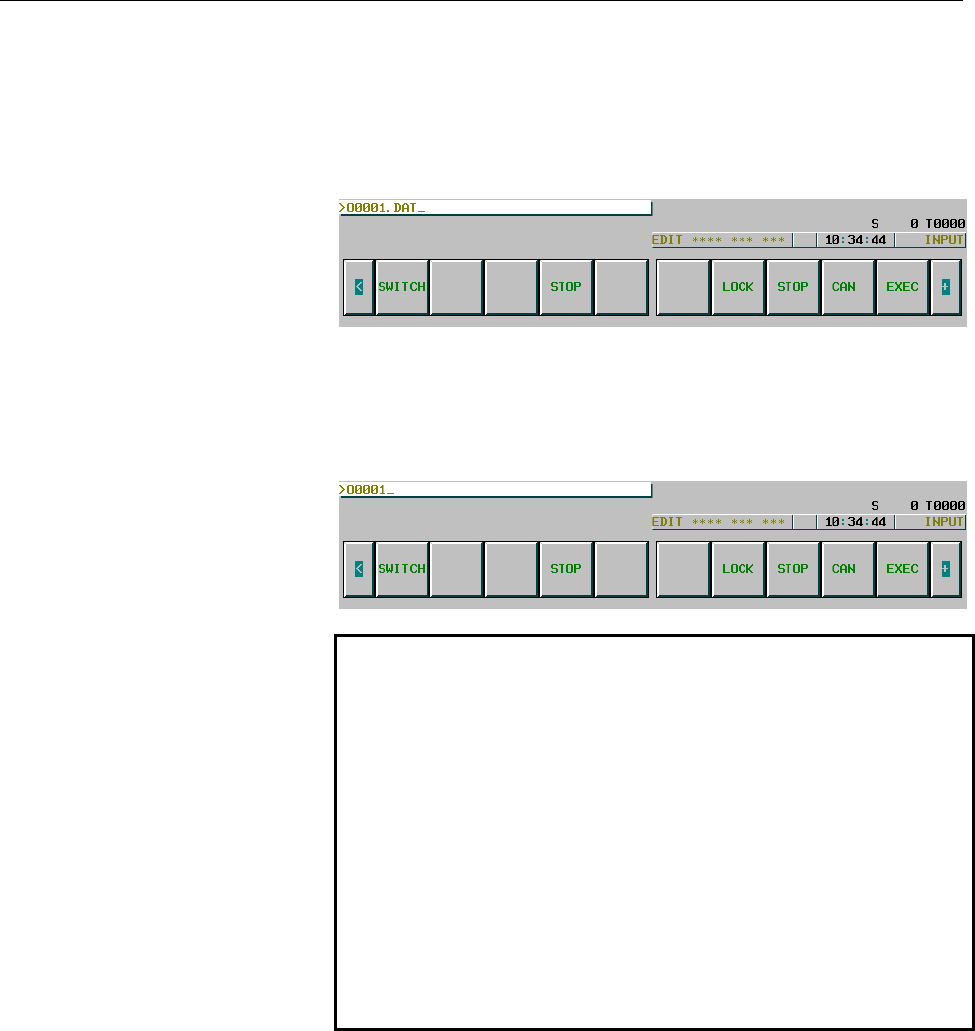

[Example 1]
Enter O0001.DAT to input file O0001.DAT from the data server
board built-in hard disk to the tape memory. However, the O
number to be input into tape memory depends on the O number
described in file O0001.DAT.
[Example 2]
Enter O0001 to input file O0001 from the data server board
built-in hard disk to the tape memory. However, the O number to
be input into tape memory is O0001.
NOTE
1 NC program input cannot be executed
simultaneously with NC program output, DNC
operation, and DNC operation by a subprogram call
(M198).
2 An O number used for input to the tape memory is
determined according to the following rules:
• If the file name is Oxxxx (xxxx: numeral), it is input
as Oxxxx.
• If the file name is other than Oxxxx, it is input with
the O number described in the file.
3 In the buffer mode, neither the Hard Disk File
Directory screen nor the Host File Directory screen
can be used for NC program input.
