4.16i/18i DATA SERVER FUNCTIONS IV. OPERATION B-63354EN/04
- -158
4.3.5 Executing Host File MGET
Using wild cards (*, ?) and FTP, transfer two or more files at one time
from the host computer built-in hard disk to the data server board
built-in hard disk.
Procedure
1 Display the Host File Dir screen.
2 Press soft key [(OPRT)].
3 Press the continuation menu key at the right end of the soft key
menu.
4 Press soft key [MGET].
5 Using the MDI keys, enter the names of the files (containing wild
cards) contained on the transfer source data server board built-in
hard disk.
[Input format]
<transfer-source-file-name>
6 Press soft key [EXEC].
7 During MGET operation, "M GET" blinks in the lower-right part
of the screen.
8 To stop MGET, press soft key [STOP].

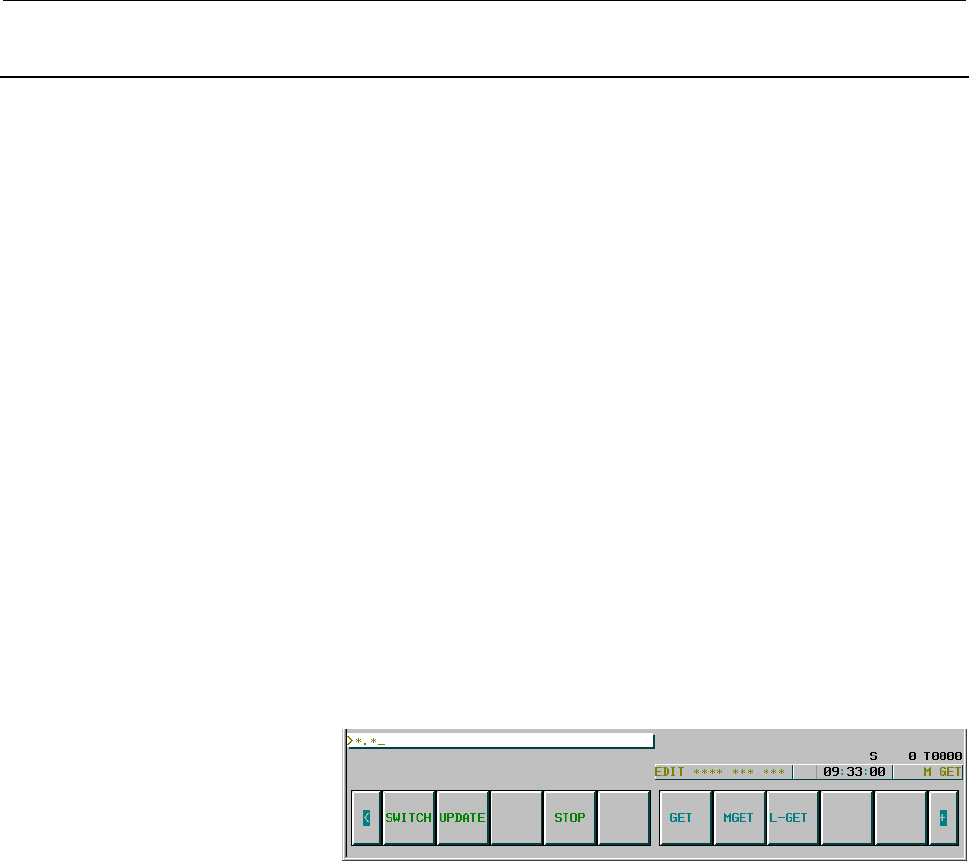

[Example]
Enter the file name as *.* to transfer all files from the host
computer built-in hard disk to the data server board built-in hard
disk.
