Ethernet/Data Server Board Operators manual Page 420

Operators manual
Power Mate
i
-MODEL D/H
Setting/punch operation for Ethernet Data
with DPL/MDI and DPL/MDI operation
package Specification
B-63354EN/04-01
EDIT DATE DESI
DESCRIPTION
3 /12
CUST.
SHEET
TITLE
DRAW.NO.
1. General
This function provides the way to set Ethernet parameters and to check error information
when DPL/MDI or DPL/MDI operation package is used in Power Mate i
-MODEL D/H
(hereafter abbreviated to ”Power Mate i ”).
By this function, the following operations are possible.
1) Ethernet parameters, such as IP addresses and so on, can be set .
2) Error information can be punched out in text form via RS-232-C.
Information should be confirmed with a personal computer or so on.
NOTE
This function can be used only with DPL/MDI or DPL/MDI operation package
and cannot be used with any other display devices.
When LCD/MDI is used, it is possible to set Ethernet parameters and to check
error information without this function.

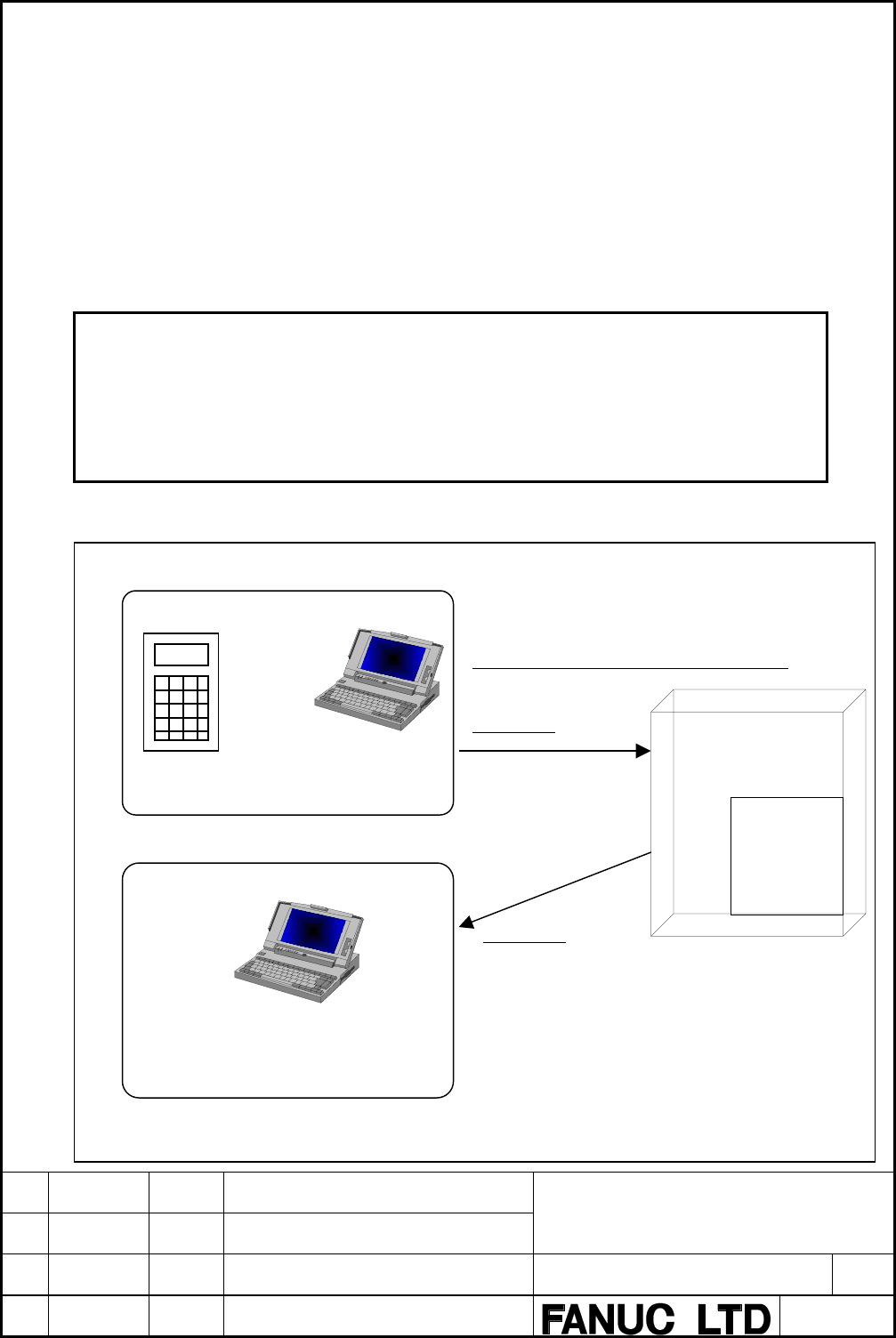

Power Mate i
Ethernet
board
RS-232-C
Parameter setting
Fi
g
.1 Exam
p
le of Connection
Error information
output
DPL/MDI adapter + DPL/MDI cable
or
RS-232-C
Personal computer(PC),
handy file and so on.
(a external equipment)
or
DPL/MDI
operation package
DPL/MDI
Previous page
Next page
