Ethernet/Data Server Board Operators manual Page 89

Operators manual
B-63354EN/04 III. SETTING 4.DATA SERVER FUNCTIONS FOR THE 16i/18i/21i
- -75

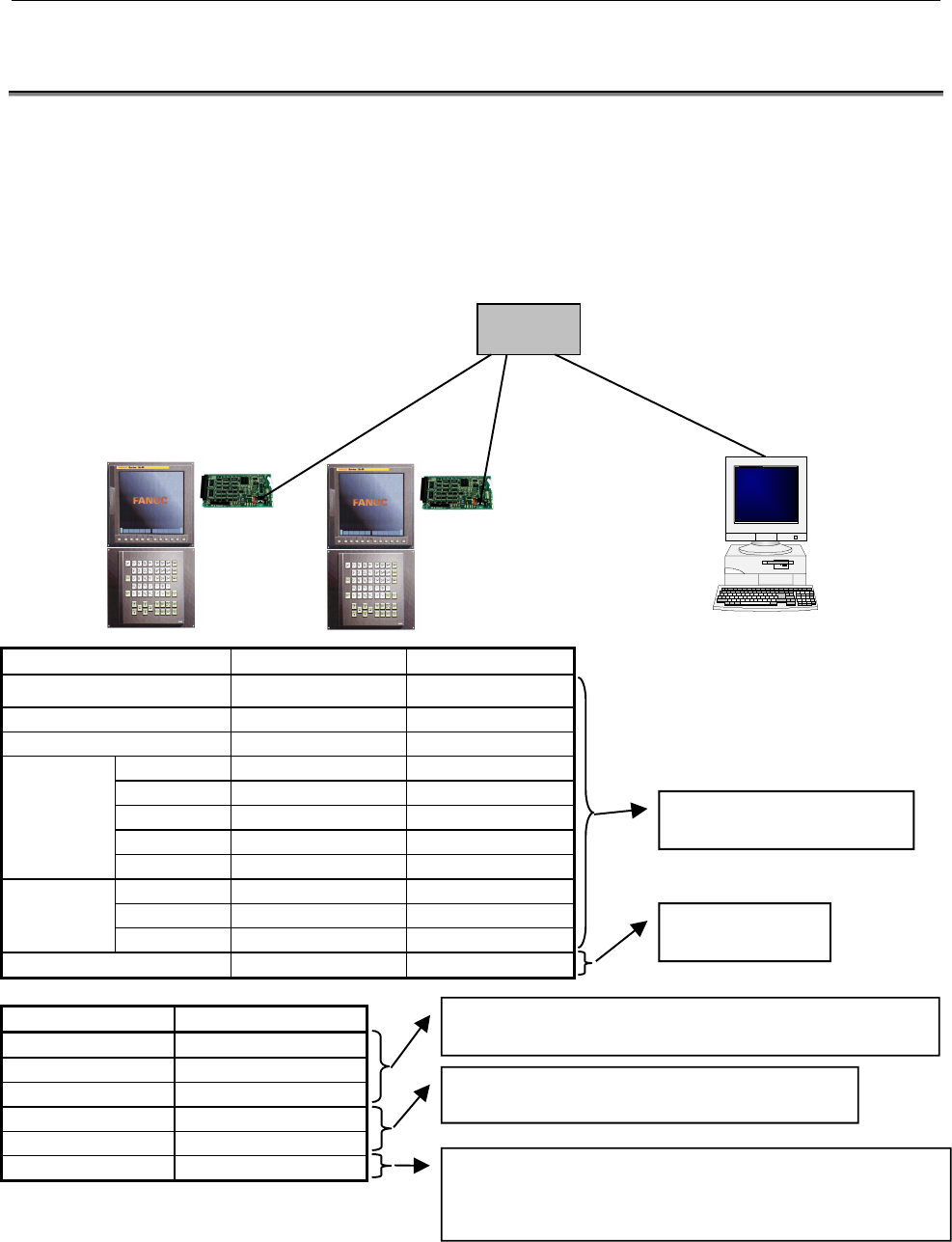

4.4 CONFIGURING A SMALL-SCALE NETWORK
The following shows an example of the minimum settings needed to
use the data server functions on a small-scale network.
These settings allow a personal computer to be connected to one CNC
by the data server functions.
l The FTP client and server run on personal computer No.1.
l The FTP client and server run on CNCs No.1 and No.2.
CNC No.1 CNC No.2
IP address 192.168.0.1 192.168.0.2
Subnet mask 255.255.255.0 255.255.255.0
Router IP address None None
Port No. 21 21
IP address 192.168.0.101 192.168.0.101
User name dtsvr dtsvr
Password dtsvr dtsvr
Connected
host 1
Login DIR None None
User name dtsvr dtsvr
Password dtsvr dtsvr
FTP server
Login DIR None None
Parameter No.20 5 5
Personal computer No.1
IP address 192.168.0.101
Subnet mask 255.255.255.0
Default gateway None
User name dtsvr
Password dtsvr
Login DIR Default
Personal computer
Personal computerPersonal computer
Personal computer
No.1
No.1No.1
No.1
CNC No.2
CNC No.2CNC No.2
CNC No.2
CNC No.1
CNC No.1CNC No.1
CNC No.1
10BASE-T
10BASE-T10BASE-T
10BASE-T
HUB
HUBHUB
HUB
Set these items in "Microsoft TCP/IP Property" on the
p
ersonal com
p
uter
(
WindowsNT
)
.
Set these items in "User Manager" on the personal
com
p
uter
(
WindowsNT
)
.
Set this item in "Internet Service Manager" on the personal computer
(WindowsNT).
For Peer Web Services
Set these items on the
"Ethernet Parameter" screen.
Set this item on the
"Parameter"
