i DATA SERVER FUNCTIONS IV. OPERATION B-63354EN/04

- -280

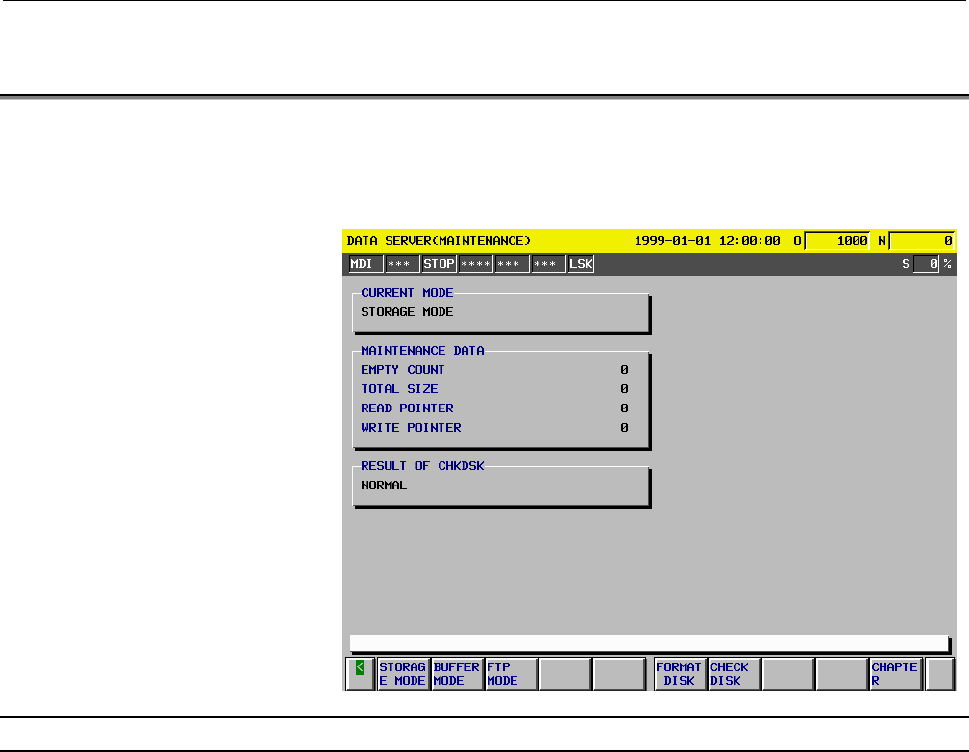

6.11 DATA SERVER (MAINTENANCE) SCREEN

The Data Server (Maintenance) screen is used to format (initialize) the

data server board built-in hard disk, check for hard disk errors, switch

data server modes, or display error examination data.

Display items

•

••

• CURRENT MODE, BUFFER MODE, and FTP MODE

Displays the current data server mode.

•

••

• EMPTY COUNT

Displays the number of times that buffer data became empty during

transfer of an NC program from the data server board to the CNC. This

item is initialized to 0 at power-on. Subsequently, this item is

incremented whenever the conditions are satisfied. When DNC

operation or DNC operation by a subprogram call (M198) is being

performed, this item may be incremented. This indicates that data

supply from the data server board to the CNC is insufficient.

•

••

• TOTAL SIZE

Total byte count when a single NC program is transferred from the data

server board to the CNC

•

••

• READ POINTER and WRITE POINTER

Pointers used to manage the internal buffer for supplying an NC

program between the data server board and CNC
