3.INSTALLATION V. CONNECTION B-63354EN/04
- -320
3.3.3 Installing an ATA Flash Card
This section need be referenced only when the data server board is
used.
You can obtain an ATA flash card to be used as the external memory
unit of the data server board from the machine tool builder. The table
below lists the ATA flash cards that can be used.
Manufacturer Product number Capacity
HB288096A5 96MB
HB288160A5 160MB
HB288320A5 320MB
HB288640A5 640MB
Hitachi, Ltd.
HB2881000A5 1GB
SDP3B-220-390 220MB
SDP3B-280-390 280MB
SDP3B-350-390 350MB
San Disk
SDP3B-440-390 440MB

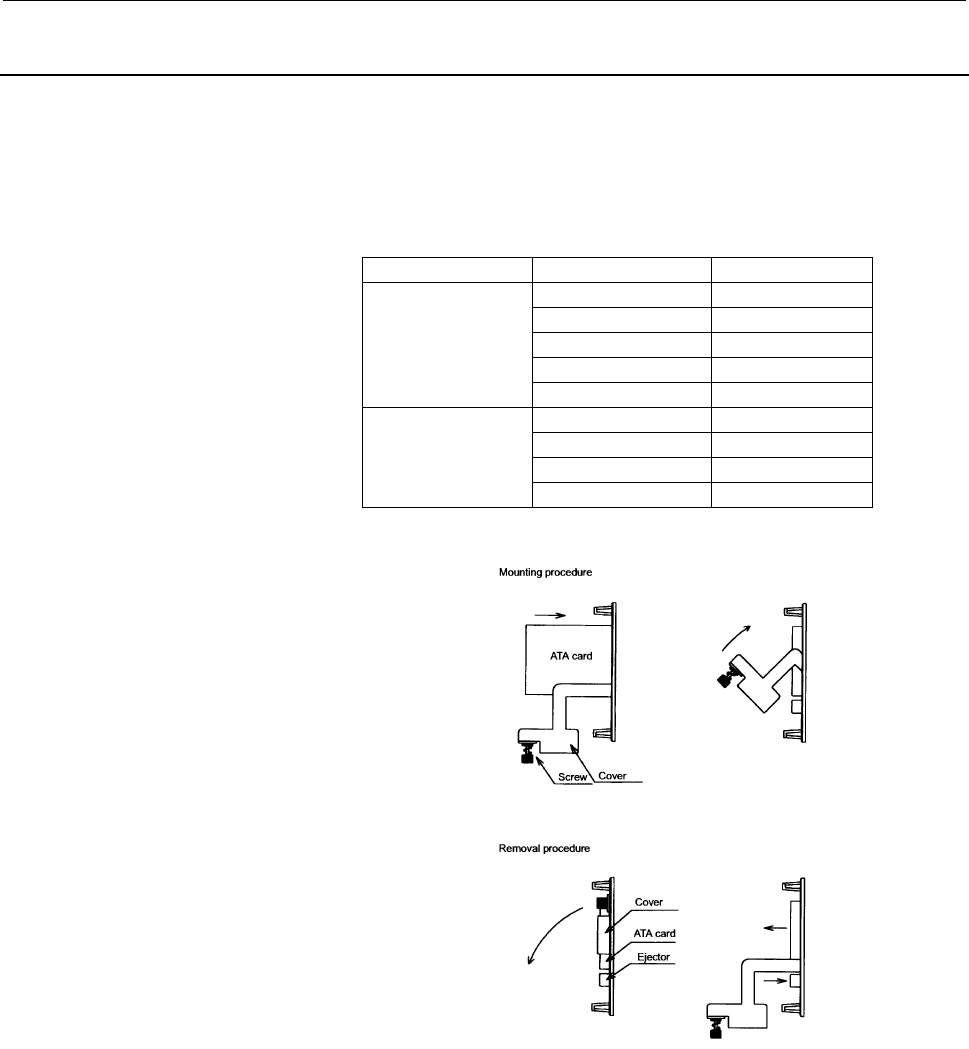

Mounting and removing the ATA card
Mounting procedure
1. Remove the screw and pull the cover downward.
2. Insert the ATA card firmly as far as it can go.
3 Press the cover upward. Tighten the screw while pressing it.
Removal procedure
1. Remove the screw and pull the cover downward.
2. Press the ejector to pull out the card.
