B-63354EN/04 III. SETTING 4.DATA SERVER FUNCTIONS FOR THE 16i/18i/21i
- -71
Entering special characters
The following describes the method for entering special characters. In
the following explanation, the string "PROG$" is entered as an
example.
Procedure
1 Place the CNC in MDI mode.

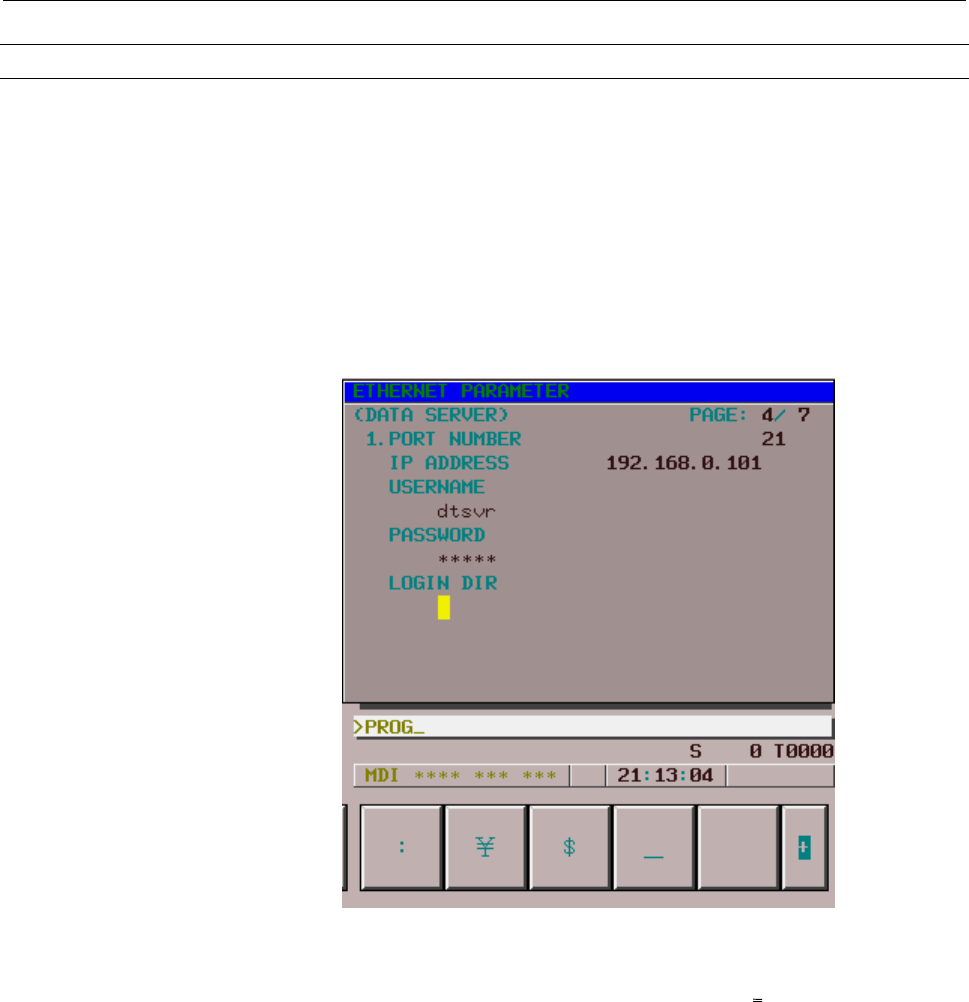

2 Display the "Ethernet Parameter" screen.
3 Position the cursor to "LOGIN DIR" using the cursor movement
keys.
4 Enter "PROG" using the MDI keys and press soft key [CONT] at
the bottom right of the soft key menu.
[Reference]
Of those characters that cannot be entered using the MDI keys, those
characters likely to be used frequently ([:], [
Y
], [$], and [_]) can be
entered. To enter a special character other than these, set the ASCII
code of that special character for any of parameters Nos. 931 to 935.
For details, refer to section 4.3 “ Parameters “.
