Manual Guide (for Milling) Operators manual Page 128

Operators manual

Page of 332

/ 332

1. HOLE MACHINING TYPES OF CYCLE MOTIONS B-63424EN/03

-116-

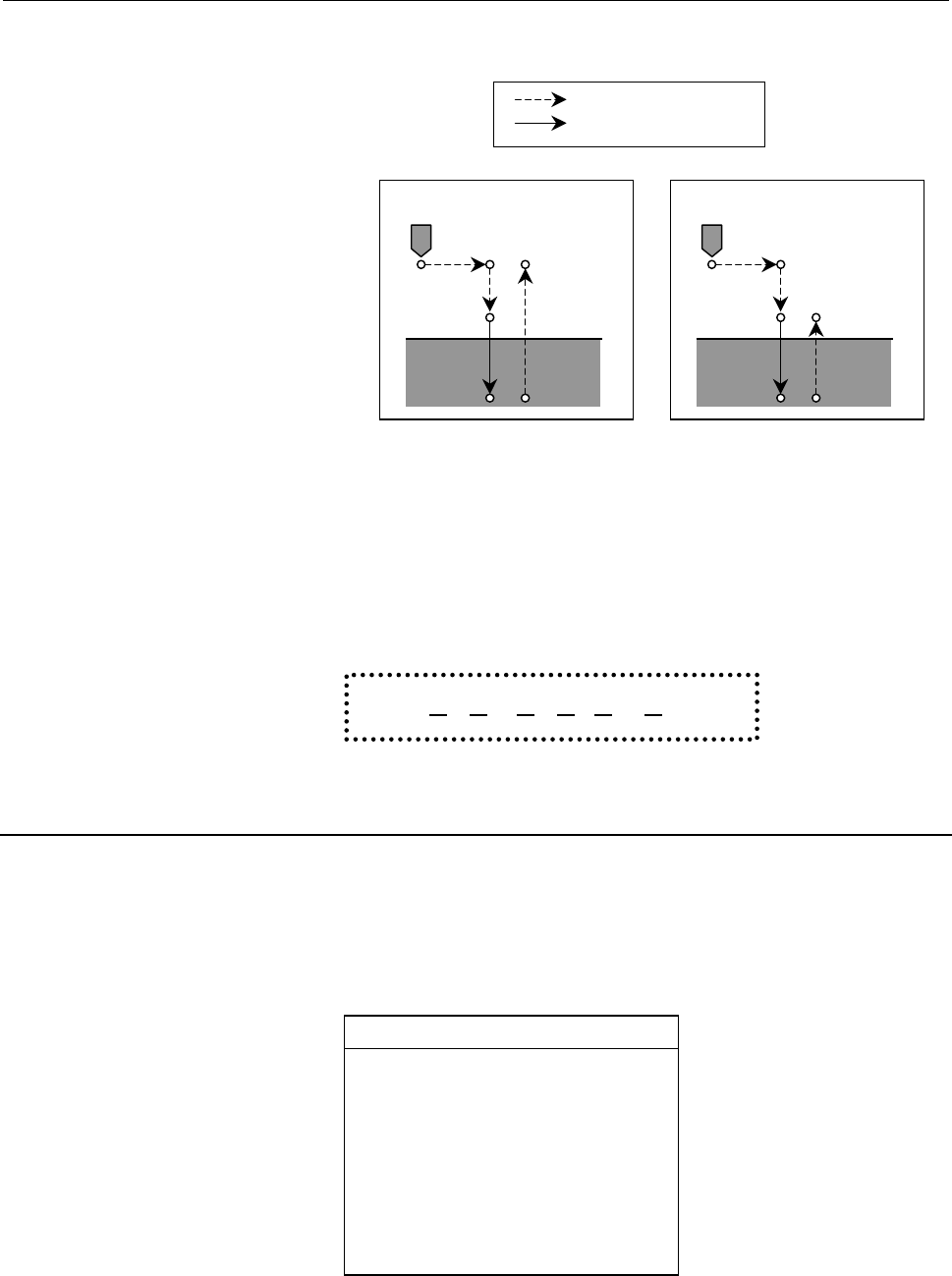

MOVEMENTS :

After positioning along the X and Y axes, rapid traverse is

performed to point R. Drilling is performed from point R to point

The tool is then retracted in rapid traverse.

After inputting the necessary data, by pushing INSERT, pop-up

window is closed and inputted data are displayed in a program window

as the following ISO code program.

1.1.2 Drilling Cycle (With Dwell) (G82)

This cycle is used for normal drilling. Cutting feed is performed to the

bottom of the hole. At the bottom, a dwell is performed, then the tool is

retracted in rapid traverse.

This cycle is used to drill holes more accurately with respect to depth.

By pushing [DWELL], the following items are displayed.

Rapid traverse

Feed traverse

G81 (G98) G81 (G99)

Initial level

Point Z

Point R

Point Z

Point R level

G81 (X Y ) Z R F (K ) ;

MACHINE PATTERN G= DWELL

Z POINT Z=

R POINT R=

DWELL TIME P=

FEED RATE F=

DRILLING CYCLE 1 / 1
