Manual Guide (for Milling) Operators manual Page 55

Operators manual
B-63424EN/03 OPERATION
3. PROGRAMMING OPERATIONS
-43-
After inputting the necessary data, by pushing INSERT, a pop-up
windows is closed and inputted data are displayed in a program
window as the following ISO code program.
NOTE
After calculating intersections, the address only is
displayed in the case that the data is not defined.

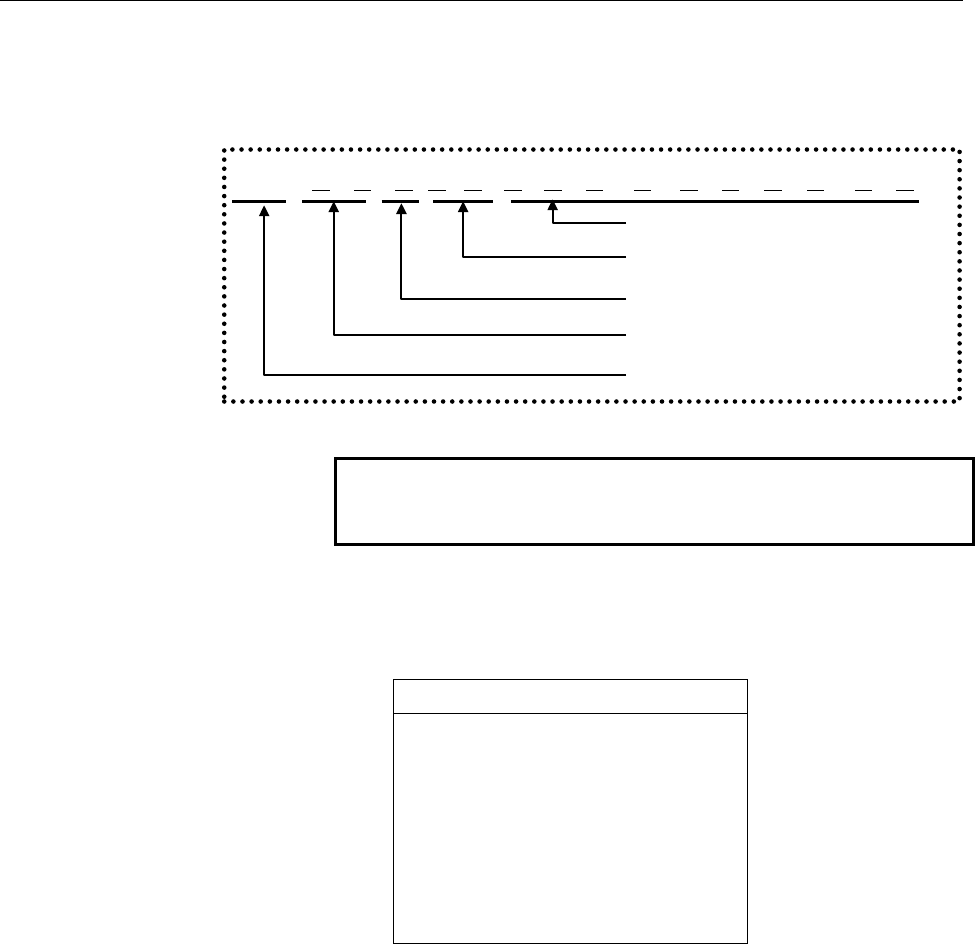

4) CCW ARC
By pushing [CCW ARC], the following pop-up window is
displayed.
RADIUS
: Input the radius of the arc.
CENTER
POINT X, Y
: Input the coordinate (X, Y) of the center of the
arc.
END
POINT X, Y
: Input the coordinate (X, Y) of the end point of
the arc.
ANGLE
: Input the center angle of the arc.
G102 X Y R I J B E V W M N K Q (L A ) ;
In
p
utted data
Center
p
oint
(
X
,
Y
)
Radius of arc
End
p
oint
(
X
,
Y
)
G code for contour CW arc
RADIUS E=
CENTER POINT X V=
CENTER POINT Y W=
END POINT X M=
END POINT Y N=
ANGLE K=
CCW ARC 1 / 1
