B-63424EN/03 OPERATION

3. PROGRAMMING OPERATIONS

-61-

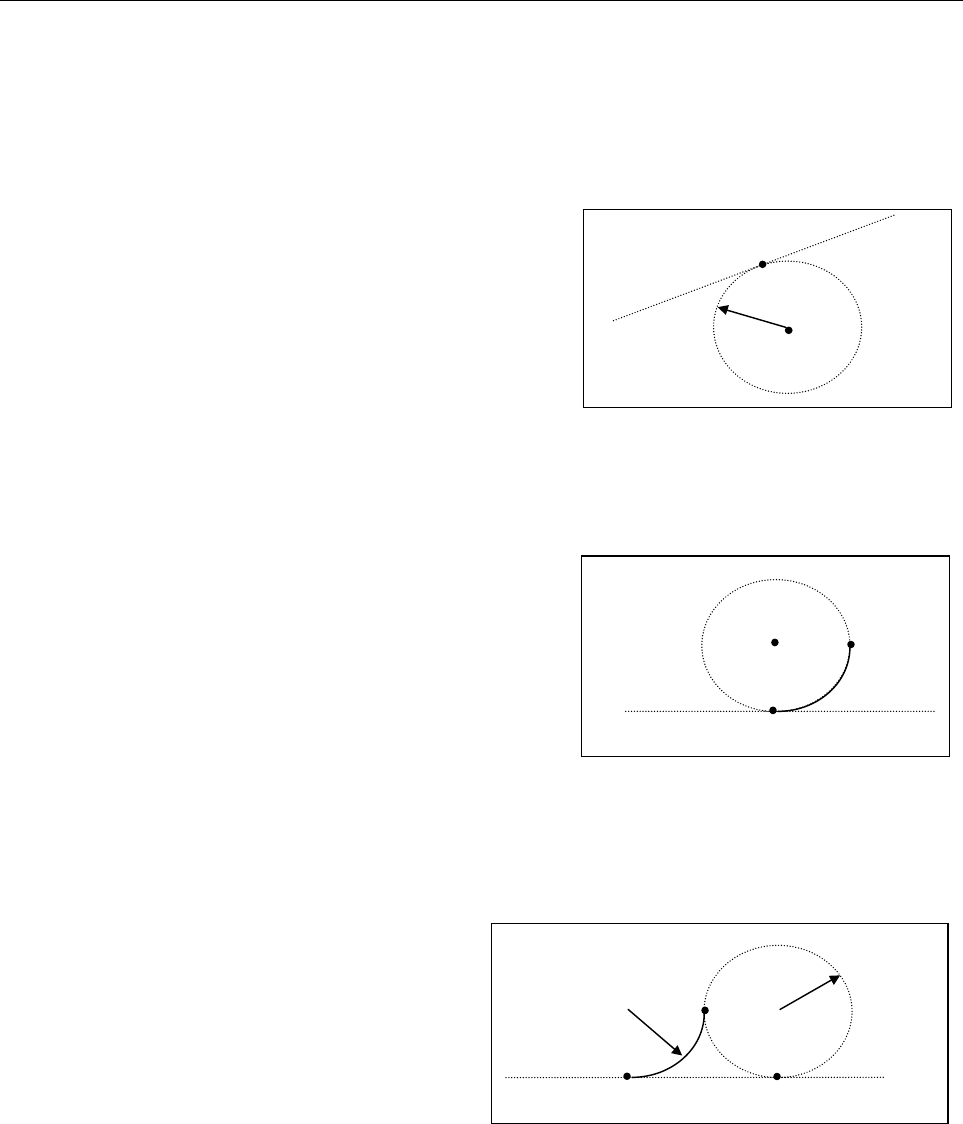

d) When the preceding figure block is pending (for which the start

point has been determined), and TANGNT is specified

i) R, I and K are inputted

-> The tangential point is calculated, and this arc will be

pending.

ii) X, Y, I and K are inputted

-> The tangential point is calculated, and this arc will be

determined.

iii) R and X, Y are inputted

-> The tangential selection request window is displayed.

Input number data 1 or 2, but in this case, select a

tangential point to define a minor arc.

Tangential point

Minor arc

Major arc

End point

(X,Y)

Tangential point

Center(I,K)

Center (I,K)

End point

(X,Y)

Tangential point
