Manual Guide (for Milling) Operators manual Page 90

Operators manual
4. GUIDANCE CUTTING OPERATIONS
OPERATION B-63424EN/03
-78-
4.3.7 Operation of Teach-in a Cutting Block
As described in former description, during Teach-in mode, an operator
can cut a work-piece by using a normal handwheel or guidance
handwheel.
After cutting a work-piece toward a proper position, by pushing [CUT],
an operator can teach-in this tool motion into CNC as a cutting block
for later playback.

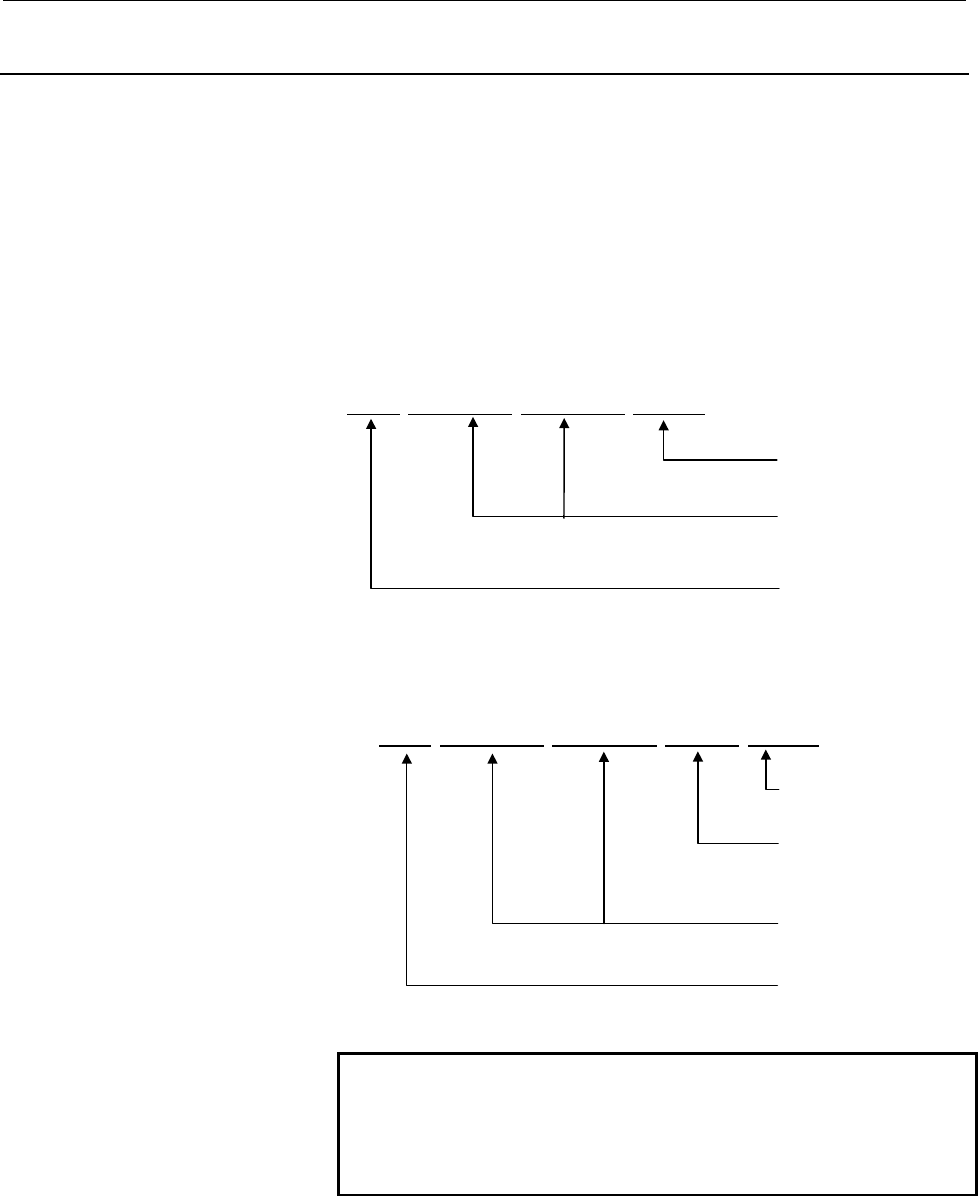

This taught-in block is displayed in a figure data window as following
sample.
Sample of Linear Cutting)
Sample of Circular Cutting)
NOTE
In the case that Along Circular Cutting block is over
an angle of 180 degrees, please make sure to divide
the angle within 180 degrees before Teach-in
operation.
G01 X78.010 Y10.053 F0.25 ;
Feedrate inputted in
common data window or
recorded b
y
[
SAVE
]
Work coordinate of
actual position
G-code of linear
cutting
G02 X78.010 Y10.053 R20.0 F0.25 ;
Radius of cutting
arc path
Work coordinate of
actual position
G-code of circular
cutting
Feedrate inputted in
common data window or
recorded b
y
[
SAVE
]
