B-63424EN/03 TYPES OF CYCLE MOTIONS 3. FACING
-163-

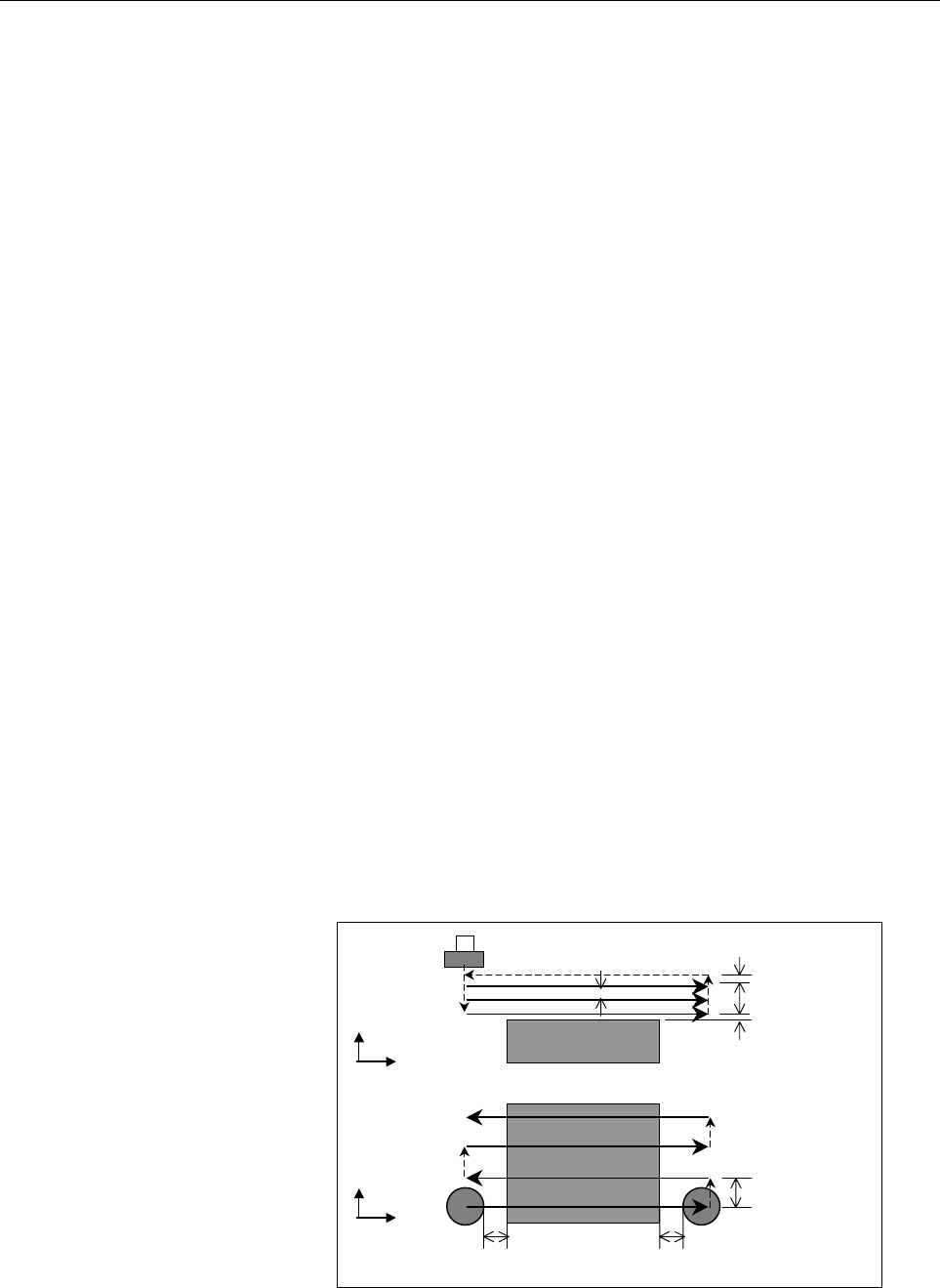

a) In the case of rough cutting
1. Rapid traverse up to the starting point (A).
2. Rapid traverse along the Z axis up to the point equal to (END
POINT Z + REMOVAL DEPTH – REMOVAL PITCH)
3. Cutting feed to the opposite side (B) of the starting point.
4. Rise along the Z axis in rapid traverse by an amount of
(CLEARANCE + REMOVAL PITCH).
5. Rapid traverse along the X-Y axis up to the next starting
point (C).
6. Descent along the Z axis in rapid traverse by an amount of
(CLEARANCE + REMOVAL PITCH).
7. 3.- 6. is repeated up to the ending point (D).
8. Rise along the Z axis in rapid traverse by an amount of
(CLEARANCE + REMOVAL PITCH).
9. Repeat steps 1. to 8. advancing in the –Z direction, pitch by
pitch, up to the point (END POINT Z + FINISHING ALW.).
10. Rise along the Z axis up to the point (END POINT Z +
CLEARANCE).
b) In the case of finish cutting
1. Rapid traverse up to the starting point (A).
2. Rapid traverse along the Z axis up to the point equal to END
POINT Z.
3. Cutting feed to the opposite side (B) of the starting point.
4. Rise along the Z axis in rapid traverse by an amount of
CLEARANCE.
5. Rapid traverse along the X-Y axis up to the next starting
point (B).
6. Descent along the Z axis in rapid traverse up to END POINT
Z.
7. 3.- 6. is repeated up to the ending point (D).
8. Rise along the Z axis in rapid traverse by an amount of
CLEARANCE.
a) In the case of rough cutting
1. Rapid traverse up to the starting point (A).
•
••
•
Bi-direction
Pitch
X
X
Z
Y
Clearance
Depth
Finish ALW.
Cutting Width
Approach Gap
Escape Gap
C
D
B
A
