Manual Guide (for Milling) Operators manual Page 263

Operators manual

Page of 332

/ 332

B-63424EN/03

TYPES OF CYCLE MOTIONS

8. MEASURING CYCLES

(OPTIONAL FUNCYION)

-251-

MOVEMENTS

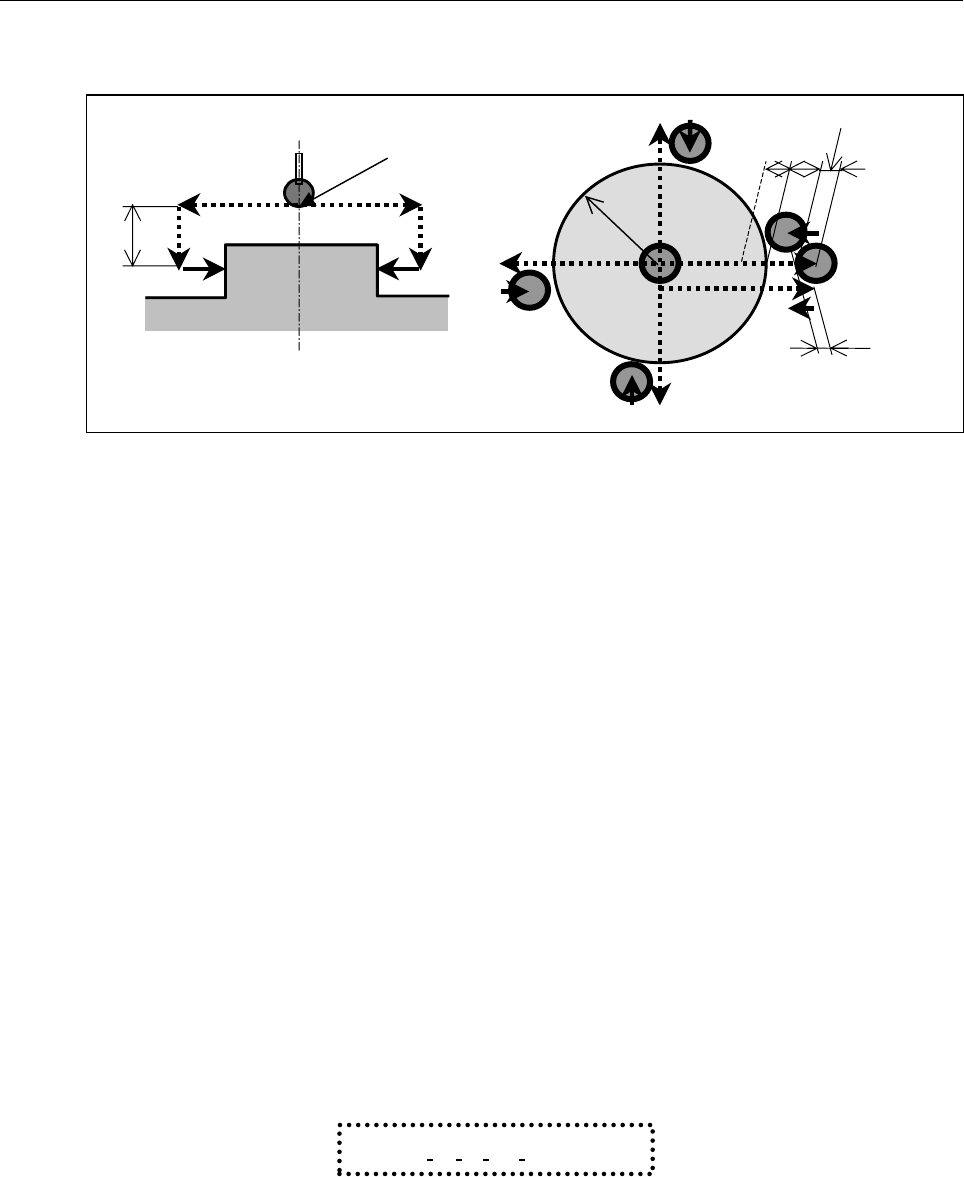

: The movement on the measurement is as follows

ββ

Measure

Measuring

start

oint

Stylus radius

γγ

Measure

1. At first, please move the probe right over the center of outside

circle.

2. When this cycle is executed, the probe moves the distance (R + α

+ stylus radius) along the X axis with feed-rate (fa). After that, it

moves the distance (Z) along –Z axis with feed-rate (fa), and does

a measurement from the point within the distance (R - γ + stylus

radius) with the feed-rate (f). → First measurement

3. Next, the probe returns the distance (ε) and returns the measuring

start point with rapid traverse.

4. The probe does a measurement as the same one in the direction –

X axis and ±Y axis.

5. After the first measurement, the probe moves to the position (1

measuring position - β) along the X axis with feed-rate (fa) and

does a measurement from the position within the distance (β + γ)

with the feed-rate (F). → Second measurement

6. Next, the probe returns the distance (ε) and returns the measuring

start point with rapid traverse

7. The probe does a measurement as the same one in the direction –

X axis and ±Y axis.

After inputting the necessary data, by pushing INSERT, a pop-up

windows is closed and inputted data are displayed in a program

window as the following ISO code program.

G183 Z R F W ;
